Rigol DS1074B User Manual

RIGOL
User’s Guide for DS1000B series
2-50

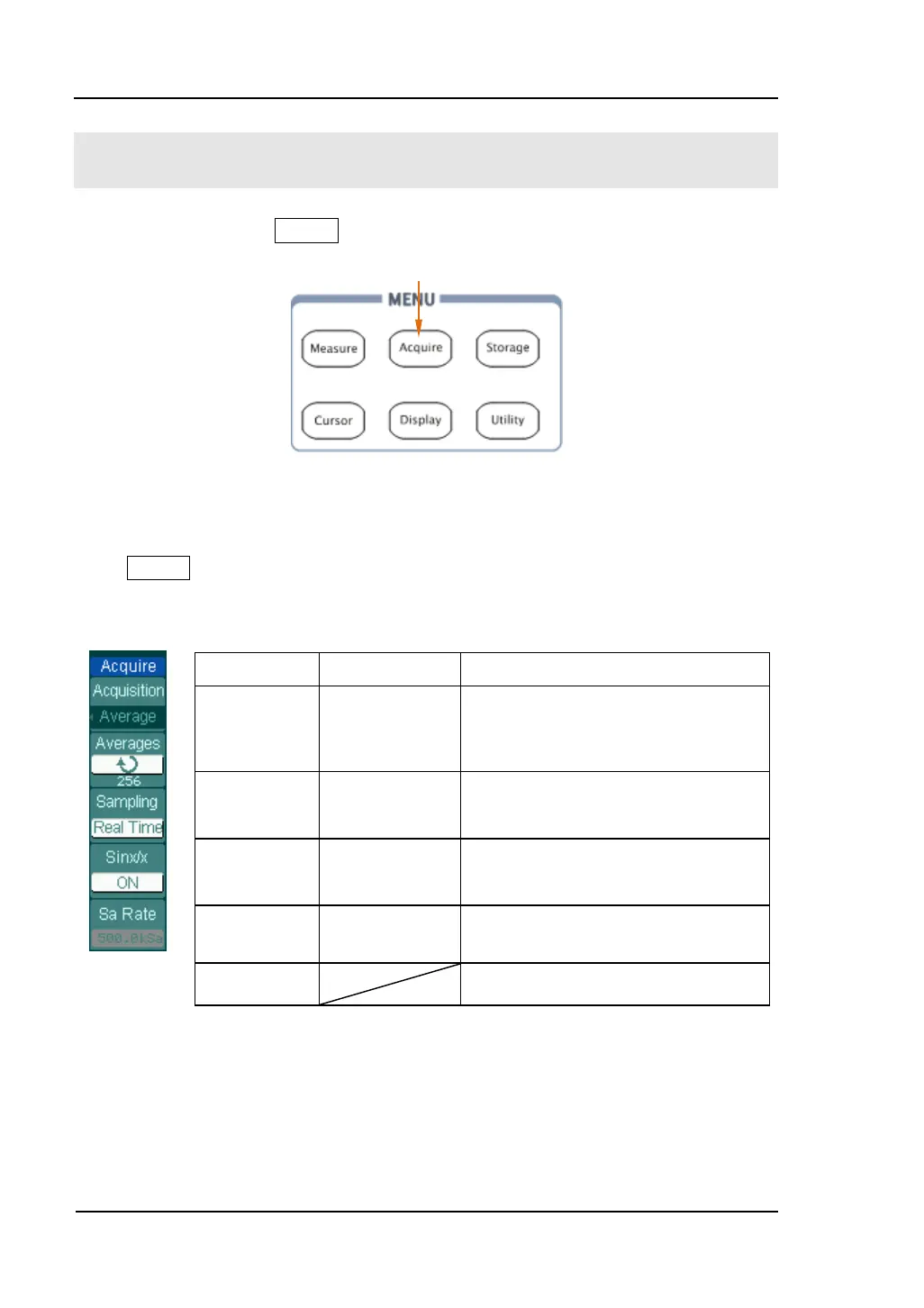

To Set up the Sampling System
Figure 2-59
shows, the Acquire button at the MENU of the front panel.
Figure 2-59
The Acquire setup button
Press Acquire button, the interface menu shows as follows:
Figure 2-60 Table 2-37 The Acquire menu
Menu Settings Comments
Acquisition
Normal
Average
Peak Detect
Normal Acquisition mode.
Average Acquisition mode.
Peak Detect Acquisition mode.
Averages
[1]
2 to 256
Set average times by N-th power
of 2 from 2 to 256.
Sampling
Real-Time
Equ-Time
Real-time sampling mode.
Equivalent sampling mode.
Sinx/x
[2]
ON
OFF
Set the interpolation as Sinx/x.
Set the interpolation as linearity.
Sa Rate
[3]
Display sampling rate.
NOTES:
[1] This function appears when acquisition as “Average”.
[2] This function appears when sampling as “Real-Time”.
[3] Sample rate channels will be displayed respectively in alternative trigger mode.
Acquire Setup Button
