Chapter 2 Performance Verification Test RIGOL
RSA3000 Performance Verification Guide
2-5

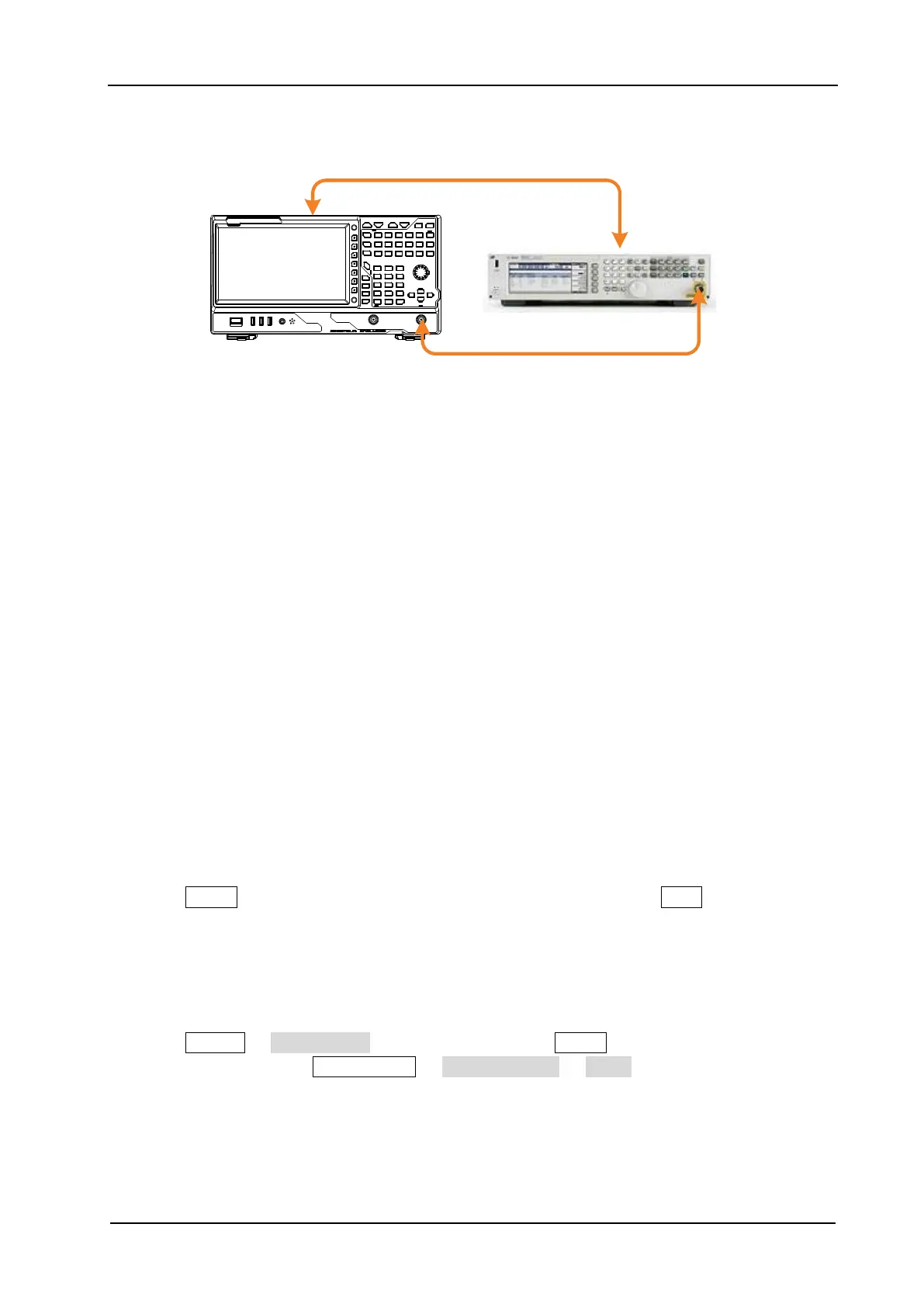

Test Connection Diagram
RSA3000
Dual-N Cable
Dual-BNC Cable
RF IN
RF OUT
10MHz OUT
10MHz IN
Signal Generator
Figure 2-2 SSB Phase Noise Test Connection Diagram
Test Procedures
1. Synchronize the spectrum analyzer and signal generator.
2. Connect the output terminal of the signal generator with the RF input terminal of the spectrum
analyzer, as shown in Figure 2-2.
3. Set the signal generator to output a sine waveform with 500 MHz frequency and 0 dBm
amplitude.
4. Configure the spectrum analyzer (take 10 kHz offset as an example):
a) Set the center frequency to 500 MHz.
b) Set the span to 50 kHz.
c) Set the input attenuation to 10 dB; and set the reference level to 0 dBm.
d) Set the resolution bandwidth to 1 kHz, and set the video bandwidth to 30 Hz.
e) Set the trace type to Clear Write.
f) Set the detector type to Pos Peak.
g) Set the sweep time to 10 s.
5. Press Single and wait for the instrument to finish a sweep. Then press Peak to find the
maximum peak.
6. Set the marker mode to Delta; set the detector type to Average (RMS); set the trace type to
Average; set the average number to 5.
7. Press Marker → Marker Freq, and input 10 kHz. Press Single and wait for the instrument to
finish the sweep. Press Marker Func → Band Function → Noise, read the current
measurement results, and record the results.
8. Compare the measurement result with the specification.
