Rigol RSA3000 Series Performance Verification Guide

RIGOL Chapter 2 Performance Verification Test
2-20 RSA3000 Performance Verification Guide
Test Connection Diagram
Signal Generator B
Signal Generator A
(a)
(b)
REF IN
REF OUT
Dual-BNC Cable
RF OUT
RF OUT
Dual-N Cable
Dual-N Cable
Power
Divider
Power Meter
Power Sensor
Power Meter
Connecting
Cable
Signal Generator B
Signal Generator A
REF IN
REF OUT
Dual-BNC Cable
RF OUT
RF OUT
Dual-N Cable
Dual-N Cable
Power
Divider
Dual-N Cable
RSA3000
RF IN

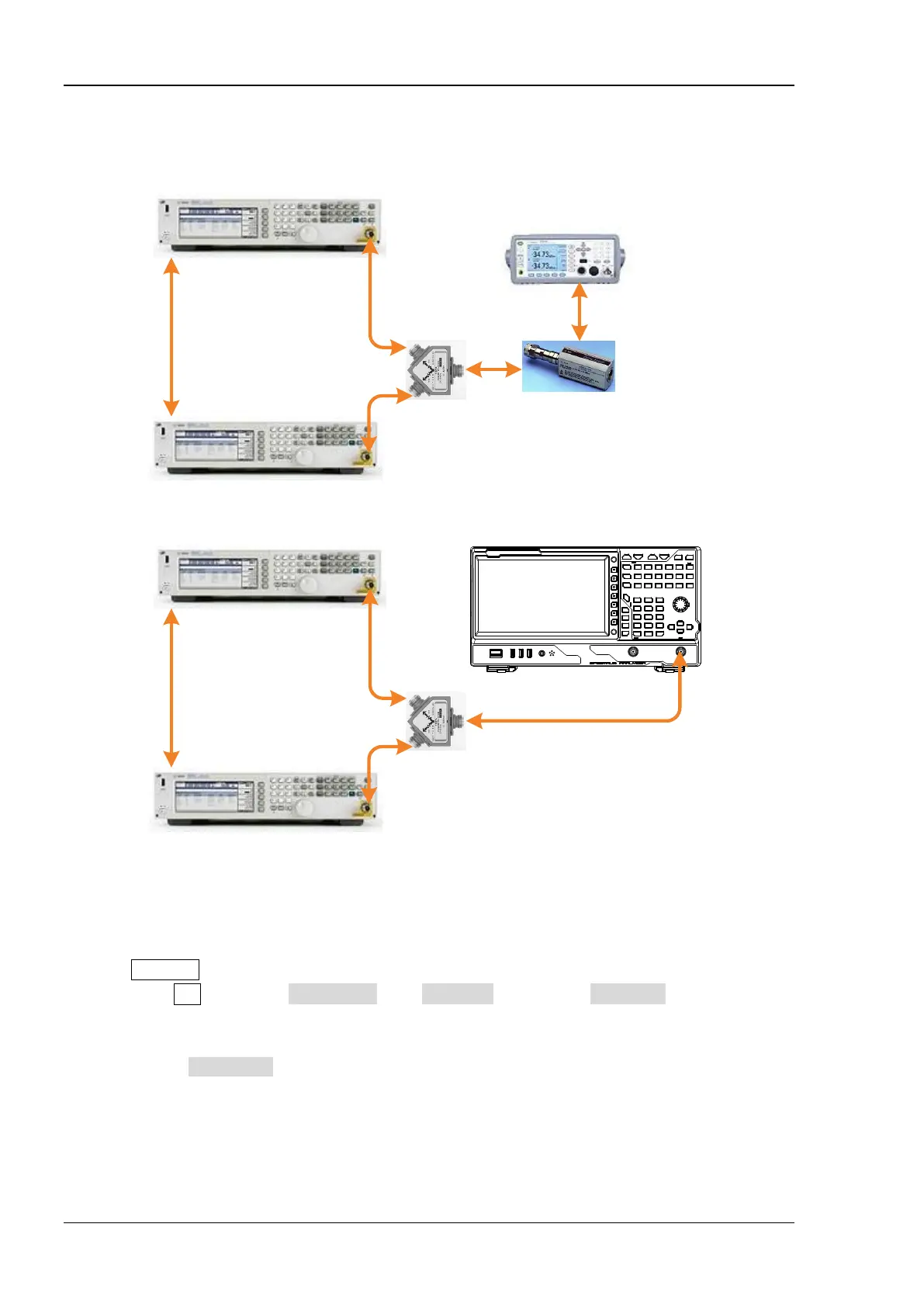

Figure 2-7 1 dB Gain Compression Test Connection Diagram
Test Procedures
1. Calibrate the power meter:
a) Connect the power sensor with the [REF] terminal and Channel A of the power meter. Press
Channel and set the frequency of Channel A to 50 MHz.
b) Press Cal and enable Power Ref in the Zero/Cal menu. Press Zero+Cal and wait for the
calibration to finish; then, observe whether the measurement value of the power meter is a
0 dBm, 50 MHz signal.
c) Disable Power Ref.
2. Synchronize the two signal generators. Connect the outputs of the two signal generators with
the power divider. Then connect the power divider with the power sensor, as shown in Figure 2-7
(a).
