Rigol RSA5065N-OCXO Performance Verification Guide

Chapter 2 Performance Verification Test RIGOL
RSA3000 Performance Verification Guide
2-9
Test Devices
1. Signal Generator × 1
2. Power Meter × 1
3. Power Sensor × 1
4. Power Meter Connecting Cable × 1
5. Dual-N Cable × 1
6. Dual-BNC Cable × 1

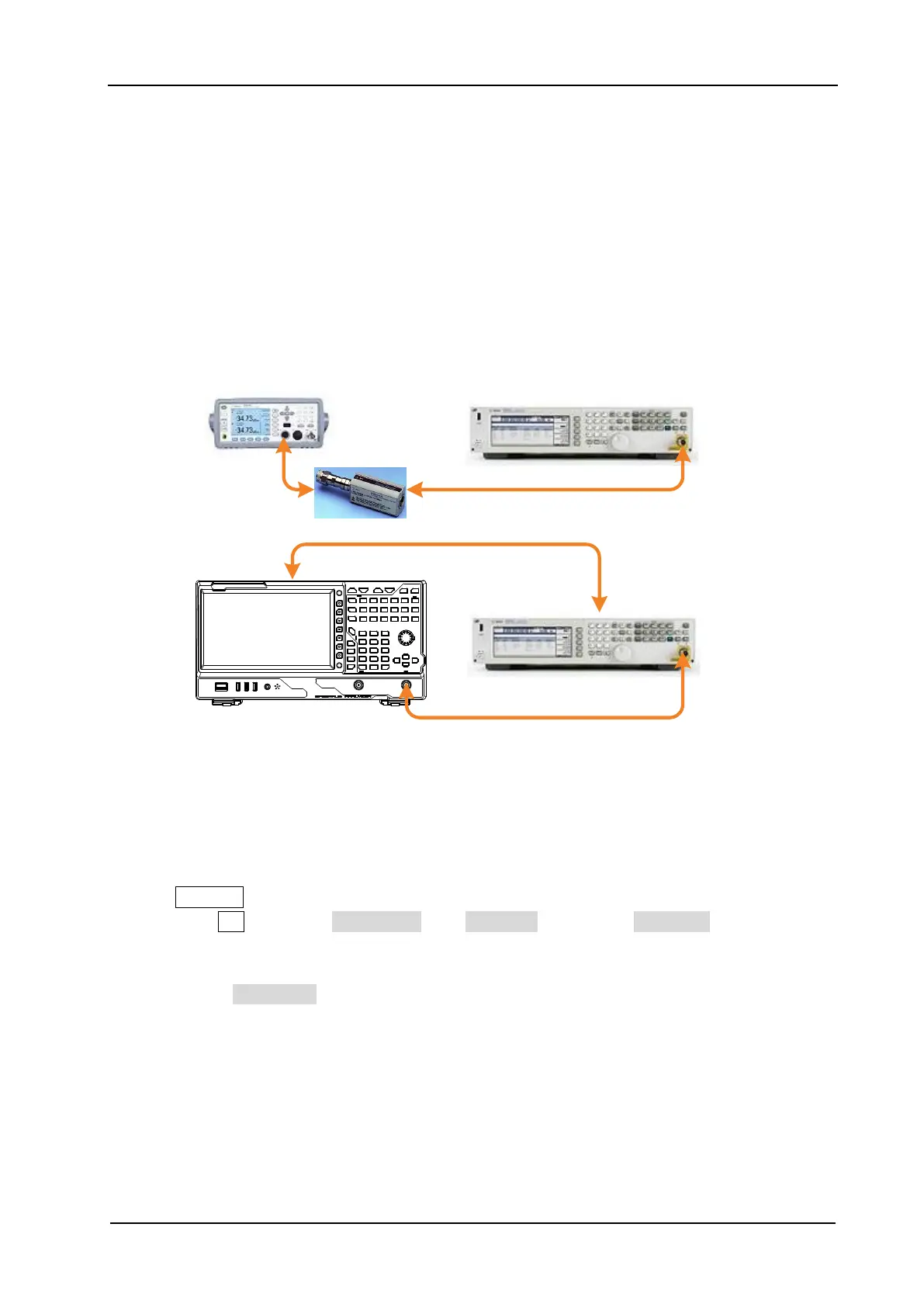

Test Connection Diagram
(a)
(b)
RSA3000
Dual-N Cable
Dual-BNC Cable
RF IN
RF OUT
Dual-N Cable
RF OUT
Power Meter
Power Sensor
Power Meter
Connecting Cable
10MHz OUT
10MHz IN
Signal Generator
Signal Generator
Figure 2-4 Frequency Response Test Connection Diagram
Test Procedures
1. Calibrate the power meter:
a) Connect the power sensor with the [REF] terminal and Channel A of the power meter. Press
Channel and set the frequency of Channel A to 50 MHz.
b) Press Cal and enable Power Ref in the Zero/Cal menu. Press Zero+Cal and wait for the
calibration to finish; then, observe whether the measurement value of the power meter is a
0 dBm, 50 MHz signal.
c) Disable Power Ref.
2. Connect the output terminal of the signal generator with the power sensor, as shown in Figure
2-4 (a).
3. Set the output frequency of the signal generator to 50 MHz; set the amplitude to -10 dBm.
4. Measure the output amplitude of the signal generator by using the power meter and record the
