5 Channel Amp with 4 Channel Input

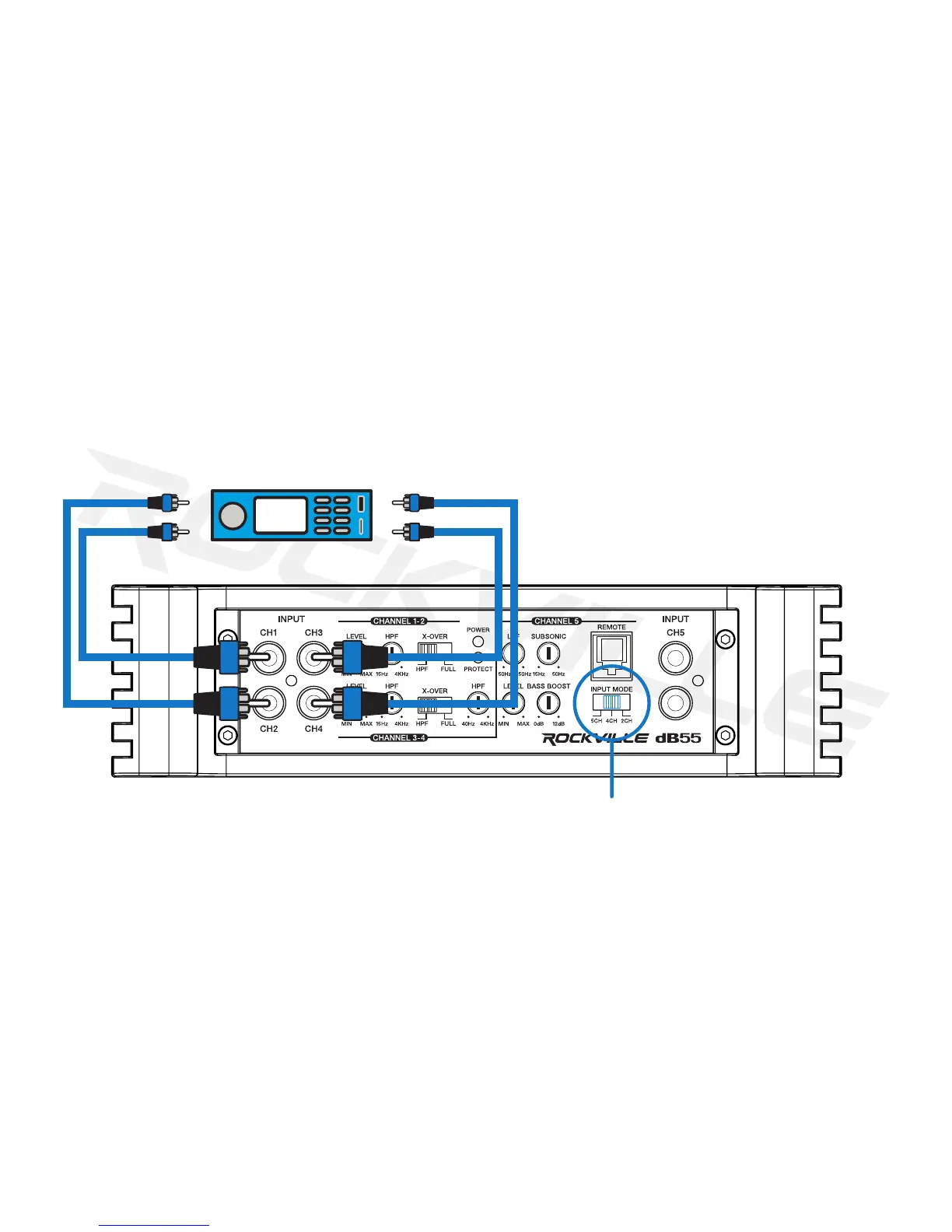

If your head unit has two pairs of RCA outputs, input Front Left and Front Right in to amplier Channels 1 and 2 input jacks. Rear Left and Rear Right in to ampliers Channels 3 and 4 input jacks.

Set the Input Mode Switch to 4Ch. The ampliers preamp circuitry will automatically mix all the channels and output will occur on all 5 channels. There will be Left and Right balance, Front to Rear

Fader with constant subwoofer.

TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL

PROCESSOR WITH STEREO OUTPUTS

INPUT MODE SWITCH

IN 4CH POSITION

L L

R R
