The dB16, dB15, dB14, dB13, and dB12 are all 2 ohm stable
monoblock ampliers. No matter how many woofers you choose
to wire up to these models, the nal impedance should not fall
below 2 ohm. Please see page 30 and 31 for various speaker
impedance congurations.
The dual positive and negative terminals are connected in parallel
inside the amplier. Connecting two speakers, each to one set of
positive and negative terminals, will result in a parallel speaker
connection. If only connecting one pair of speaker wires, it is not
necessary to use both sets of connections.

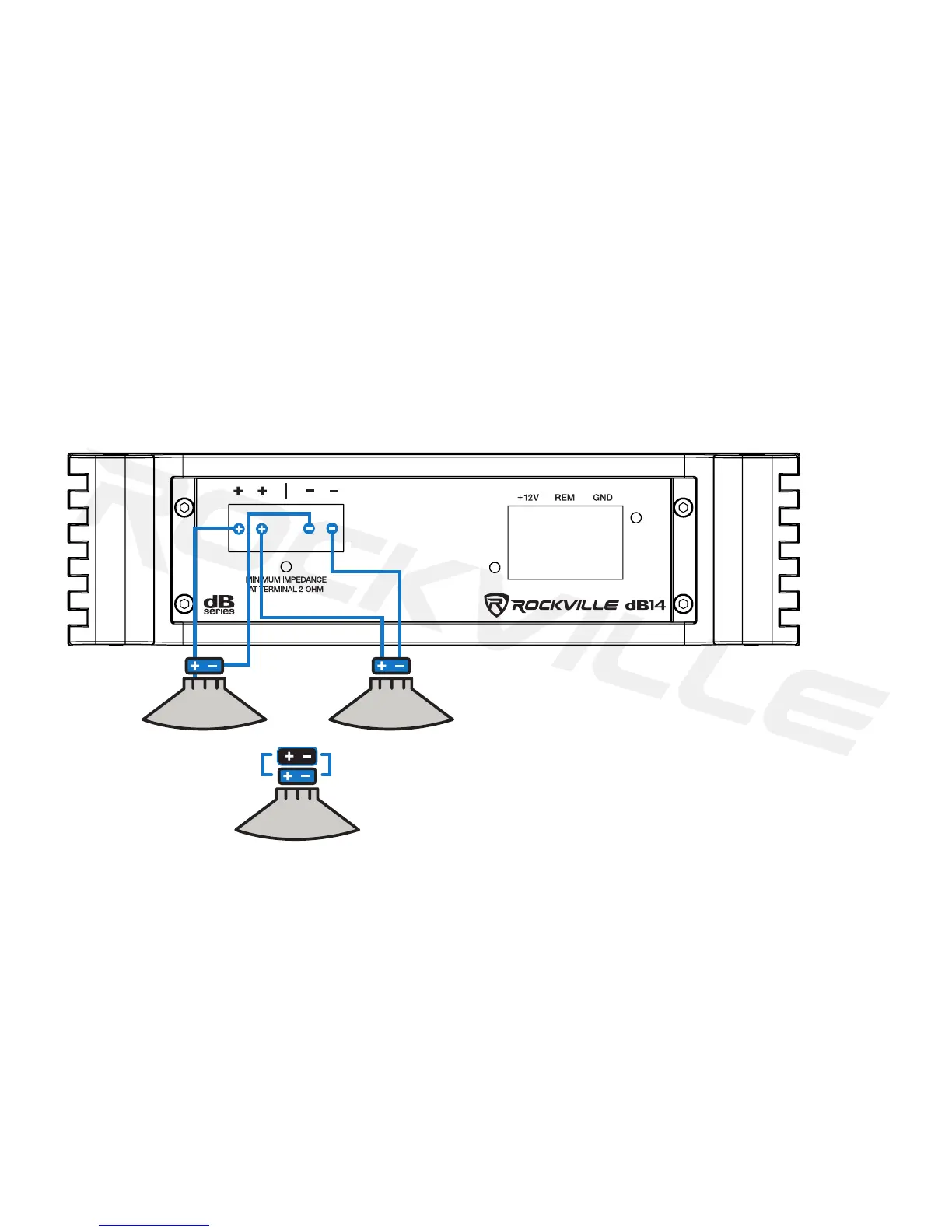

DVC 4 OHM SUBWOOFER IN
PARALLEL = 2 OHM LOAD
2 OHM SUBWOOFER 2 OHM SUBWOOFER
2 OHM MINIMUM LOAD
- OR -
