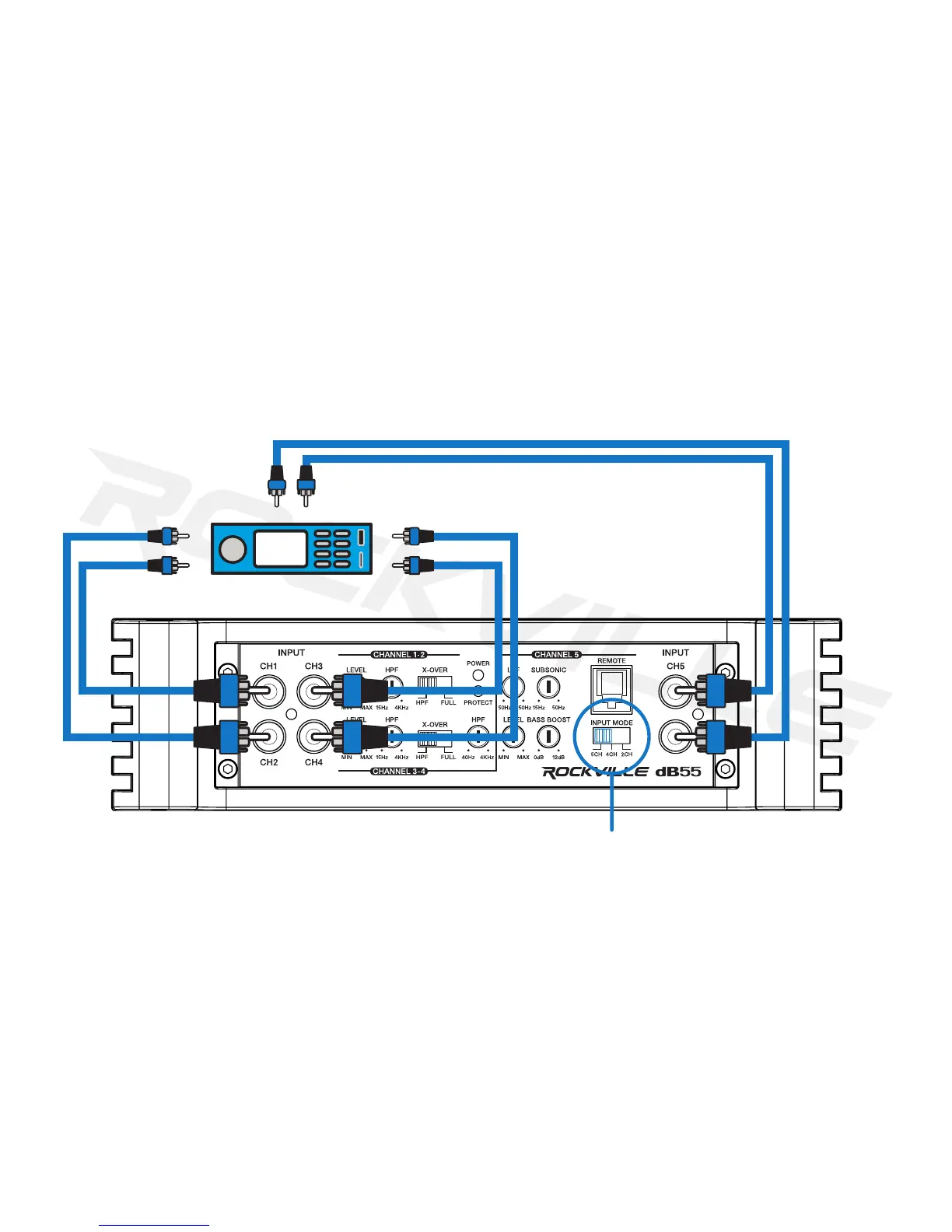

5 Channel Amp with 5 Channel Input

If your head unit has three pairs of RCA outputs, input Front Left and Front Right in to amplier Channels 1 and 2 input jacks. Rear Left and Rear Right in to ampliers Channels 3 and 4 input jacks.

Subwoofer output in to Channel 5. If your head unit has only a single subwoofer output, use a Y adaptor to feed both Channel 5 inputs. Set the Input Mode Switch to 5Ch. The ampliers preamp

circuitry will automatically mix all the channels and output will occur on all 5 channels. There will be Left and Right balance, Front to Rear Fader with independent subwoofer.

INPUT MODE SWITCH

IN 5CH POSITION

TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL

PROCESSOR WITH STEREO OUTPUTS

SUBWOOFER OUT

L L

R R
