10
BP
INPUT
OUTPUT
CH1 CH3
CH2 CH4 RIGHT
LEFT
HIGH LEVEL
INPUT
CLONE
X-OVER
FREQUENCY
MULTIPLIER
FULL
50Hz
500Hz
300Hz
3KHz
MINMAX
HPF X1 X10
CH3 & CH4
+ - GND + -
+ - GND + -
HIGH
PASS
INPUT
LEVEL
LPF / BPF
STATUS
CROSSOVER
INPUT MODE
FULLHPF2CH 4CH
0dB 12dB 15Hz 1KHz 50Hz 3KHz
BASS
EQUALIZER
HIGH
PASS
LOW
PASS
MIN MAX
INPUT
LEVEL
AUTO START
SMART
CIRCUIT
CHANNELS 1-2 CHANNELS 3-4

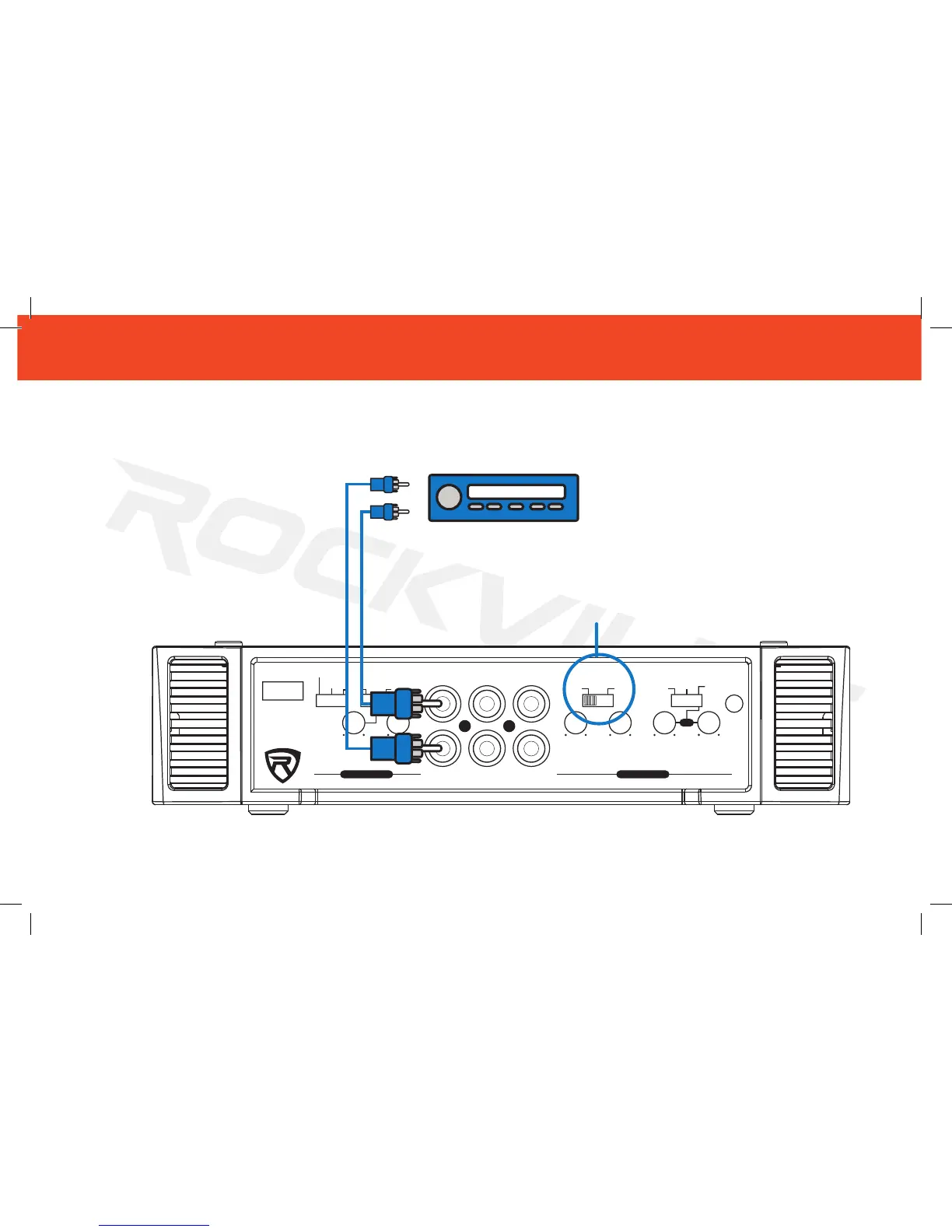

4 Channel Amp with 2 C hannel Input
If your head unit has only one pair of Left and Right
RCA out put jacks, plug them in to RCA input Jacks
1 and 2 of the amplier and set the Input model
switch to the 2CH position.
The amplier preamp circuit will automatically mix
the signals to channels 3 and 4 thereby preserving
your Left and Right Balance control but with no Fade
control Front to Rear.
TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL
PROCESSOR WITH STEREO OUTPUTS
INPUT MODE SWITCH
IN 2CH POSITION
L
R
