Rockville Phenom RXD-M4 User Manual

19
5 Channel Amplier Speaker Wiring
The RXDM2 model is a 1 ohm mono block amplier.
No matter how many woofers you choose to wire up to
this model, the nal impedance should not fall below
1 ohm. Please see page 30 and 31 for various speaker
impedance congurations.

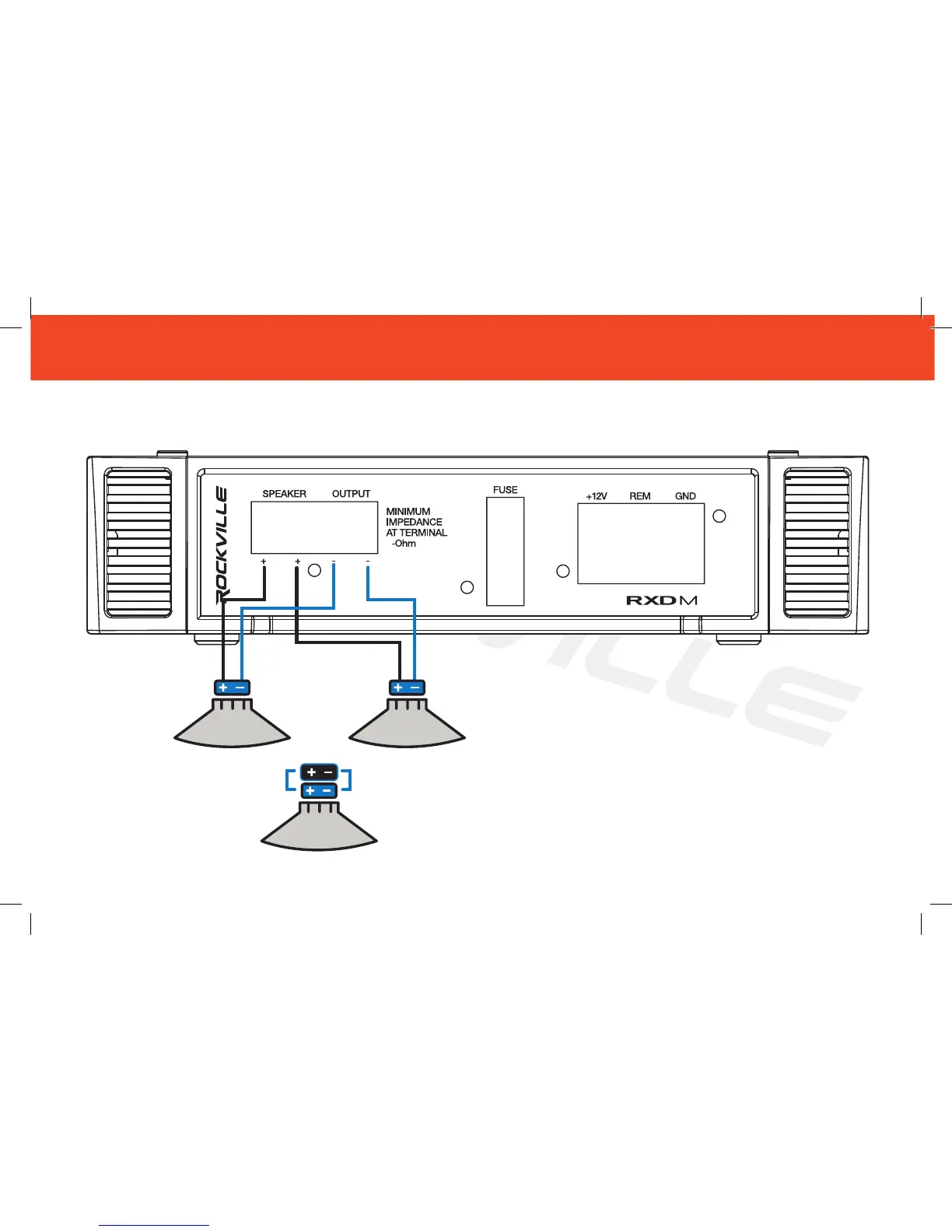

DVC 2 OHM SUBWOOFER
IN PARELLEL = 1 OHM
LOAD
2 OHM SUBWOOFER 2 OHM SUBWOOFER
2 OHM MINIMUM LOAD
- OR -
Class D Mono Block 1 Ohm Amplier
2
2
