4
Oct. 2010 CUBE-40XL

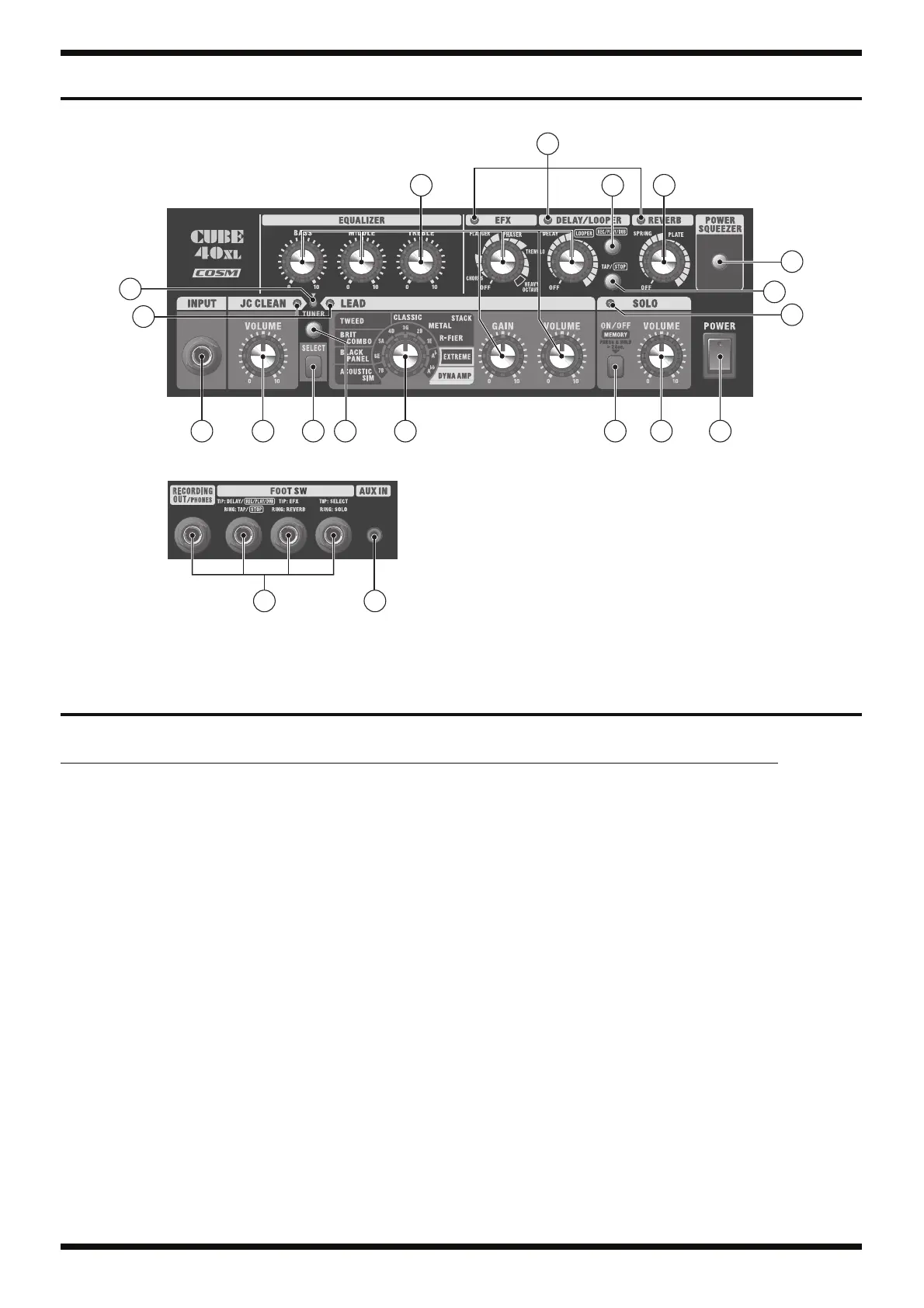

Location of Controls
fig.panel-40XL.eps
Location of Controls Parts List
2
3
9 116 8 5 8
2
11
4
5
2
7
10
11 12
No. Part Code Part Name Description Q’ty
1 5100004182 POTENTIOMETER RD901F-40E1-15F-0B10K-00DN6 10
* This unit includes the following parts.
17048630 VR ACCESSORY NUT M9 10
40452178 VR WASHER M9 10
1 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 10
2 03349978 LED (RED) L-34HDSL-FPB 6
3 5100004353 KEYTOP 40285-501(SD000906) 1
05011067 LED L-3WEGW (153-L-3WEGW) 1
01780101 TACT SWITCH SKQKABD010 1
4 5100004353 KEYTOP 40285-501(SD000906) 1
01780101 TACT SWITCH SKQKABD010 1
5 5100004353 KEYTOP 40285-501(SD000906) 2
5100003359 LED BL L-34ID (153-L-34IDSLLF) 2
01780101 TACT SWITCH SKQKABD010 2
6 22150756 JACK NUT 2 PLASTIC/BLK 1
13449146 6.5MM JACK YKB21-5012 (W/SW) 1
7 03349989 LED (GREEN) L-34GDSL-FPB 1
8 5100015020 S-KEYTOP SX BLK 2
01780101 TACT SWITCH SKQKABD010 2
9 5100016162 ROTARY POTENTIOMETER RD901F-40-15F-B10K-09DW6 1
* This unit includes the following parts. 1
H5039521R0 NUT M7 1
17048651 VR ACCESSORY WASHER M7 M7X12X0.5 NO.476 1
9 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 1
10 02897801 SEESAW SWITCH SDDJE13200 94V-0 1
11 22150756 JACK NUT 2 PLASTIC/BLK 4
13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 4
12 05019512 3.5MM JACK 203-HTJ03509ABT 1
To Next Page
