Depends on length
when loaded
Material
Pinch Roller
Margin

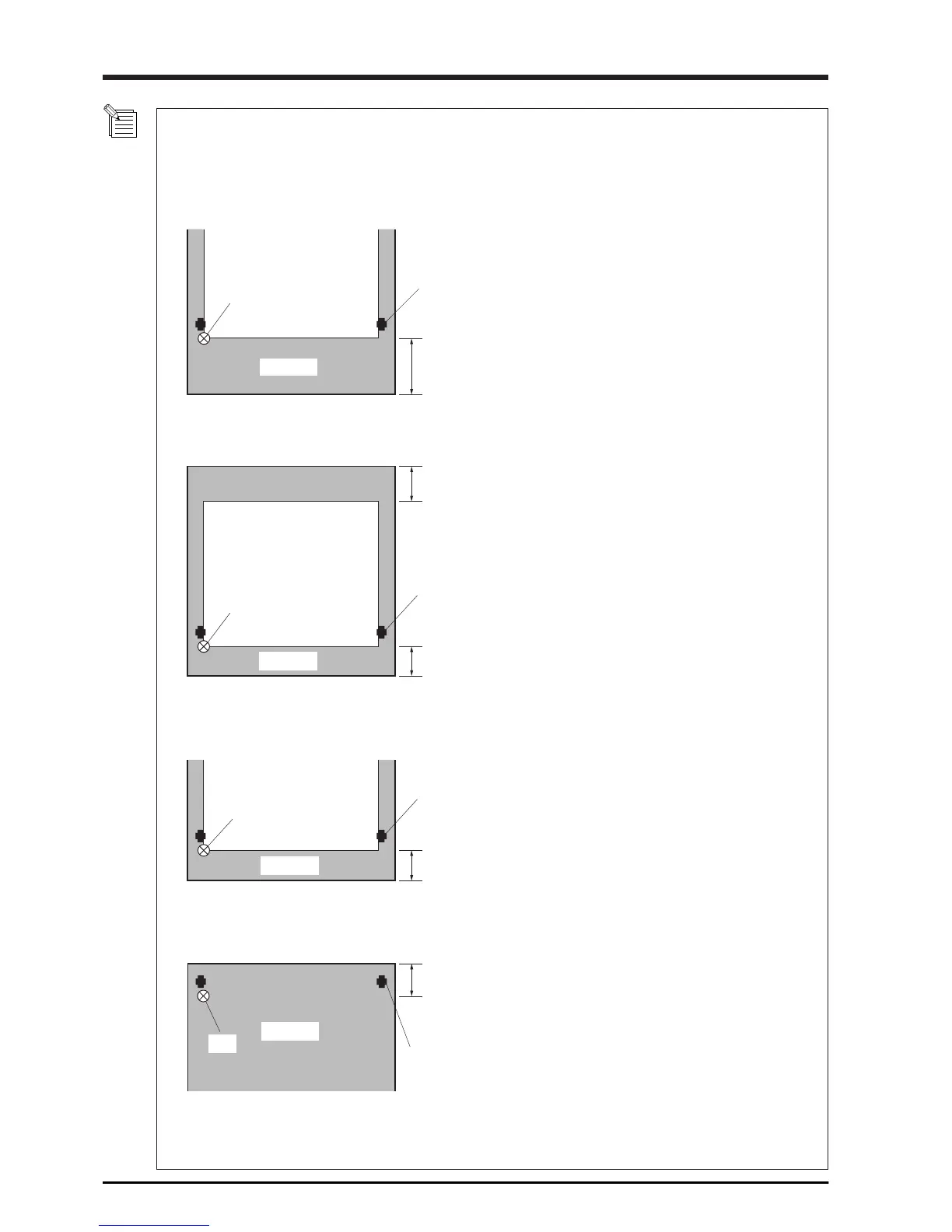

The Location of the Origin Point Immediately After Loading Ma-
terial (When [AXIS ROTATE] is set to [0deg])
“ROLL” (When using roll material)
The origin point is set at the location where the material is
loaded, near the left pinch roller.
(0.0)
25 mm
(1 in.)
30 mm
(1-3/16 in.)
Material
Pinch Roller
Margin
“PIECE” (When using flat material)
After length in the direction of material feed is detected,
movement 25 mm back from the front edge of the material
is performed, and the origin point is set near the left pinch
roller.
* When the length of the material is 1,600 mm (63 in.) or
longer, the material is determined to be roll material.
The origin point is set in the same way as for “ROLL”
above.
(0.0)
25 mm
(1 in.)
Material
Pinch Roller
Margin
“F-EDGE” (When performing cutting from as close as possible to the front edge of the
material)
Set the origin point at a location having a margin of 25 mm
from the front edge of the material.
30 mm
(1-3/16 in.)
Pinch Roller
Material
(0.0)
“R-EDGE” (When using the front-loading feature)
Set the origin point at a location having a margin of 30 mm
from the trailing edge of the material.
When in this state, the cutting area is zero.
* For detailed information about the cutting area, see the following page.
To Next Page
