8

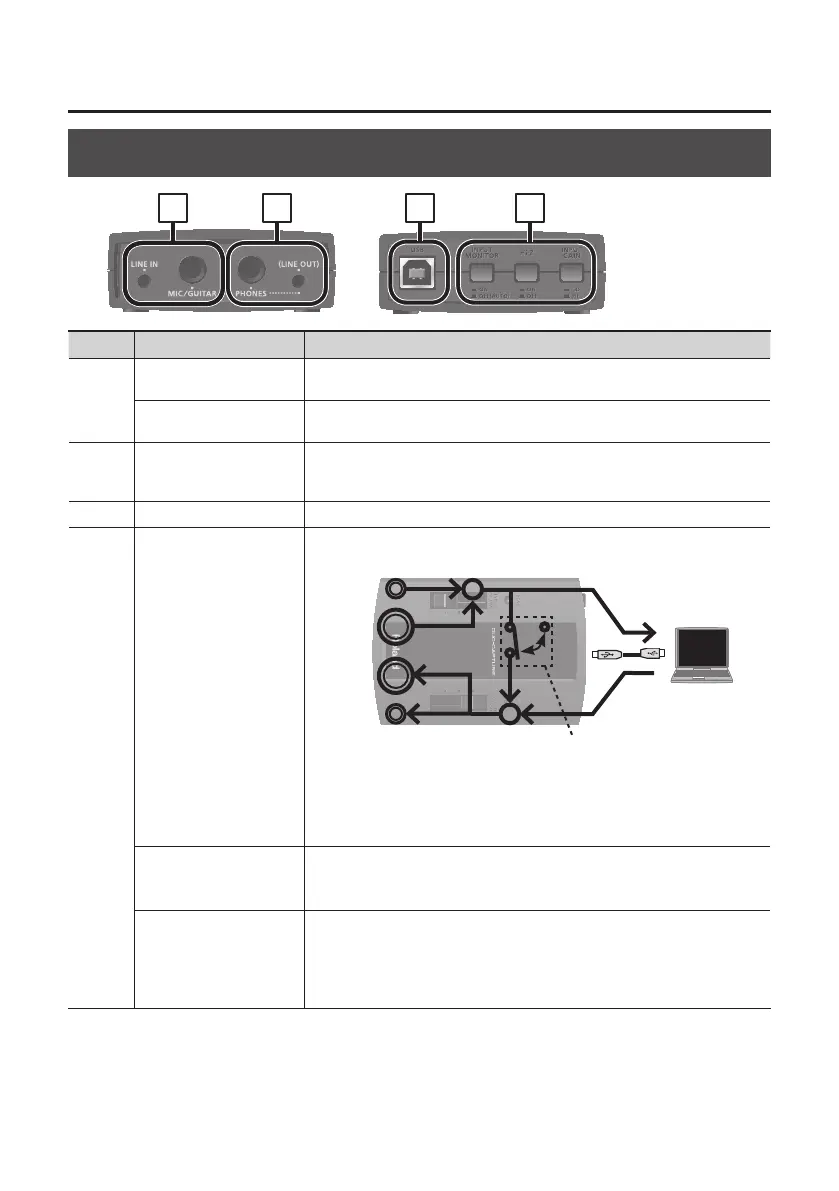

Panel Descriptions
Front Panel, Rear Panel
6
7
8
9
No. Name Description
6
LINE IN jack
Used to connect the audio device that will send audio signals to the DUO-
CAPTURE. Use the [INPUT VOLUME] slider to adjust the volume (*1).
MIC/GUITAR jack
Used to connect a guitar or monaural dynamic microphone. Use the [INPUT
VOLUME] slider to adjust the volume (*1).
7 PHONES jack
Used to connect headphones. Use the [OUTPUT VOLUME] slider to adjust the
volume. The stereo miniature phone-type jack on the right can be used as a
LINE OUT jack.
8 USB connector Used to connect the DUO-CAPTURE to a USB cable.
9
[INPUT MONITOR] button
Determines whether the received audio signal is output directly to the
PHONES jack.
+
LINE IN
MIC/
GUITAR
PHONES
+
[INPUT MONITOR] button
ON
OFF
ASIO-compatible
software
AUTO
ON: The input audio signal is output directly.
OFF (AUTO): The input audio signal is not output directly. Note that when
ASIO-compatible software is used, the input audio signal may
be output directly according to the ASIO Direct Monitor setting.
[Hi-Z] button
Changes the impedance of the MIC/GUITAR jack (p. 16).
ON: Select “ON” when a guitar is connected.
OFF: Select “OFF” when a dynamic microphone is connected.
[INPUT GAIN] button
Changes the input gain of the LINE IN jack and the MIC/GUITAR jack (p. 16).
HI: Select “Hi” to increase input gain, such as when a dynamic
microphone is connected.
LO: Select “Lo” when an audio device is connected to the LINE IN jack or
when a guitar is connected.
(*1): We recommend using one input jack (i.e., either the LINE jack or the MIC/GUITAR jack) at a time.
If devices are connected to both jacks at the same time, the sound input via both jacks is mixed
together, but the DUO-CAPTURE cannot adjust the balance of the mix.
