Quick Guide

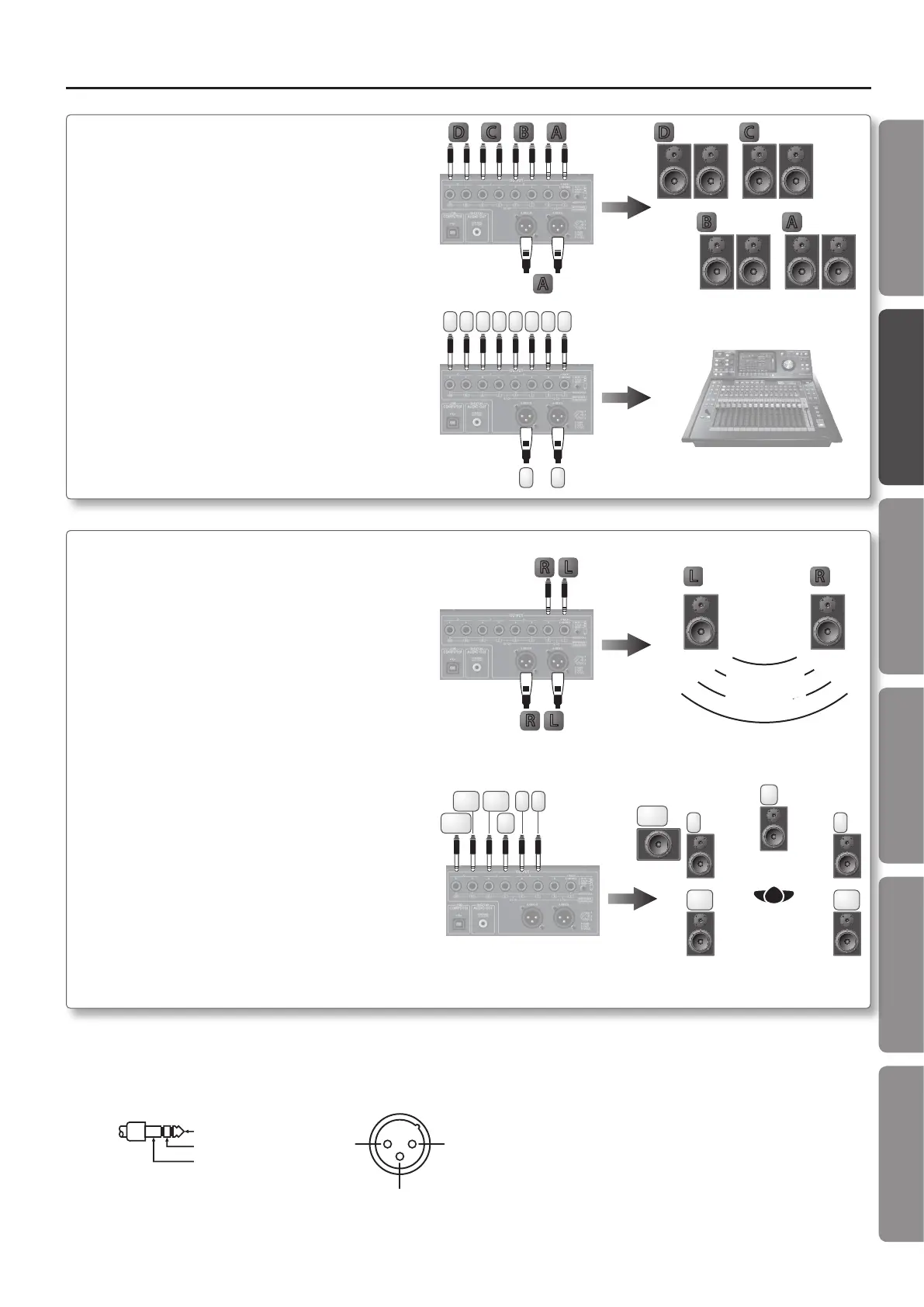

OUTPUT jacks
(When motional surround (p. 34) is OFF)
A (MIX) L/MONO, R jacks
These jacks output a stereo signal (L/R) to your amp or mixer.
If you want to output in mono, connect to only the L side.
Both XLR type and TRS type jacks are provided; they output
the same audio.
B, C, D L/R jacks
These jacks output a stereo signal (L/R) to your amp or mixer.
* The [VOLUME] knob on the front panel does not adjust
the volume of these jacks.
INDIVIDUAL 1–8 jacks
These jacks output mono signals to your amp or mixer.
* The [VOLUME] knob on the front panel does not adjust
the volume of INDIVIDUAL 3–8 jacks.
OUTPUT jacks
(When motional surround (p. 34) is ON)
Supports both two-channel and 5.1 channel surround output.
MOTIONAL SURROUND 2 CH L/R jacks
These jacks allow two speakers to output sound with spatial
depth as specied by the motional surround settings.
The same audio will be output from the TRS type and the XLR
type jacks.
MOTIONAL SURROUND 5.1 CH L/R/C/Ls/Rs/LFE jacks
These jacks output 5.1 channel surround as specied by the
motional surround settings.
Position your speakers as shown in the illustration.
* The [VOLUME] knob on the front panel does not adjust
the volume of these jacks.
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
* This instrument is equipped with balanced (XLR/TRS) type jacks. Wiring diagrams for these jacks are shown below. Make connections after rst
checking the wiring diagrams of other equipment you intend to connect.
1: GND2: HOT
3: COLD
1: GND 2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
1: GND2: HOT
3: COLD
1: GND 2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
* When connection cables with resistors are used, the volume level of equipment connected to the input jacks (front, rear) may be low. If this
happens, use connection cables that do not contain resistors.
* The output destination (A–D, 1–8) can be assigned
independently for each part “Output Assign” (p. 32).
A
A
B
CD
AB
C
D
Motional
Surround
L R
R L
R L
R
R
L
L
C
C
Ls
Ls
LFE
LFE
Rs
Rs
2
2
1
1
4 36 5
8 7
* Two-channel and 5.1 channel surround are output simultaneously.
23
