Roland M-12E User Manual

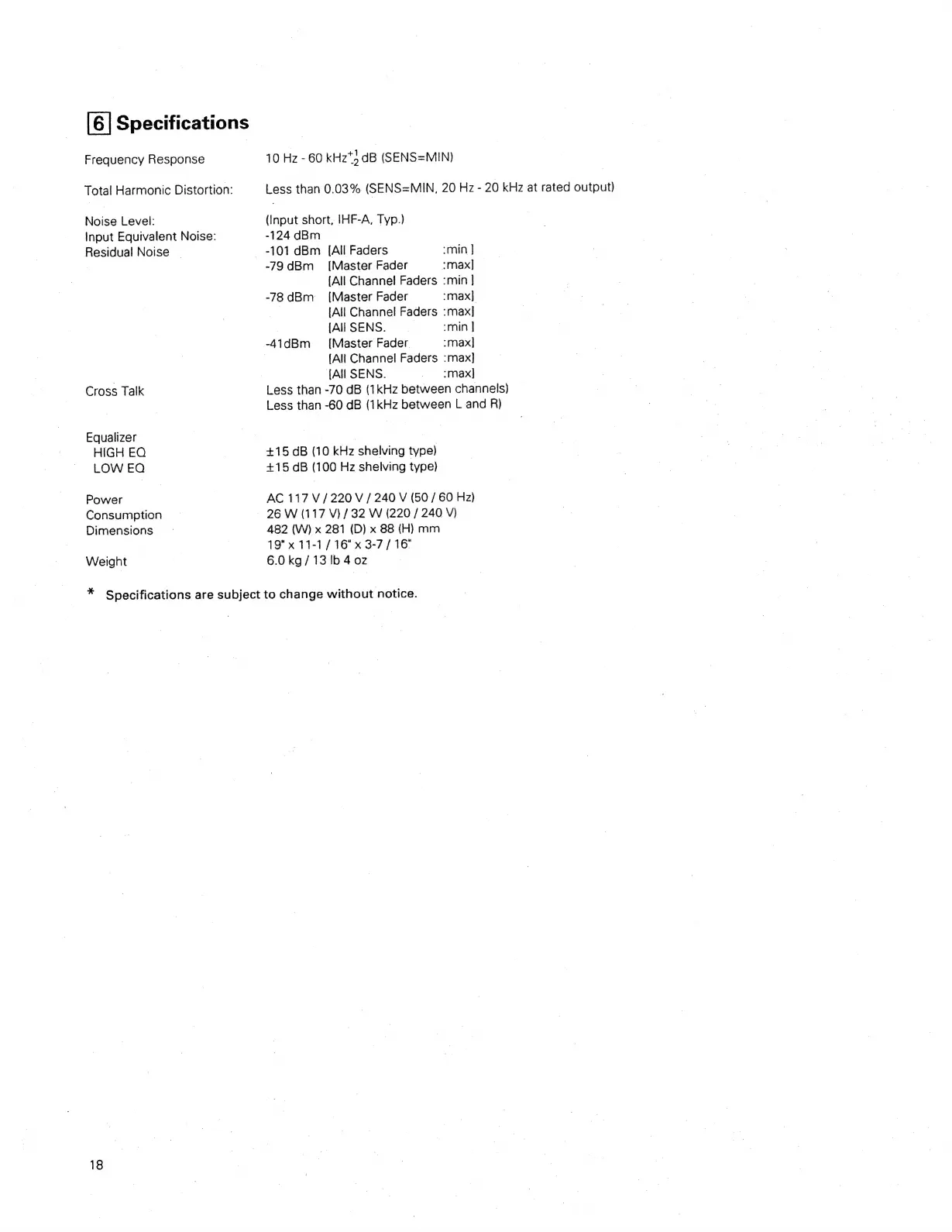

[6| Specifications
Frequency Response
Total Harmonic Distortion:
Noiss Level:
Input Equivalent Noise:
Residual Noise -
Cross Talk
Equalizer
HIGH EQ
LOW EQ
Power
Consumption
Dimensions
Weight
10 Hz - 60 kHz*5 dB (SENS=MIN)
Less than 0.03% (SENS=MIN, 20 Hz - 20 kHz at rated output)
(Input short, |HF-A, Typ.)
-124 dBm
— -101 dBm [All Faders “min |
-79dBm_ [Master Fader imax]
[All Channel Faders :min ]
-78 dBm _ [Master Fader :max]
[All Channel Faders :max]
| [All SENS. ‘min |
-41dBm [Master Fader. :max]
{All Channel Faders :max]
[All SENS. :max]
Less than -70 dB (1kHz between channels)
Less than -60 dB (1kHz between L and R)
+15 dB (10 kHz shelving type)
+15 dB (100 Hz shelving type)
AC 117 V/ 220 V / 240 V (50 / 60 Hz)
26 W (117 V) / 32 W (220 / 240 V)
482 (W) x 281 (D) x 88 (H}) mm
19" x 11-1 /16" x 3-7 / 16"
6.0kg/13lb40z
* Specifications are subject to change without notice.

Roland M-12E Specifications

General

Brand	Roland
Model	M-12E
Category	Music Mixer
Language	English
