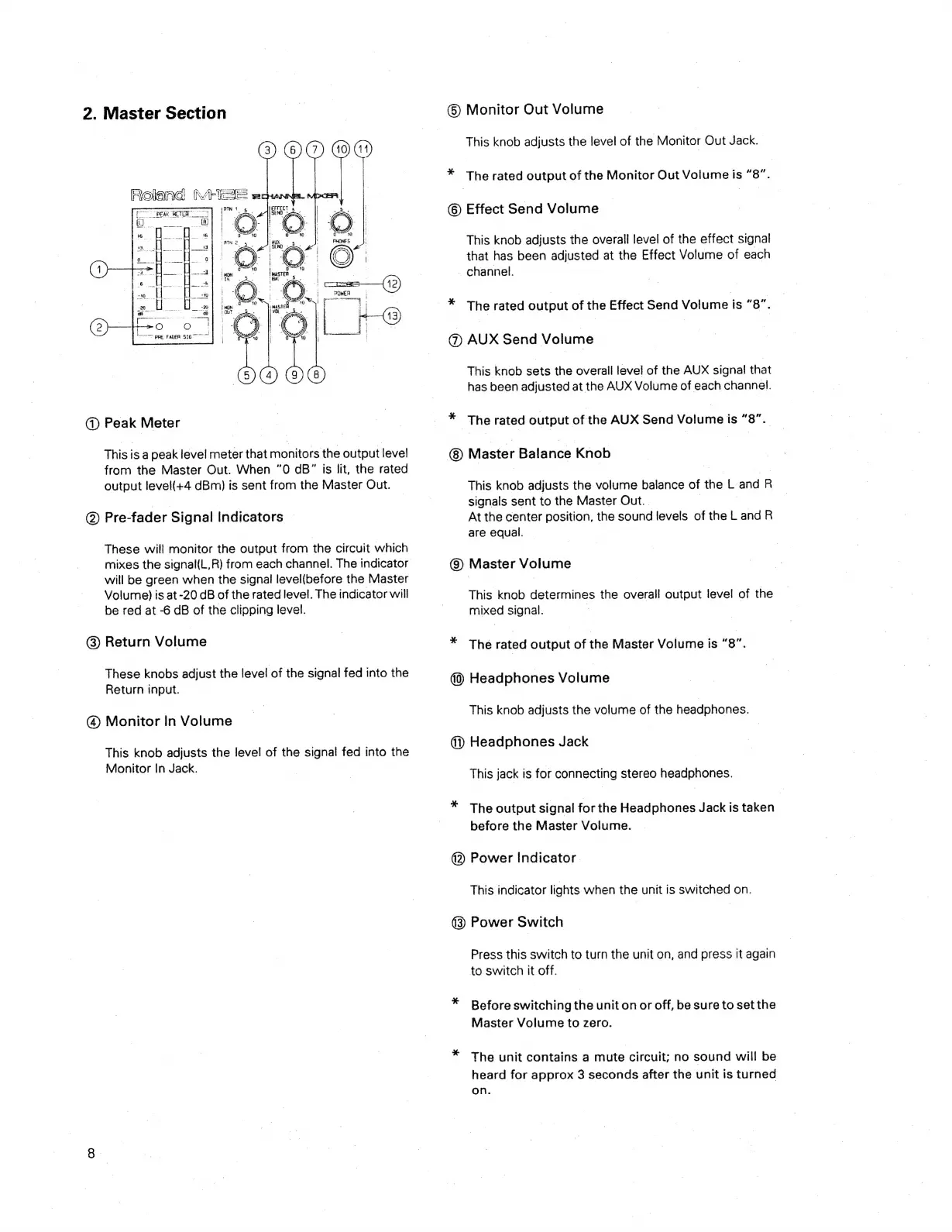

2.
Master
Section
[BEAK
METER
ae
@
Peak
Meter
This
is
a
peak
level
meter
that
monitors
the
output
level
from
the
Master
Out.
When
"0
dB”
is
lit,
the
rated
output
level(+4
dBm)
is
sent
from
the
Master
Out.
@)
Pre-fader
Signal
Indicators
—
These
will
monitor
the
output
from
the
circuit
which
mixes
the
signal(L,R)
from
each
channel.
The
indicator
will
be
green
when
the
signal
level(before
the
Master
Volume)
is
at
-20
dB
of
the
rated
level.
The
indicator
will
be
red
at
-6
dB
of
the
clipping
level.
(3)
Return
Volume
These
knobs
adjust
the
level
of
the
signal
fed
into
the
Return
input.
(4)
Monitor
In
Volume
This
knob
adjusts
the
level
of
the
signal
fed
into
the
Monitor
In
Jack.
6)
Monitor
Out
Volume
This
knob
adjusts
the
level
of
the
Monitor
Out
Jack.
*
The
rated
output
of
the
Monitor
Out
Volume
is
“8”.
6
Effect
Send
Volume
This
knob
adjusts
the
overall
level
of
the
effect
signal
that
has
been
adjusted
at
the
Effect
Volume
of
each
channel.
*
The
rated
output
of
the
Effect
Send
Volume
is
“8”.
@
AUX
Send
Volume
This
knob
sets
the
overall
level
of
the
AUX
signal
that
has
been
adjusted
at
the
AUX
Volume
of
each
channel.
*
The
rated
output
of
the
AUX
Send
Volume
is
“8”.
(©)
Master
Balance
Knob
This
knob
adjusts
the
volume
balance
of
the
Land
R
signals
sent
to
the
Master
Out.
|
-
At
the
center
position,
the
sound
levels
of
the
L
and
R
are
equal.
@)
Master
Volume
This
knob
determines
the
overall
output
level
of
the
mixed
signal.
|
*
The
rated
output
of
the
Master
Volume
is
“8”.
Headphones
Volume
This
knob
adjusts
the
volume
of
the
headphones.
di)
Headphones
Jack
|
This
jack
is
for
connecting
stereo
headphones.
*
The
output
signal
for
the
Headphones
Jack
is
taken
before
the
Master
Volume.
(2)
Power
Indicator
This
indicator
lights
when
the
unit
is
switched
on.
(3)
Power
Switch
Press
this
switch
to
turn
the
unit
on,
and
press
it
again
to
switch
it
off.
Before
switching
the
unit
on
or
off,
be
sure
to
set
the
Master
Volume
to
zero.
The
unit
contains
a
mute
circuit;
no
sound
will
be
heard
for
approx
3
seconds
after
the
unit
is
turned
on.
