Roland Octa-Capture User Manual

13
13. OUTPUT jacks 1–8 (nominal output 0 dBu)
These jacks output analog audio signals. They are balanced TRS phone jack outputs.
* You can also connect phone plugs (unbalanced).
14. Main output jacks
These output jacks can be controlled by the [MAIN OUT] knob.

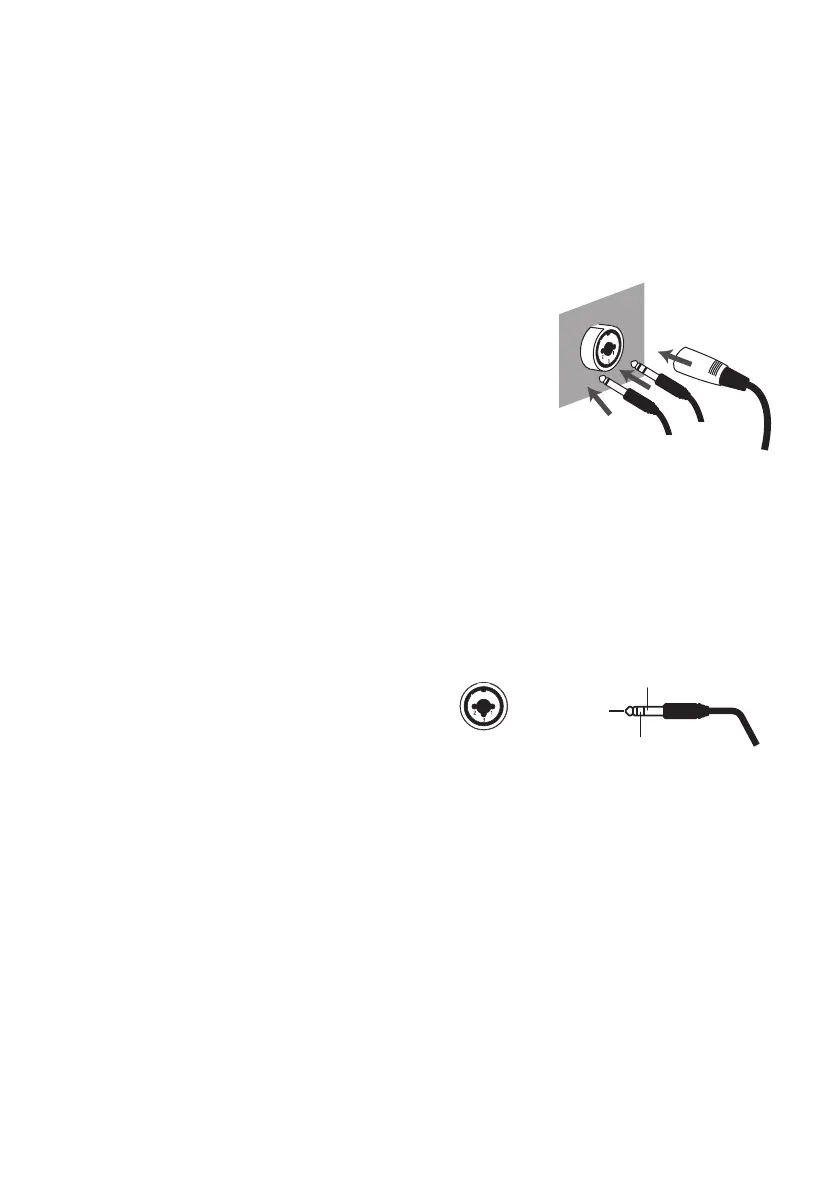

15. Combo input jacks (INPUT 5–8)
These are analog audio signal input jacks with microphone
preamps. Since they can accommodate either XLR type or phone
type plugs, you can use the type of connector most suitable for
your equipment. You may connect either balanced or unbalanced
devices.
XLR type: INPUT 5-6 -56–-6 dBu
INPUT 7-8 -50–+0 dBu
Phone type: INPUT 5-8 -46–+4 dBu
* INPUT 5–8 are xed at low-impedance (Lo-Z).
XLR input jacks 7 and 8 support high input levels of +16 dBu. You’ll have plenty of headroom even
when using microphones to record loud sources such as a bass drum.
Use the XLR jacks to connect microphones, and use the phone jacks to connect other devices.
The XLR type connection can provide 48 V phantom power, allowing you to connect condenser
microphones that require a phantom power supply. In this case, turn on phantom power switch on
(p. 36).
* This device is equipped with balanced
(XLR/TRS) type input jacks. Wiring
diagrams for these jacks are shown on
the right. Make connections after rst
checking the wiring diagrams of other
equipment you intend to connect.
16. USB connector
Connect this to a computer.
Before connecting the OCTA-CAPTURE for the rst time, you must install the driver as described in
“Driver Installation and Settings” (p. 14).
17. MIDI connectors
MIDI IN connector
This is a MIDI input connector. You can connect your MIDI keyboard or MIDI controller here.
MIDI OUT connector
This is a MIDI output connector. You can connect it to your MIDI sound module.
XLR plug
Phone plug
(unbalanced)
TRS phone
plug
(balanced)
922 edit
1: GND
2: HOT
3: COLD
GND (SLEEVE)
HOT (TIP)
COLD (RING)

Roland Octa-Capture Specifications

Audio Channels

number of audio record channels (44.1/48/96 kHz)	12 channels
number of audio playback channels (44.1/48/96 kHz)	10 channels
number of audio record channels (192 kHz)	4 channels
number of audio playback channels (192 kHz)	4 channels

Signal Processing

pc interface bit depth	24-bit
ad/da conversion bit depth	24-bit
internal processing bit depth	40-bit

Sampling Frequency

ad/da conversion sampling frequency	44.1/48/96/192 kHz
digital (in/out) sampling frequency	44.1/48/96 kHz

Input and Output Levels

nominal input level (input jack 1-6, xlr type)	-56 to -6 dBu
nominal input level (input jack 7-8, xlr type)	-50 to +0 dBu
nominal input level (input jack 1-8, 1/4-inch trs phone type)	-46 to +4 dBu
nominal output level (output 1-8)	+0 dBu (balanced)
headroom	16 dB

Impedance

input impedance (input jack 1-6, xlr type)	5 k ohms (balanced)
input impedance (input jack 7-8, xlr type)	10 k ohms (balanced)
input impedance (input jack 1-8, 1/4-inch trs phone type)	17 k ohms (balanced)
output impedance (output 1-8)	1.8 k ohms (balanced)
output impedance (phones)	47 ohms

Frequency and Noise

frequency response (192 kHz)	20 Hz to 90 kHz (+0/-8 dB)
frequency response (96 kHz)	20 Hz to 40 kHz (+0/-2 dB)
frequency response (48 kHz)	20 Hz to 22 kHz (+0/-2 dB)
frequency response (44.1 kHz)	20 Hz to 20 kHz (+0/-2 dB)
residual noise level	-87 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)

Dynamic Range and Display

dynamic range (ad block input 1-8)	104 dB typ. (GAIN: min.)
dynamic range (da block output 1-8)	113 dB typ.
display	128 x 64 dots Graphic LCD (backlit LCD)

Connectors

input jacks (xlr type / 1/4-inch trs phone type)	XLR type (balanced/phantom power +48 V), 1/4-inch TRS phone type (balanced)
coaxial input connector	present
coaxial output connector	present
headphone jack	Stereo 1/4-inch phone type
output jack (1/4-inch trs phone type)	balanced
midi connectors	In, Out
usb connector	present

Power and Dimensions

power supply	DC 9 V (AC adaptor)
current draw	1.45 A
dimensions	283.8 (W) x 157.9 (D) x 50.4 (H) mm / 11-3/16 (W) x 6-1/4 (D) x 2 (H) inches
weight	1.32 kg / 2 lbs 15 oz
