Roland RD-700 Service Note

5
Jun. 2001 RD-700

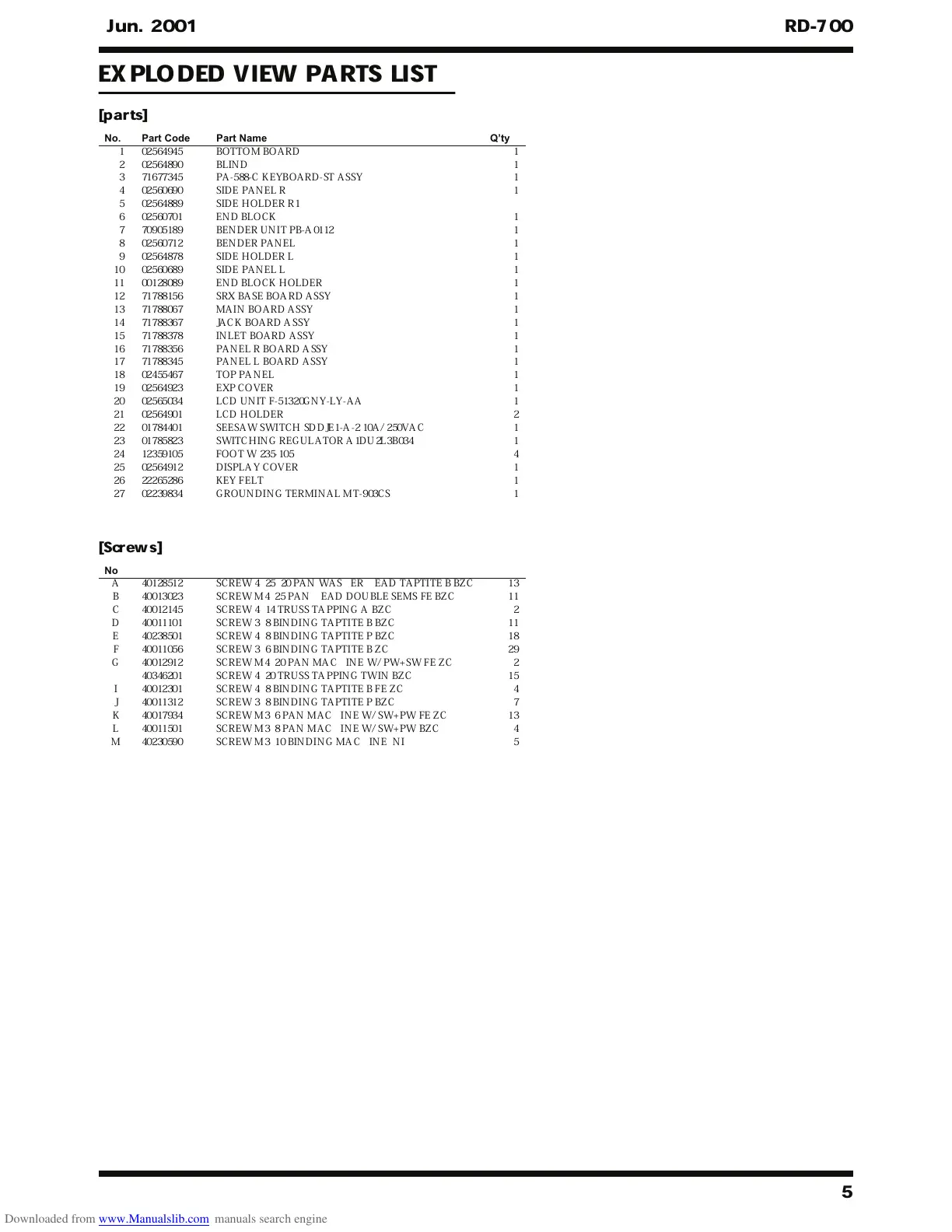

EXPLODED VIEW PARTS LIST
[parts]
[Screws]
No. Part Code Part Name Q’ty
1 02564945 BOTTOM BOARD 1
2 02564890 BLIND 1
3 71677345 PA-588-C KEYBOARD-ST ASSY 1
4 02560690 SIDE PANEL R 1
5 02564889 SIDE HOLDER R1
6 02560701 END BLOCK 1
7 70905189 BENDER UNIT PB-A0112 1
8 02560712 BENDER PANEL 1
9 02564878 SIDE HOLDER L 1
10 02560689 SIDE PANEL L 1
11 00128089 END BLOCK HOLDER 1
12 71788156 SRX BASE BOARD ASSY 1
13 71788067 MAIN BOARD ASSY 1
14 71788367 JACK BOARD ASSY 1
15 71788378 INLET BOARD ASSY 1
16 71788356 PANEL R BOARD ASSY 1
17 71788345 PANEL L BOARD ASSY 1
18 02455467 TOP PANEL 1
19 02564923 EXP COVER 1
20 02565034 LCD UNIT F-51320GNY-LY-AA 1
21 02564901 LCD HOLDER 2
22 01784401 SEESAW SWITCH SDDJE1-A-2 10A/250VAC 1
23 01785823 SWITCHING REGULATOR A1DU2L3B034 1
24 12359105 FOOT W 235-105 4
25 02564912 DISPLAY COVER 1
26 22265286 KEY FELT 1
27 02239834 GROUNDING TERMINAL MT-903CS 1
No. Part Code Part Name Q’ty
A 40128512 SCREW 4x25x20 PAN WASHER HEAD TAPTITE B BZC 13
B 40013023 SCREW M4x25 PAN HEAD DOUBLE SEMS FE BZC 11
C 40012145 SCREW 4x14 TRUSS TAPPING A BZC 2
D 40011101 SCREW 3x8 BINDING TAPTITE B BZC 11
E 40238501 SCREW 4x8 BINDING TAPTITE P BZC 18
F 40011056 SCREW 3x6 BINDING TAPTITE B ZC 29
G 40012912 SCREW M4x20 PAN MACHINE W/PW+SW FE ZC 2
H 40346201 SCREW 4x20 TRUSS TAPPING TWIN BZC 15
I 40012301 SCREW 4x8 BINDING TAPTITE B FE ZC 4
J 40011312 SCREW 3x8 BINDING TAPTITE P BZC 7
K 40017934 SCREW M3x6 PAN MACHINE W/SW+PW FE ZC 13
L 40011501 SCREW M3x8 PAN MACHINE W/SW+PW BZC 4
M 40230590 SCREW M3x10 BINDING MACHINE NI 5
