Panel Descriptions
8
DC IN jack
Connect the included AC adapter here.

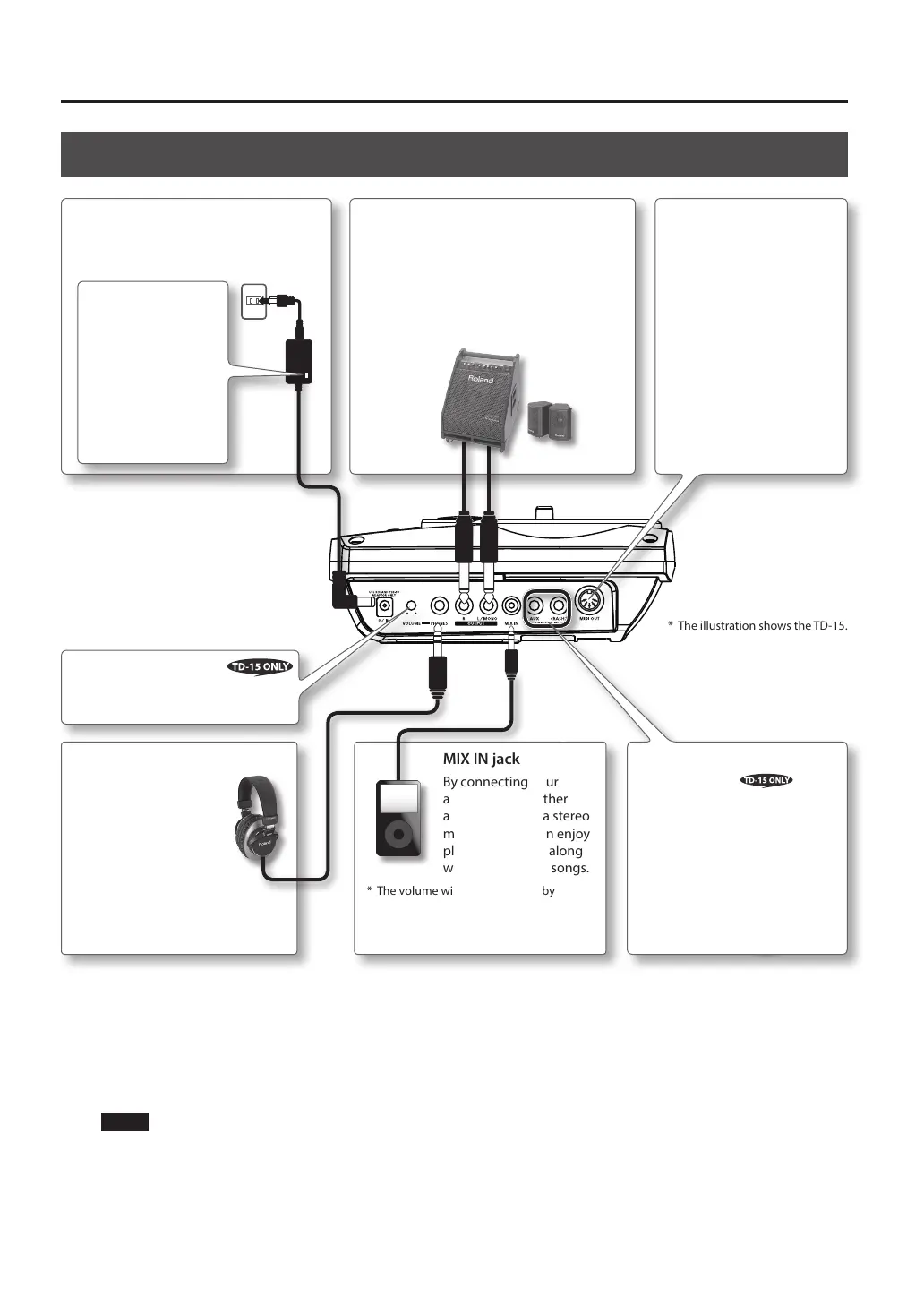

Side Panel (Connecting Your Equipment)
NOTE
• To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any
connections.
• When connection cables with resistors are used, the volume level of equipment connected to the MIX IN jack may be low. If
this happens, use connection cables that do not contain resistors.
PHONES jack
Connect stereo
headphones here.
Sound will still be output
from the OUTPUT jacks
even if headphones are
connected.
MIX IN jack
By connecting your
audio player or other
audio source via a stereo
mini-plug, you can enjoy
playing the drum along
with your favorite songs.
* The volume will be determined by
connected device.
MIDI OUT connector
Use this when you want
to trigger an external MIDI
sound module, sampler,
etc., from the TD (p. 37).
[VOLUME] knob
Adjusts the volume of the
headphones.
OUTPUT jacks
(L/MONO, R)
For connecting to your audio system or
amp. All sounds from the TD are output
here.
For outputting sounds in MONO, connect
the cable to the L/MONO jack.
Place the AC adaptor
so the side with the
indicator (see illustra-
tion) faces upwards
and the side with
textual information
faces downwards.
The indicator will light
when you plug the
AC adaptor into an AC
outlet.
* The illustration shows the TD-15.
TRIGGER IN jacks
(CRASH2, AUX )
These allow you to connect
additional pads.
To Next Page
