7 x Hydraulic system integration
46
FA ROTEX Solaris RPS3 25M - 03/2010
7 Hydraulic system integration
7.1 Schematic diagrams
WARNING!
Temperatures over 60 °C can be present in the Solaris DHW storage tank.
• Install scalding protection.
– e. g. scalding protection VTA 32 ( 15 60 15), k
VS
= 1.6
– Screw fittings set 1" ( 15 60 16)
CAUTION!
ROTEX units can optionally be fitted with plastic non-return valves ( 16 50 70). These are suitable for
operating temperatures up to 95 °C. If a heat exchanger is to be operated above 95 °C, the customer must
install a different non-return valve.
Shown below is a selection of the most frequently installed system arrangements. The arrangements shown
are only examples, and are no substitute for careful system planning. Additional arrangements are shown on
the ROTEX website at http://www.rotex.de.

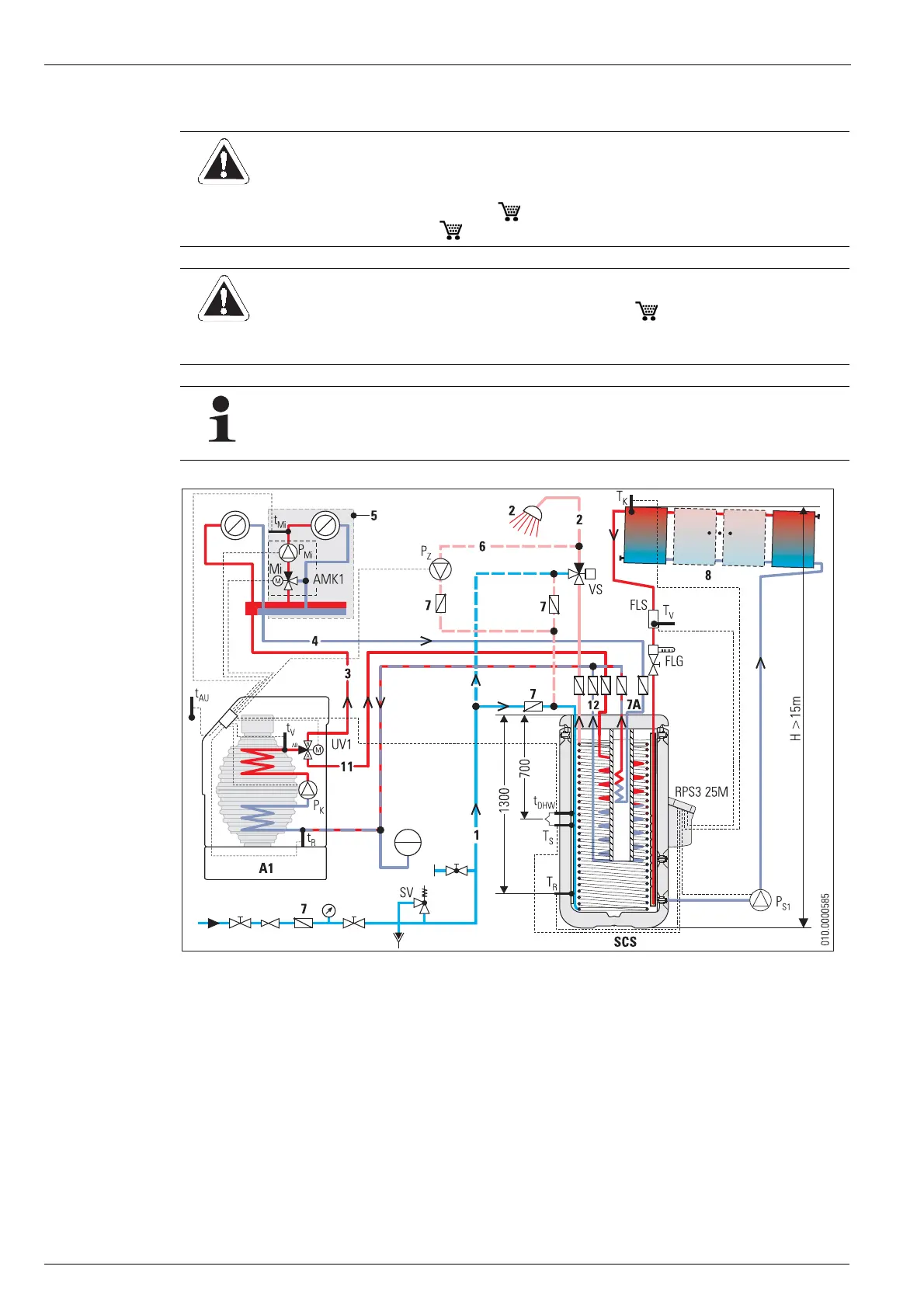

Illustration 7-1 Standard Solaris integration with A1 gas or A1 oil condensing boiler
1)
