Hardware Installation Guide and Reference Installing the Access Point
9
3 Installing the Access Point
Note
● Before installing the device, make sure you have carefully read the requirements described in Chapter 2.

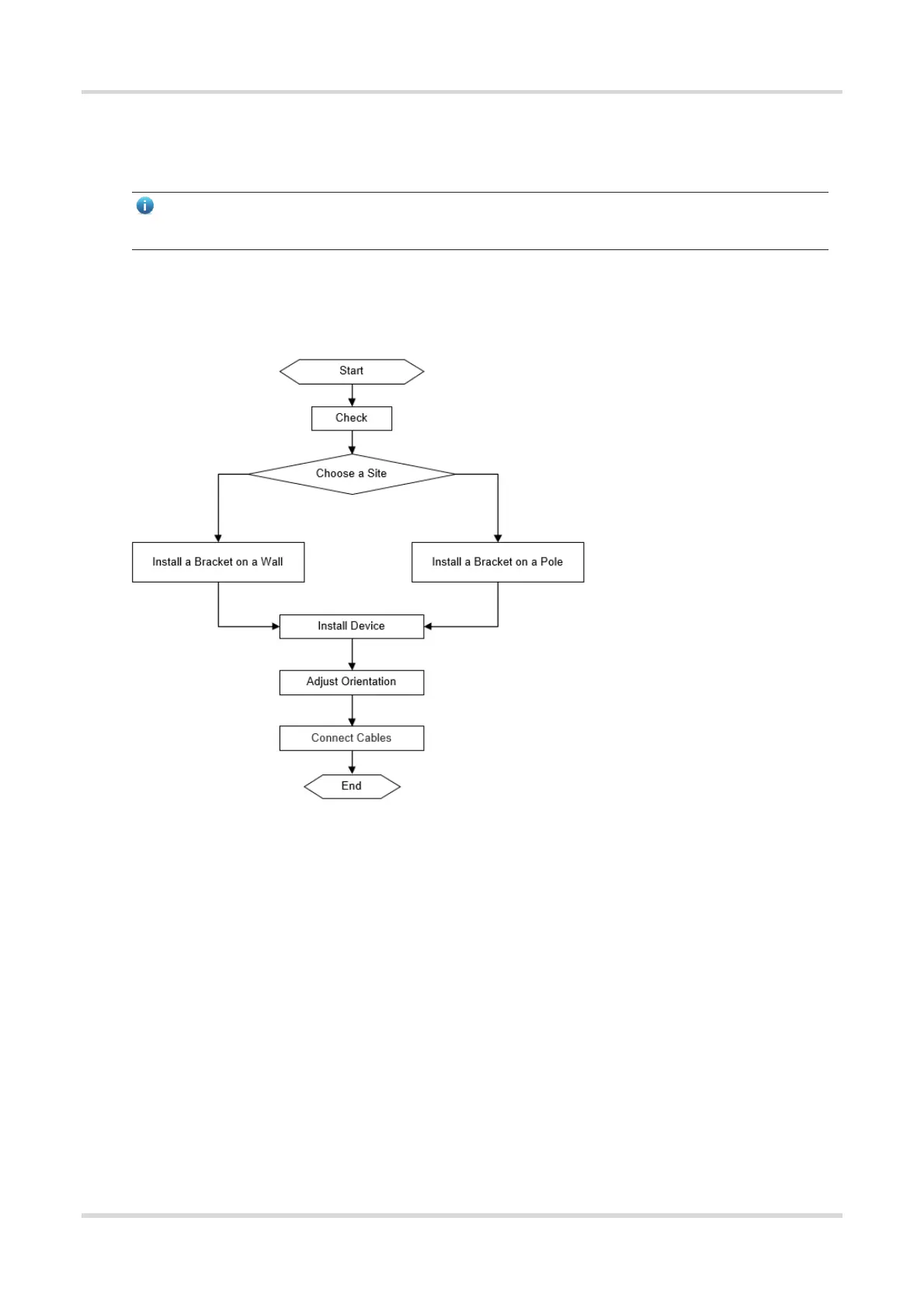

3.1 Installation Flowchart
3.2 Before You Begin
Before you install the AP, verify that all the parts in the package contents are there and make sure that:
The installation site meets temperature and humidity requirements.
The installation site is equipped with a proper power supply.
Network cables are in place.
3.3 Precautions
The outdoor AP can be mounted on a wall and a pole (diameter: 50 mm to 70 mm). If the diameter of the pole is
out of the range, the hose clamp is customer-supplied. In this case, it is recommended that you use a hose clamp
with thickness of 2.5mm at least. The installation site varies due to on-the-spot surveys conducted by technical
personnel.
