Hardware Installation Guide and Reference Installing the Access Point
12

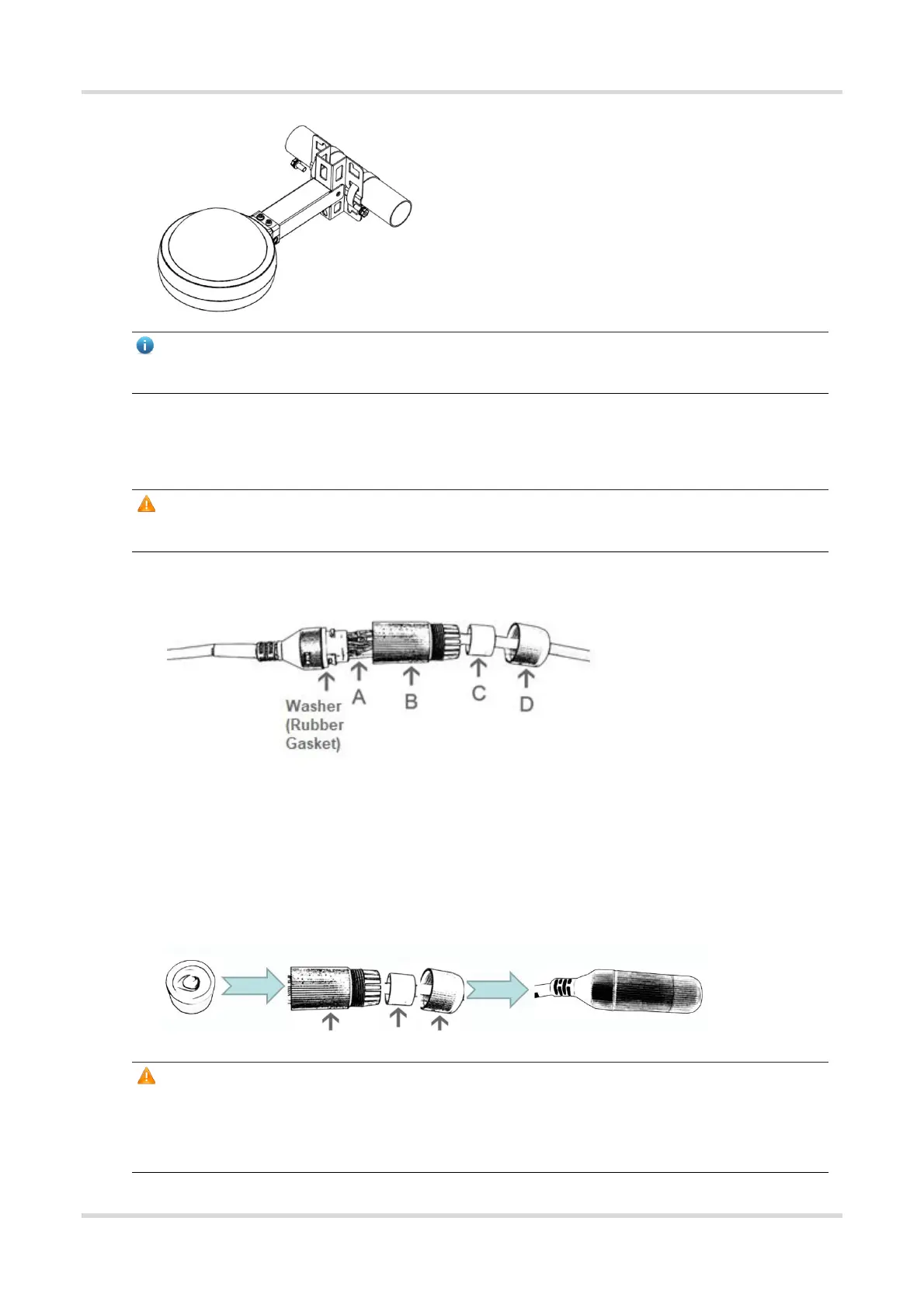

Figure 3-6 Horizontal Pole Mounting
Note
The procedures of horizontal pole mounting are similar to that of vertical pole mounting.
3.5 Connecting Cables
Caution
The waterproof materials are customer-supplied.
1. Trim an Ethernet cable according to the distance between the access point and the power supply.
2. Insert the unterminated end of the Ethernet cable through part D, C and B in sequence.
3. Install an RJ45 connector on the unterminated end of the Ethernet cable with an Ethernet cable installation
tool.
4. Insert the RJ45 connector into the LAN 1/PoE/uplink port of the access point, and tighten part B, C and D in
sequence.
5. If you want to install the cable gland without an Ethernet cable threaded through it, insert the waterproof
rubber rod into the washer (rubber gasket), and tighten part B, C and D in sequence.
Caution
Please ensure that the RJ45 connector is properly inserted. Otherwise, the connector may be damaged when
the waterproof cap is tightened. Before removing the network cable, please remove the waterproof cap first and
then the RJ45 connector.
