Hardware Installation Guide and Reference Installing the Access Point
10
Please make full preparations as described in Chapter 2 and observe the following precautions before installing
the device.
Before connecting the power supply, make sure the external power supply matches the power module of the
AP.
Before connecting the power cord, make sure the power module is turned off.
When connecting the power cord to a binding post, make sure their colors are the same.
Make sure the power supply is properly connected.
3.4 Installing the Device
3.4.1 Wall Mounting
Use the mounting plate and expansion bolts to implement wall mounting.
1. Attach the mounting plate to the wall (ensure that the semicircle opening is downward vertically) and mark
the locations of screw holes. Secure the mounting plate on the wall with M8 x 60 expansion bolts.

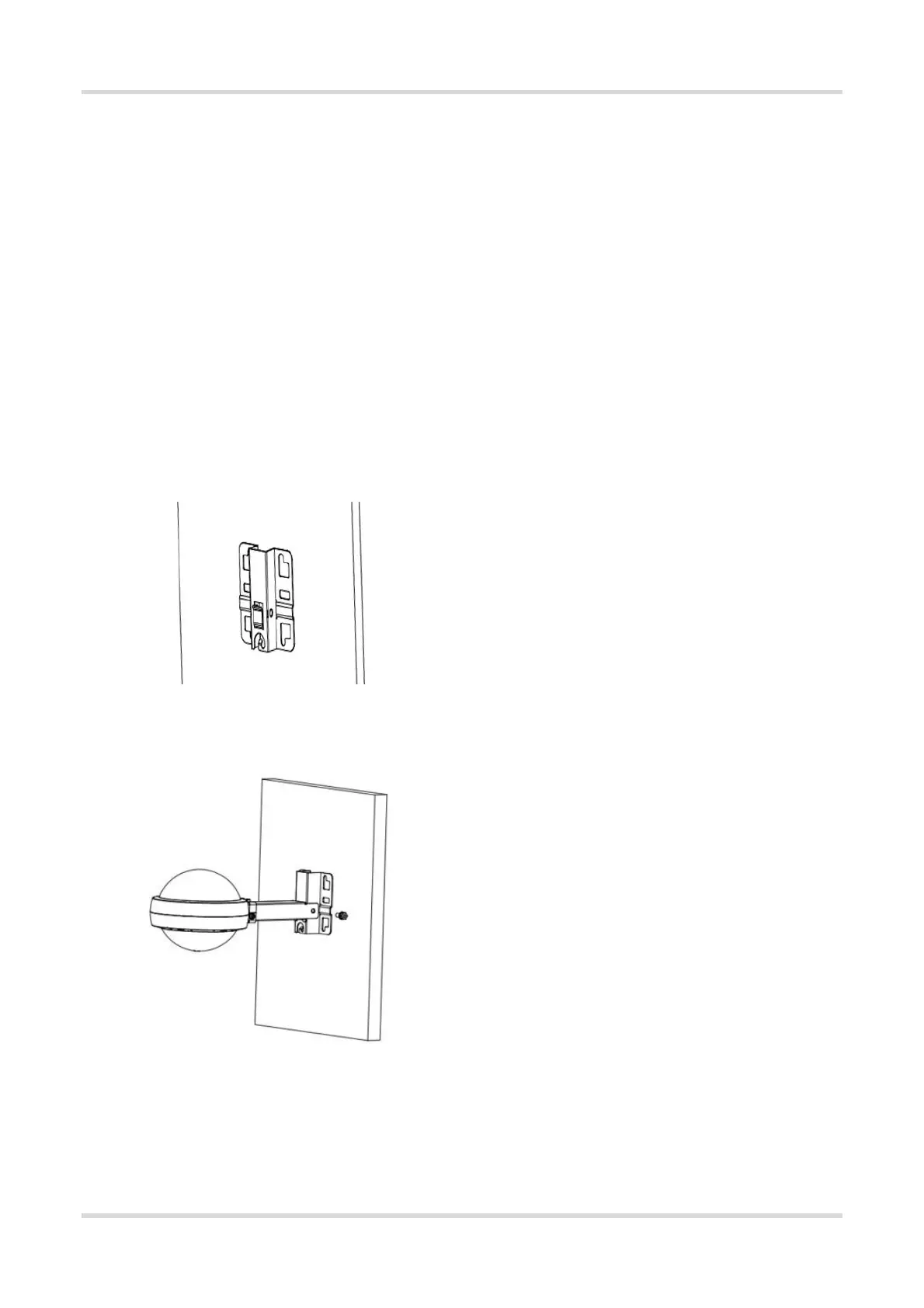

Figure 3-1 Installing the Mounting Plate
2. Install the access point and the connecting rod to the mounting plate on the wall, and tighten the M8 x 20
screws to complete installation.
Figure 3-2 Wall Mounting
3.4.2 Vertical Pole Mounting
1. Secure the mounting plate to the vertical pole by threading two clamps through the mounting plate, and
fasten the clamps with screws.
To Next Page
