16 - English
Fig. 10

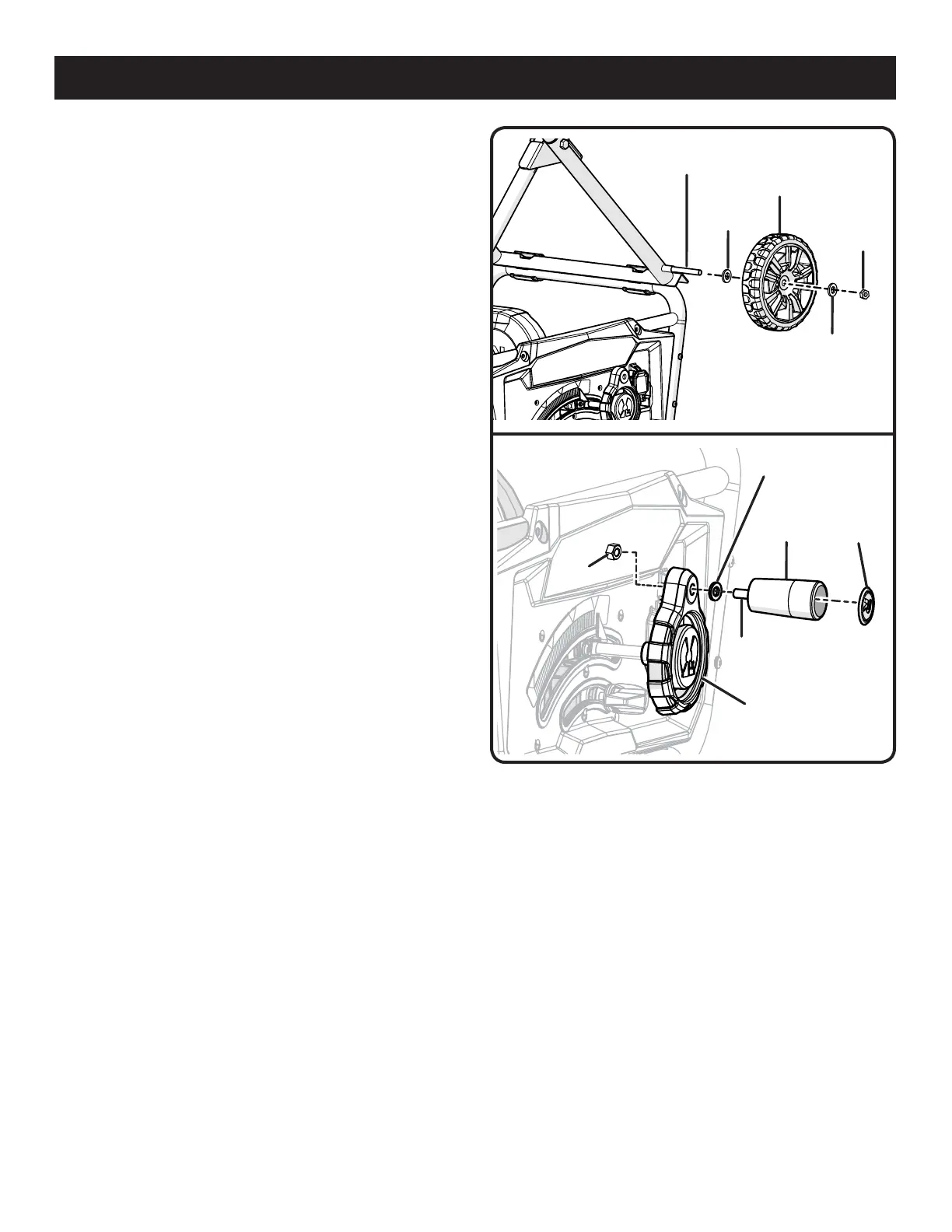

INSTALLING WHEELS ONTO THE STAND
See Figure 9.
Wheel .......................................................................2
Washer .....................................................................4
Hex nut (8 mm) .........................................................2
Slide a washer, a wheel, and another washer onto each
axle.
Thread a hex nut onto the axle and securely tighten, using
a 13 mm hex wrench.
INSTALLING THE HANDLE
See Figure 10.
Remove the hex nut from the bolt in the handle but do
not remove the bolt.
Slide a washer onto the bolt.
Place the nylon hex nut into the recessed hole on the
back of the height/bevel adjusting handwheel and hold
in place.
Insert the handle and screw into the hole on the height/
bevel adjusting handwheel.
Using a flathead screwdriver, turn the screw clockwise
and tighten in place.
Cover the end of the handle with the cap.
Fig. 9
ASSEMBLY
AXLE
WHEEL
WHEEL
WASHER
BOLT
HANDLE
WASHER
WASHER
NUT
NUT
END
CAP
