18 - English
ASSEMBLY
TO OPEN/CLOSE (SET-UP/TEAR DOWN) THE
LEG STAND
See Figure 13.
NOTE: Use the cord wrap on the end of the saw to keep the
cord out of the way when setting up or tearing down the saw.
To open (set-up) the leg stand:
Step 1: Stand the saw on the wheeled end. Open the
latch and unhook it from the crosspiece. Lay the leg
sections flat.
Step 2: Grasp the inner stand support bracket and lift
it until it meets the saw frame. Hook the latch over the
inner stand support bracket and push down until the
latch locks.
Step 3: Make sure the extension table is in the locked
position. Set your right foot against the saw leg to steady
it while you push downward on the top leg and lift the
saw cabinet to set the saw upright.
To close (tear down) the leg stand:
Step 1: Standing to the side of the table saw, place your
left foot against the foot of the saw. Hold the saw table
and grasp the upper saw leg. Make sure the extension
table is in the locked position. Tilt the saw to your left and
lower the saw to the floor until it is balanced on end.
Step 2: Open and release the latch. Allow both leg
sections to lie flat.
Step 3: Grasp the crosspiece and lift both leg sections
so that the crosspiece meets the latch. Hook the latch
into the crosspiece and push the latch back until it locks.

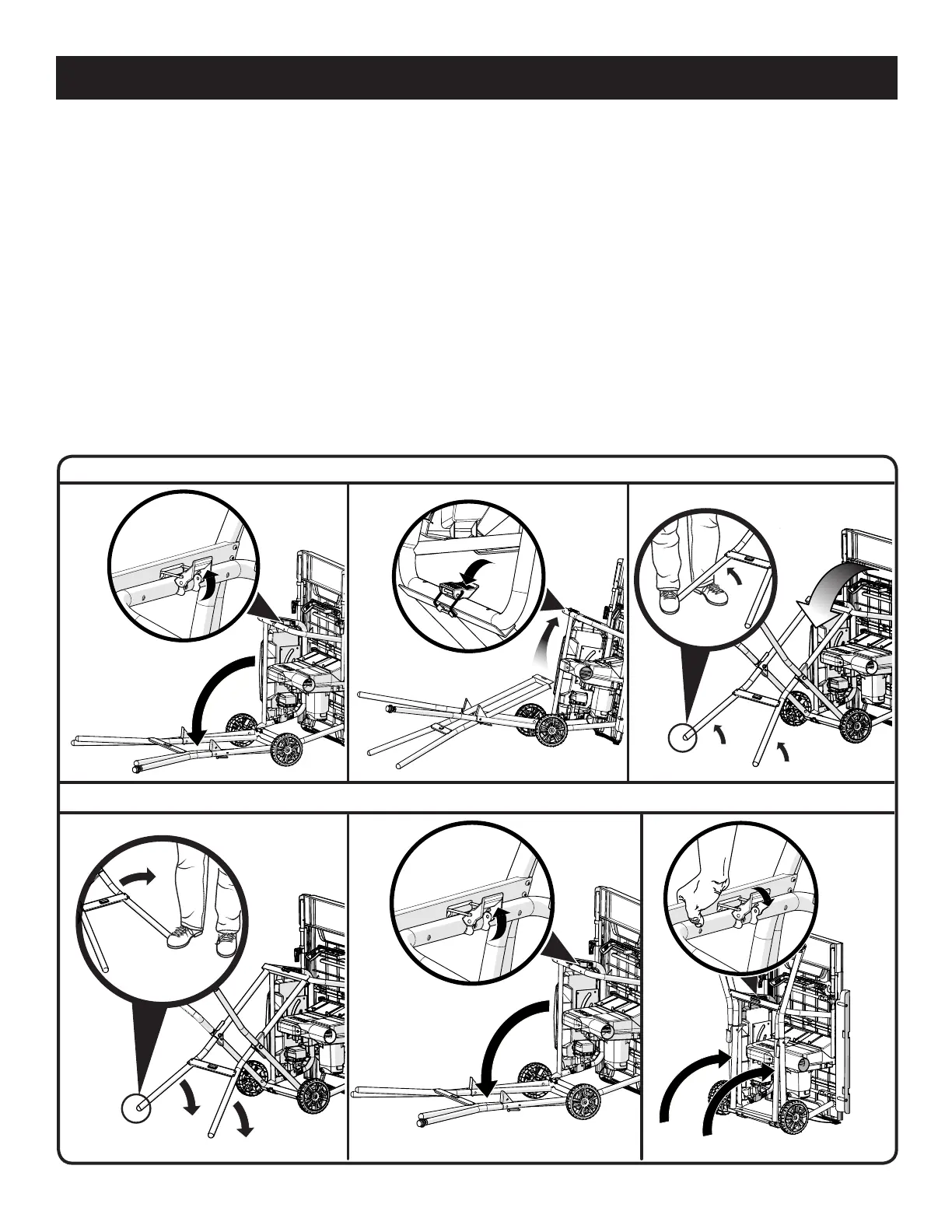

Fig. 13
SET-UP
TEAR-DOWN
