All of the C•que 8’s four channels can be set to operate in two different modes: Stereo and 2 Channel.
Stereo mode is a normal operating mode where all mix inputs from MAIN and INJECT, maintain their stereo image
throughout the signal path to each headphone output. The BALANCE control is used to adjust the stereo image ,
between the Left and Right side. To design a monitor mix in the Stereo mode, follow these steps:
• Press the ST/2CH switch to the OUT position, you’ll notice the switch LED is not illuminated indicating that thde
main input is in STEREO mode.
• Make a Stereo connection from your mixer’s auxiliary or bus outputs to the main Left and Right Line inputs on
the C•que 8’s rear panel.
• In the Stereo mode, the BALANCE control adjusts the loudness between the left and right headphone outputs.
In 2- Channel mode, all mix inputs including MAIN and INJECT are summed to a mono signal. In this mode, the BALANCE
control is used to adjust the loudness between the MAIN and the INJECT input. To design a monitor mix in the 2-Channel
mode, follow these steps:

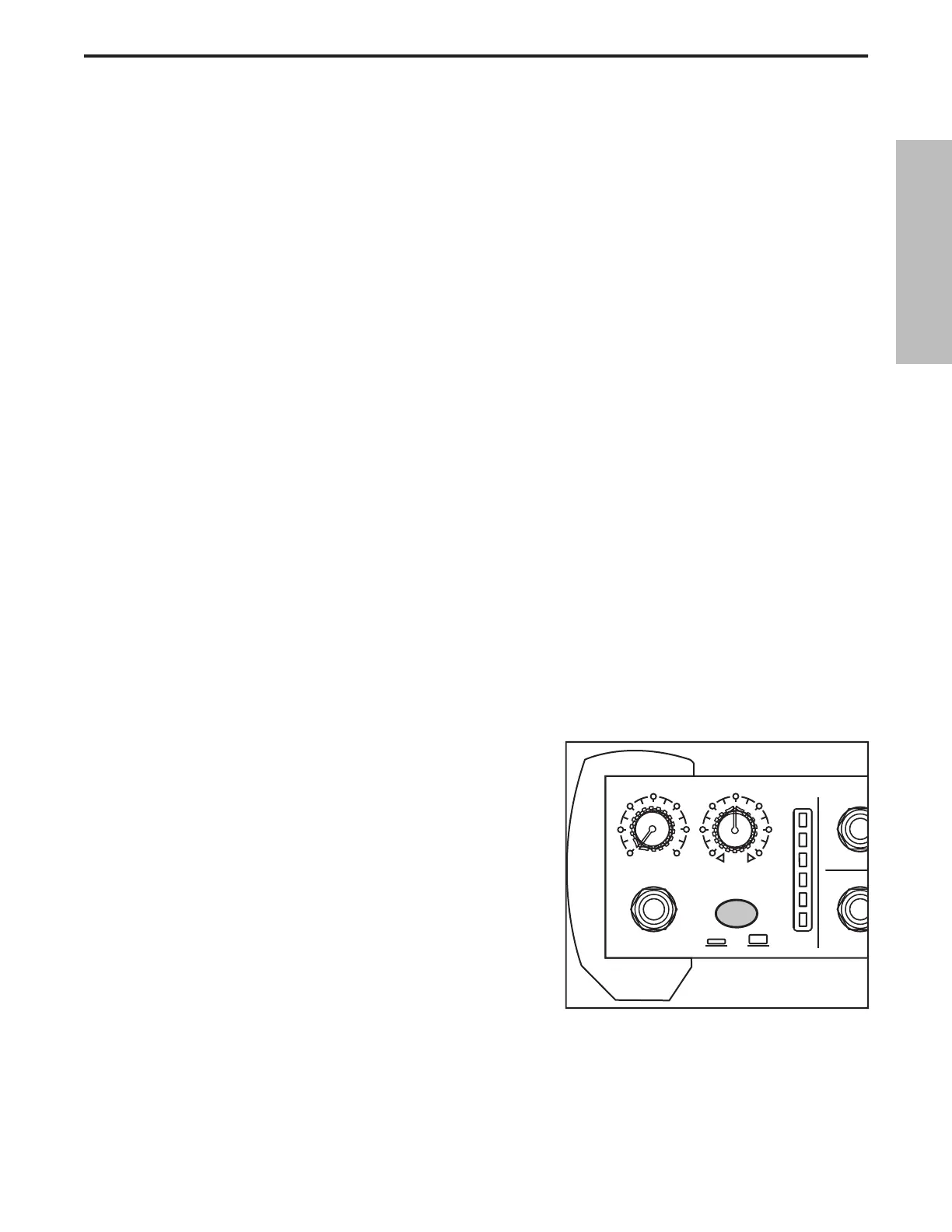

• Press the ST/2CH switch to the IN position, you’ll notice the
switch LED is now illuminated indicating that C•que 8 is in 2-
• Make a Stereo connection from your mixer’s auxiliary or bus
outputs to the MAIN Left and Right LINE inputs on the C•que 8’s
• If a second mix is desired, make a Stereo connection from your
mixer’s auxiliary or bus outputs to the INJECT located on the
• In the 2-CH mode you adjust the mix balance between the
MAIN and the INJECT input by using the BALANCE control in the
MAIN
INJECT
VOLUME BALANCE
2 CH
STEREO
SHAPE
OUT
SHAPE
OUT
CH 1
OL
0
-6
-12
-18
-24
OL
0
-6
-12
-18
-24
CH 1
CH 2
SHAPE
OUT
SHAPE
OUT
OL
0
-6
-12
-18
-24
CH 3 CH 4
4 CHANNEL
HEADPHONE AM
P
CH 2
CH 3
CH 4
VOLUME
VOLUME
VOLUME
VOLUME
0 10
0 1
0
0 1
00 10 L R
0 1
0
