Samsung MWR-WE13N Installation Manual

9
English
9
Installation
Group Control with Your Wired Remote Controller
Group control means that you are using one Wired Remote Controller to control two or more indoor units and
ventilator(ERV) at the same time.

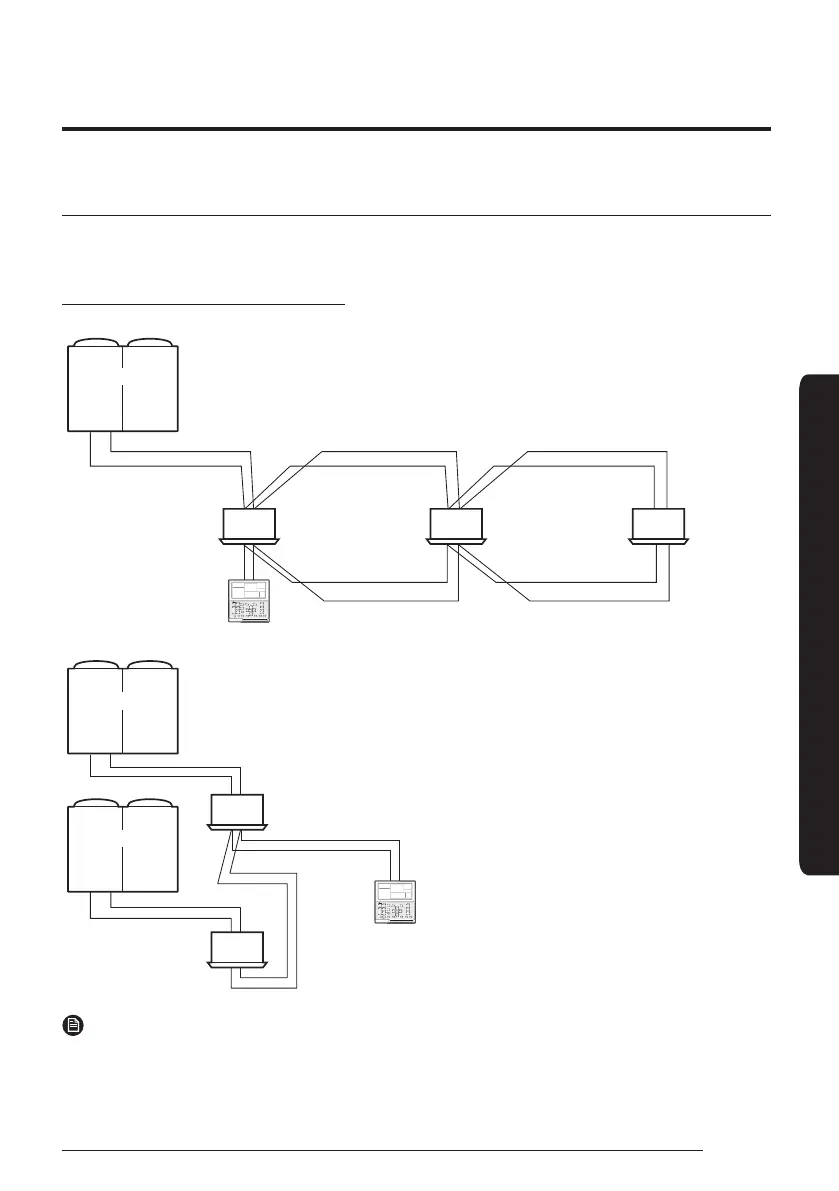

When Connected to an Indoor Unit Only
• Using One Wired Remote Controller to control three indoor Units
COM1 (F1, F2)
COM2 (F3, F4) COM2 (F3, F4)
COM1 (F1, F2) COM1 (F1, F2)
Outdoor Unit
Wired Remote Controller
Indoor Unit Indoor Unit
Indoor Unit
• Using One Wired Remote Controller to control indoor units connected to different outdoor unit
COM1 (F1, F2)
COM2 (F3, F4)
COM2 (F3, F4)
COM1 (F1, F2)
Outdoor Unit
Indoor Unit
Wired Remote Controller
Outdoor Unit
Indoor Unit
NOTE
• Regardless of the indoor unit’s group address (RMC address), only the indoor units connected to COM2 are controlled
in group.
• Regardless of your outdoor units, you can control a maximum of 16 indoor units as a group.
• Address of each outdoor units must be set differently when group control indoor units connected to the other outdoor unit.

Samsung MWR-WE13N Specifications

General

Product type	Controller
Product color	White
Connection type	Wired/Wireless

Weight and Dimensions

Depth	162 mm
Width	236 mm
Height	83 mm
Weight	1150 g
