Chapter 4.
Settings and Upgrade
Upgrading Memory
(Optional)
These descriptions are for models with a memory
compartment cover. For the replacement or upgrade
procedures for the memory of models that do not have a
memory compartment cover, please ask for assistance from
your service center.
There are 1 or 2 memory slots according to the model’s
specication and users can replace the installed memory or add a
new memory.
Replace or install a new memory module only after shutting
the computer down completely and separating the AC
adapter from the computer.
It is recommended to add memory with the same •
specications (the same manufacturer and capacity) as that
of the installed memory.
The images used for the illustration are of a representative •
model, therefore the images may dier from the the actual
product.
Adding or Replacing Memory Modules

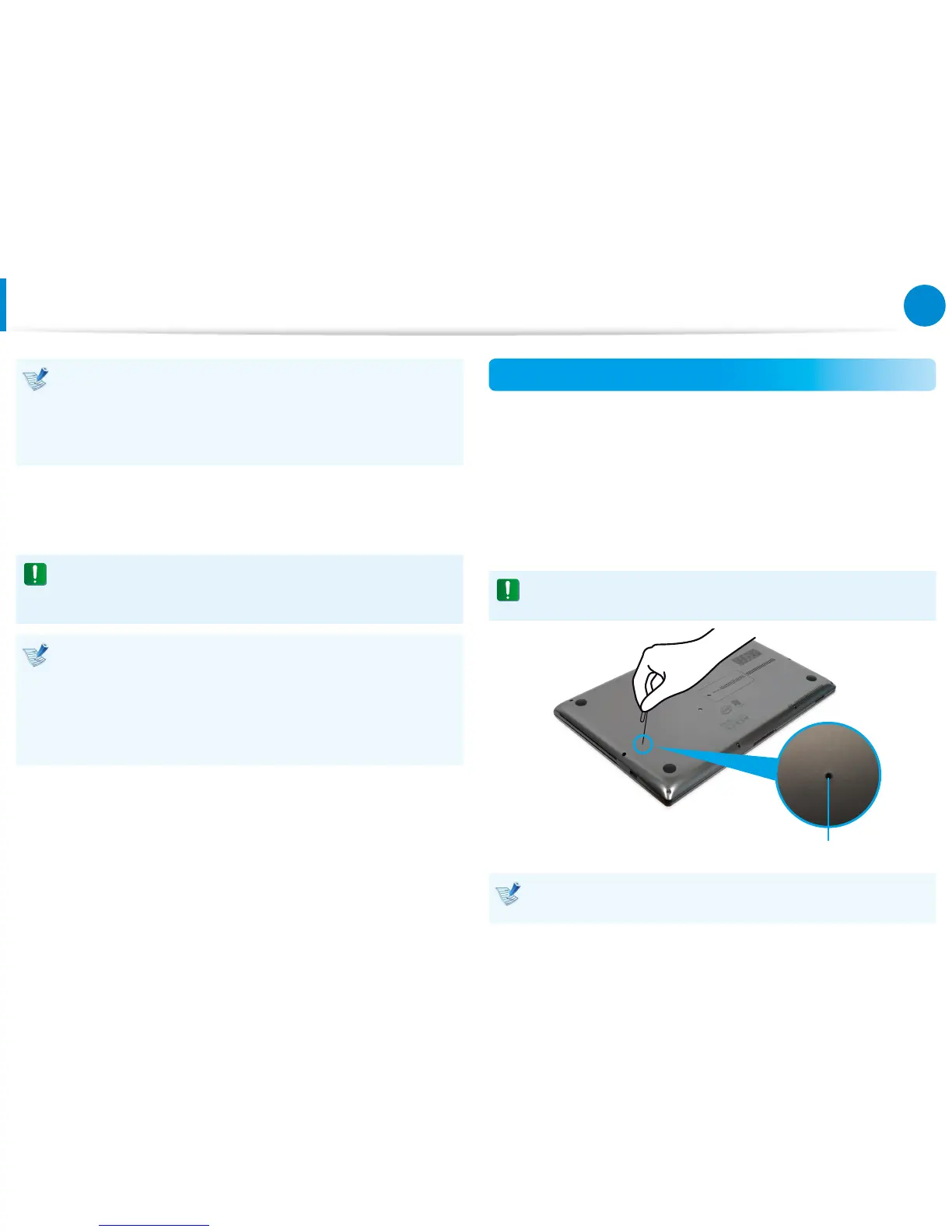

1
Disconnect the AC power adapter after turning o the
computer.
2
Insert an object, such as a paper clip, into the Emergency
Hole at the bottom of the computer to cut the battery power.
If the Power button does not work anymore, that means you
successfully shut the power o.
If you proceed without pressing the Emergency Hole, the
main board and the memory module may be damaged.
Emergency Hole
The location of the Emergency Battery Hole may dier
depending on the model.

Samsung NP700Z5AH Specifications

General

Bus type	DMI
Stepping	J1
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-2450M
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-2400 Mobile Series
Processor socket	-
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	2.5 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	25
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® HM65 Express
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	1000 GB
Compatible memory cards	MMC, SD, SDHC, SDXC
Number of HDDs installed	1
Display diagonal	15.6 \
Display brightness	300 cd/m²
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Graphics card family	AMD, Intel
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 2 + 1 x 4 GB
On-board graphics card ID	0x116
Discrete graphics card model	AMD Radeon HD 6750M
On-board graphics card model	Intel® HD Graphics 3000
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
Audio system	HD
Speaker power	1.5 W
Pointing device	Touchpad
Front camera resolution (numeric)	1.3 MP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	3.0+HS
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Operating system installed	Windows 7 Home Premium
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Cable lock slot type	Kensington
Battery life (max)	- h
Number of battery cells	8
AC adapter power	90 W
Form factor	Clamshell
Product color	Aluminum
Processor code	SR04Z
Processor ARK ID	53452
Processor package size	37.5x37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	238.5 mm
Width	362 mm
Height	23.9 mm
Weight	2290 g
Depth (imperial)	9.3 \
Width (imperial)	14.2 \
Height (imperial)	0.94 \
