3-1
3. Disassembly and Reassembly
3-1. Disassembly and Reassembly of R700
- This document cannot be used without Samsung's authorization -
Part
Name
Figure Description
Main
System

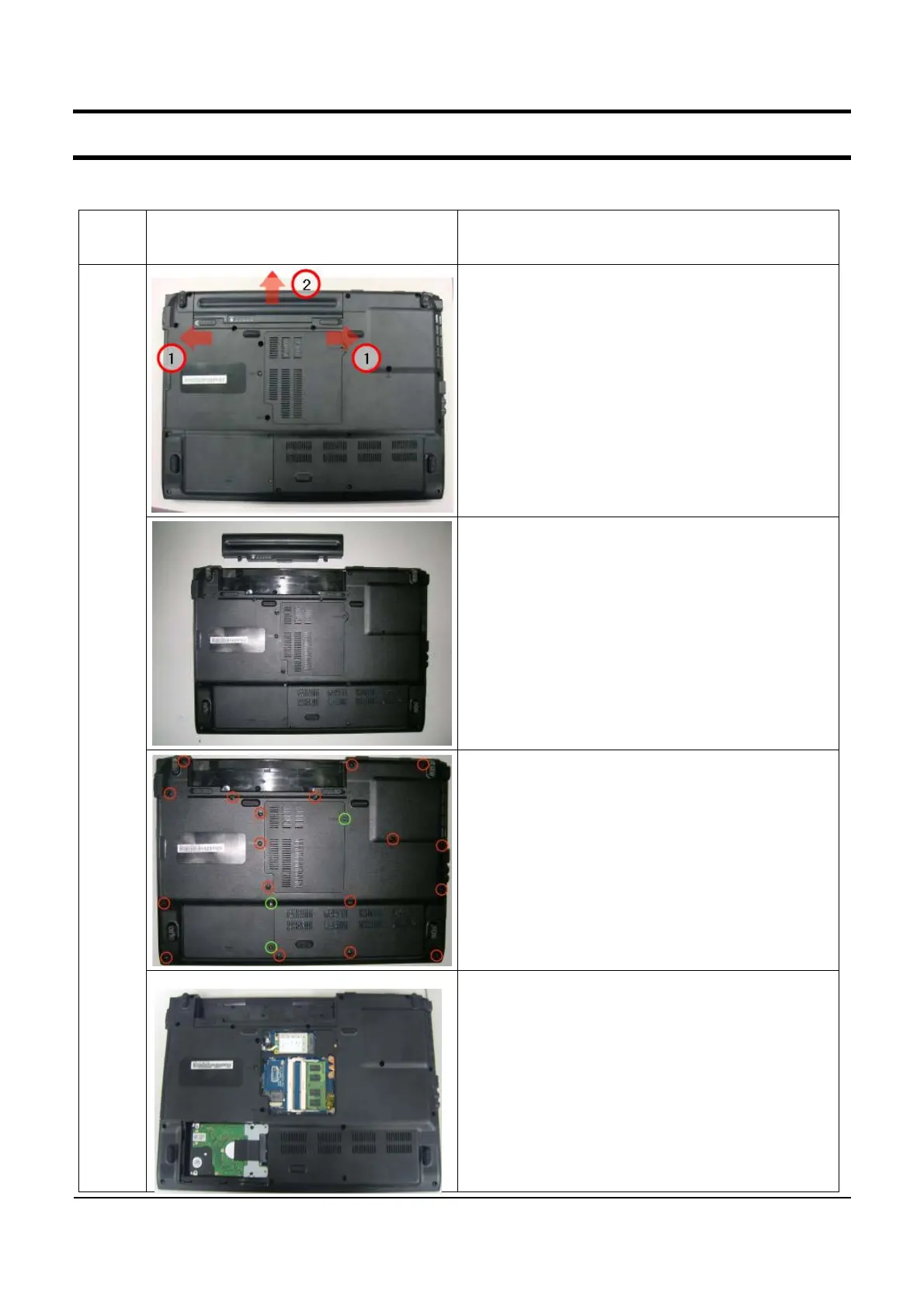

1. Must remove AC Adapter and Battery when
disassembling system.
2. After push knobs to end forward to red
arrows and red mark No.1, Push Battery like red
mark No.2.
3. Have Battery with pushing Battery upward.
4. Remove Bottom Screws.
-M2.6xL8:18EA(RED)
-M2xL4:3EA(GREEN)
5. Separate HDD DOOR
6. Separate MEMORY / MINICARD DOOR.
To Next Page
