13
-
CAUTION:
1.
Do not bend the lever of safety device when opening the Top Plate, otherwise operating
angle of device will be out of specification.
2.
As wires for connecting control parts are placed under
neath the Top Plate, after removing
the Top Plate and reconnecting wires, make sure that the wires are not pinched or stuck
between Frame and the Top Plate.

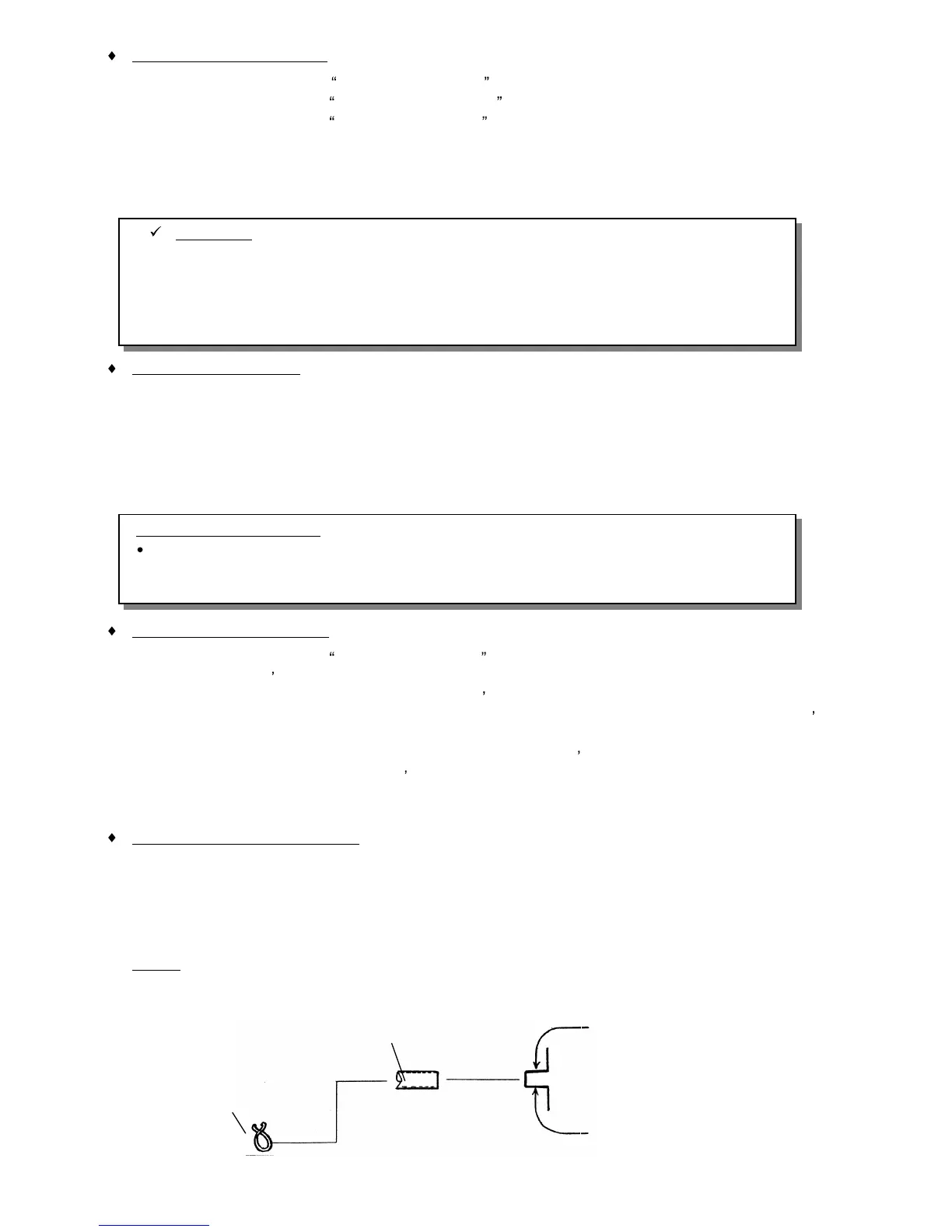

Replacement of Top Plate
(1)
Follow the steps (1) to (2) of Replacing Font Panel .
(2)
Follow the steps (2) to (4) of Replacing Control Plate .
(3)
Follow the steps (1) to (3) o
f Removing Back Plate .
(4)
Take out 4 screws that are holding Top Plate and Frame.
(5)
Tilt the Top Plate backward during lifting it up.
(6)
Once the Top Plate is removed, the Response Switch, Water Pump can be replaced.
(7)
Reverse the order of the steps above to put t
he unit back.
Removing Washer Lid
(1)
Open the washer lid.
(2)
Remove the washer lid during pushing the shaft center of hinge at left, using a plate blade
screwdriver.
(3)
Move the top lid to the left side and lift it up.
(4)
Remove the Hinge Spring from the Wash
er Lid.
(5)
Follow the above steps reversely when you want to assemble them again.
Removing Magnetic Valve
(1)
Follow the steps (1) to (3) of Replacing Back Plate .
(2)
Move Soap Box Ass y.
(3)
Remove two screws that are holding Pour Inlet Ass y and Top Plate.
(4)
With
a screwdriver (
-), carefully remove the edges on both ends (left and right) of the Pour Inlet Ass y
and lift it up. Be careful not to scratch the Top Plate.
(5)
Remove three screws holding Magnetic Valve and Pour Inlet Ass y.
(6)
Pull Magnetic Valve from Pour Inle
t Ass y.
(7)
Follow the above steps reversely when you want to assemble them again.
Replacement of Air Trap Hose
(1)
Remove Top Plate.
(2)
Pull out Air Trap Hose after making sure of no water in Outer Tub. If water remains in Outer Tub, pull
Connection Wire of drain
valve to drain by hand.
(3)
Wipe the surface which the hose will connect to with thinner liquid.
(4)
Apply vinyl chloride type adhesive to the surface of pipe and insert new hose into the pipe completely
Notice
:
Do not cover the end of pipe by making a film of
glue during glue application.
(5)
Fit Hose Band at the middle of the pipe.
Handle of the washer lid
The hooks of the washer lid will be broken if you remove the handle.
When the handle is damaged, the Was
her Lid Assembly containing the handle must be
Pipe for connection ( Outer tub)
Apply vinyl chloride type adhesive
To Next Page
