- 2 -

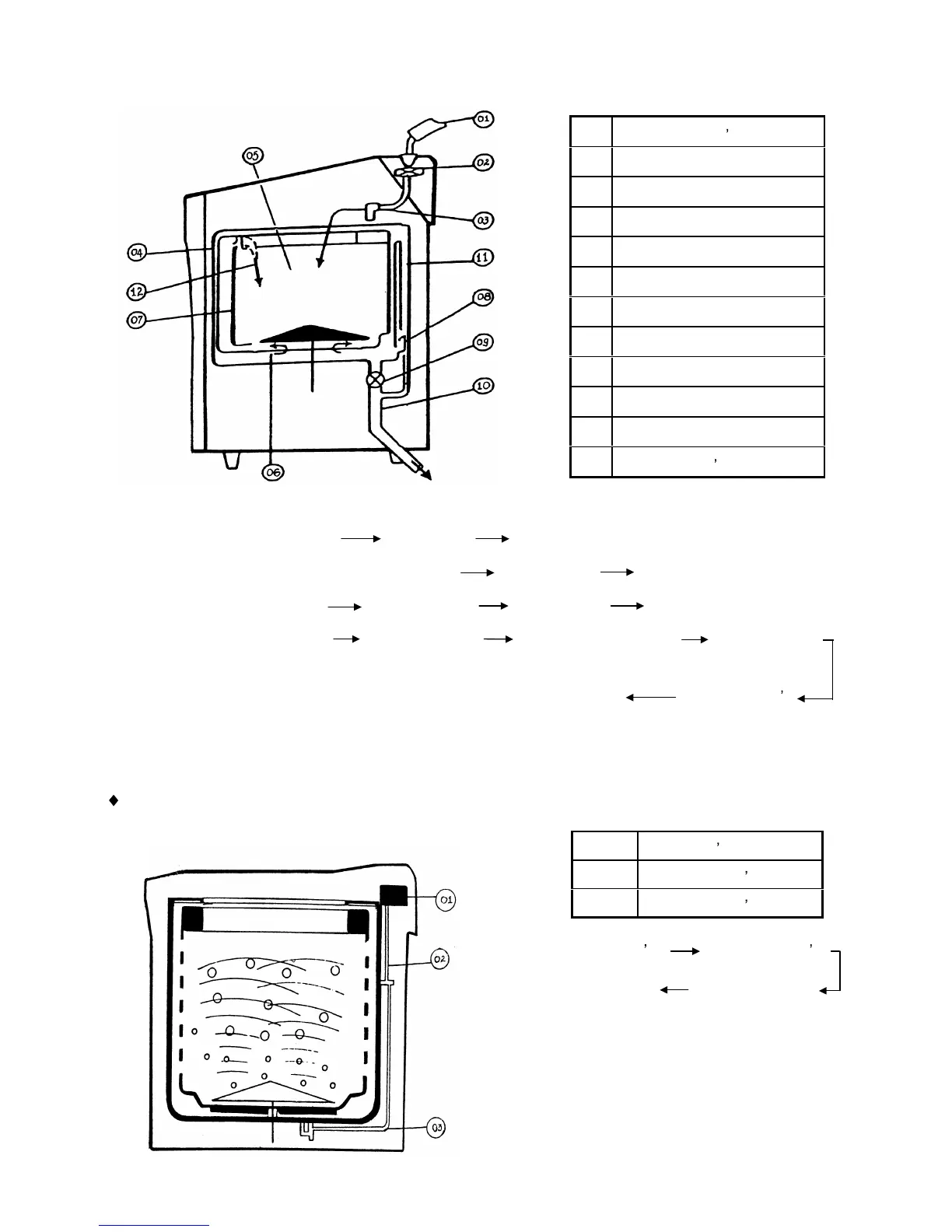

3. Water course diagram
1 Feed Hose Ass y
2 Magnetic Valve
3 Pour Inlet
4 Outer Tub Drum
5 Spin Tub Drum
6 Spin Tub Boss
7 Circulate Hose
8 Air Trap Hose
9 Drain Valve
10 Drain Hose
11 Overflow Hose
12 Lint Filter Ass y
Water supply :
Magnetic Valve Pour Inlet Spin Tub Drum / Outer Tub Drum
Drainage :
Spin Tub Drum / Outer Tub Drum
Drain Valve Drain Hose
Overflow :
Overflow Gate Overflow Hose Drain Valve Drain Hose
Circulation :
Spin Tub Drum Outer Tub Drum Spin Tub Drum bottom
holes
Circulate Hose
Spin Tub Drum Lint Filter Ass y
Air course diagram
01 Pump Ass y
02 Hose joint Ass y
03 Hose joint Ass y
Pum Ass y Hose Joint Ass y
Spin Tub Drum Outer Tub Drum
