Sanyo CP14SE1 User Manual

9

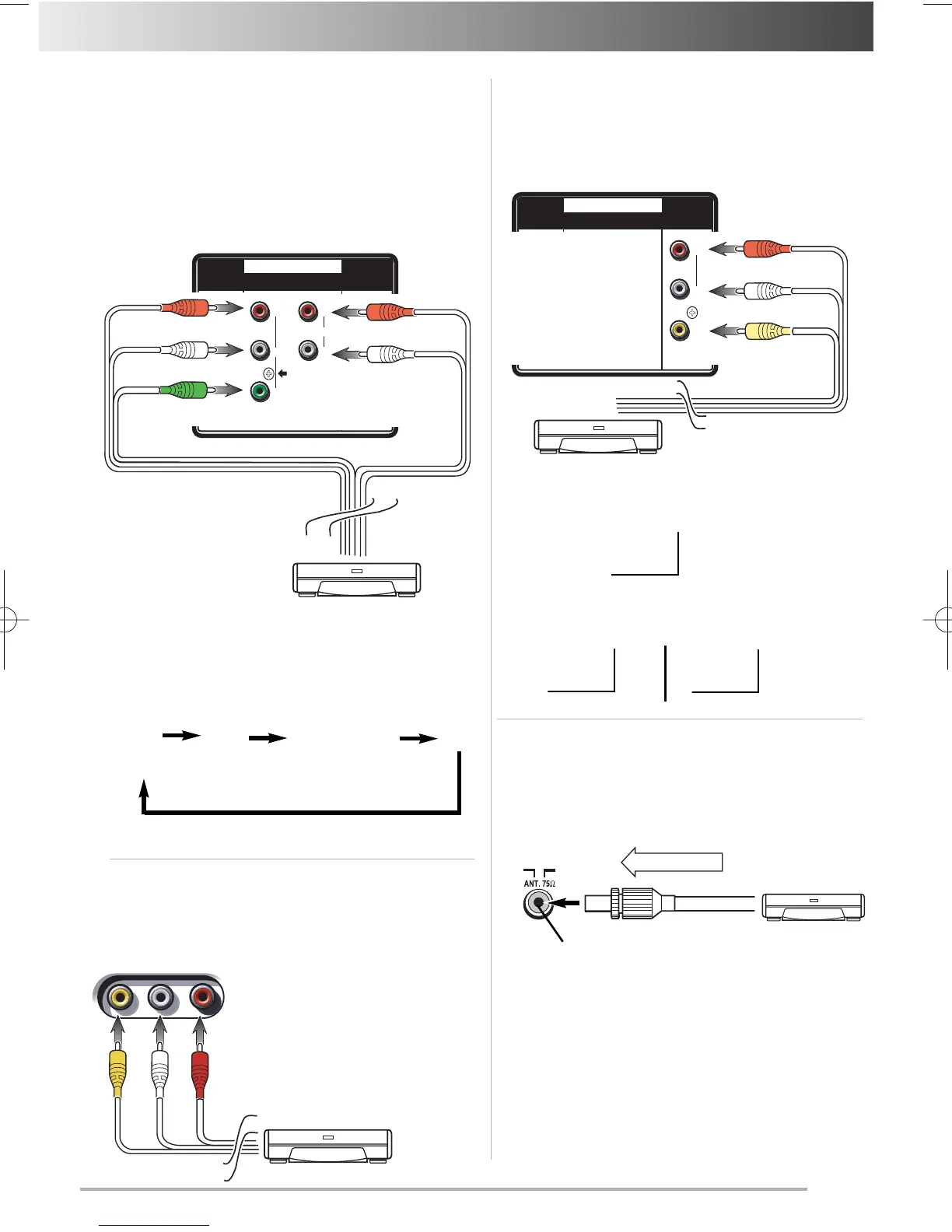

Connecting other Equipment
Connect the component output terminal on your DVD play-
er to the component video input terminal of this product.
(NOTE: When a signal of Y,Cb,Cr/Y,Pb,Pr is received, the
output signal from monitor output terminal will be corre-
sponding but without colour (black and white image).)
Connecting to a DVD Player with AV1
(DVD) Video Component Output Terminal
(Y, Cb or Cr) (optional models)
Y
MONITOR OUT
AV1/DVD
C R
C B
R
L
(MONO)
VIDEO
R
L
INPUT
V
D
E
O
I
Video/DVD Player
To Audio Input-R (AV1)
To Audio Input-L (AV1)
To Input Terminal C
R
To Input Terminal CB
To Input Terminal Y
28
AV1 AV1(DVD)
(TV mode)
AV2
(Optional model)
In this connection status, whenever the TV/AV button is
pressed, the mode will change as follows:
■ Make sure the component video terminal (Y, Cb or Cr)
is connected correctly.
■ To watch a program in this connection status, select
AV1(DVD).
It is convenient to use the AV input jack on the front panel
for equipment that is often connected and disconnected.
Connecting to the Front AV2 Input Jacks
To Audio Input-R (AV2)
To Audio Input-L (AV2)
To Video Input (AV2)
Video/DVD Player
■ To watch the Front video
input picture, select AV2 (AV
position for monaural
models) position by pressing
the TV/AV Selector.
Note: For Monaural models
Do not connect external equip-
ment to both rear and front AV
input jacks to avoid signal mix
and distorted picture.
The picture signal being displayed on the TV screen is out-
put through the Monitor Output Jacks. Use these terminals
to record TV broadcasts and for video dubbing from AV1
or AV2 input terminals.
■ To dub video from the AV1 terminal input, select AV1
position and (for Monaural models select AV position)
by pressing the TV/AV Selector.
■ To record TV programme, select TV mode by
pressing the TV/AV Selector and record the desired
programme.
TV mode
AV1
15
AV
Monaural
models
Connecting to the Monitor Output Jacks
Y
MONITOR OUT
AV1/DVD
C R
C B
R
L
(MONO)
VIDEO
R
L
INPUT
V
D
E
O
I
To Audio Output-R
To Audio Output-L
To Video Output
VCR for Recording
To video and
audio inputs
Connecting to AV Device with TV
Antenna Jack
AV Device
Antenna Jack
PLAY
AV device can be connected to the antenna jack of the
TV set.
To watch programs input from the antenna jack, operate
as follows:
(1) Start on the AV device to play the program.
(2) Select the channel position desired, and start manua
tuning.
See instruction manuals of the relevant AV devices for
details of connection and adjustment.
INST.BB2V 8/19/06 4:02 PM Page 9
