VIDEO
EQUIPMENT
TURNTABLE
(TP-X801)
DC4801

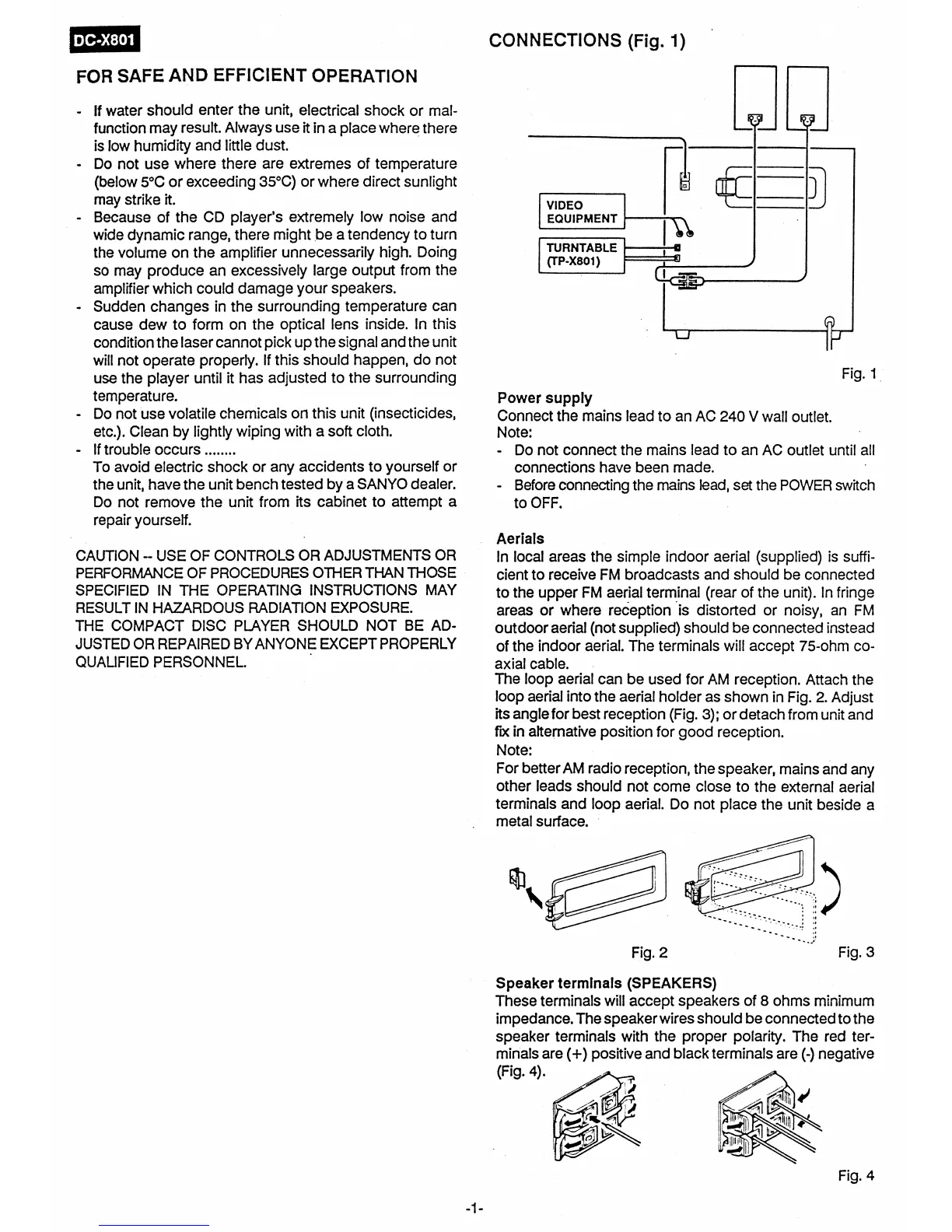

CONNECTIONS (Fig. 1)
FOR SAFE AND EFFICIENT OPERATION
- if water should enter the unit, electrical shock or mal-
function may result. Always use it in a place where there
is low humidity and little dust.
- Do not use where there are extremes of temperature
(below 5°C or exceeding 35°C) or where direct sunlight
may strike it.
- Because of the CD player's extremely low noise and
wide dynamic range, there might be a tendency to turn
the volume on the amplifier unnecessarily high. Doing
so may produce an excessively large output from the
amplifier which could damage your speakers.
- Sudden changes in the surrounding temperature can
cause dew to form on the optical lens inside. In this
condition the laser cannot pick up the signal and the unit
will not operate properly. If this should happen, do not
use the player until it has adjusted to the surrounding
temperature.
- Do not use volatile chemicals on this unit (insecticides,
etc.). Clean by lil wiping with a soft cloth.
If trouble occurs
.....
.
To avoid electric shock or any accidents to yourself or
the unit, have the unit bench tested by a SANYO dealer.
Do not remove the unit from its cabinet to attempt a
repair yourself.
CAUTION — USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED IN THE OPERATING INSTRUCTIONS MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE AD-
JUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED PERSONNEL.
Fig. 1
Power supply
Connect the mains lead to an AC 240 V wall outlet.
Note:
- Do not connect the mains lead to an AC outlet until all
connections have been made.
- Before connecting the mains lead, set the POWER switch
to OFF.
Aerials
In local areas the simple indoor aerial (supplied) is suffi-
cient to receive FM broadcasts and should be connected
to the upper FM aerial terminal (rear of the unit). In fringe
areas or where
reception
is distorted or
noisy,
an FM
outdoor aerial (not supplied) should be connected instead
of the indoor aerial. The terminals will accept 75-ohm co-
axial cable.
The loop aerial can be used for AM reception. Attach the
loop aerial into the aerial holder as shown in Fig. 2. Adjust
its angle for best reception (Fig. 3); or detach from unit and
fix in alternative position for good reception.
Note:
For better AM radio reception, the speaker, mains and any
other leads should not come close to the external aerial
terminals and loop aerial. Do not place the unit beside a
metal surface.
Fig. 2
Fig. 3
Speaker terminals (SPEAKERS)
These terminals will accept speakers of 8 ohms minimum
impedance. The speaker wires should be connected to the
speaker terminals with the proper polarity. The red ter-
minals are (+) positive and black terminals are (-) negative
(Fig. 4).
Fig. 4
-1-
