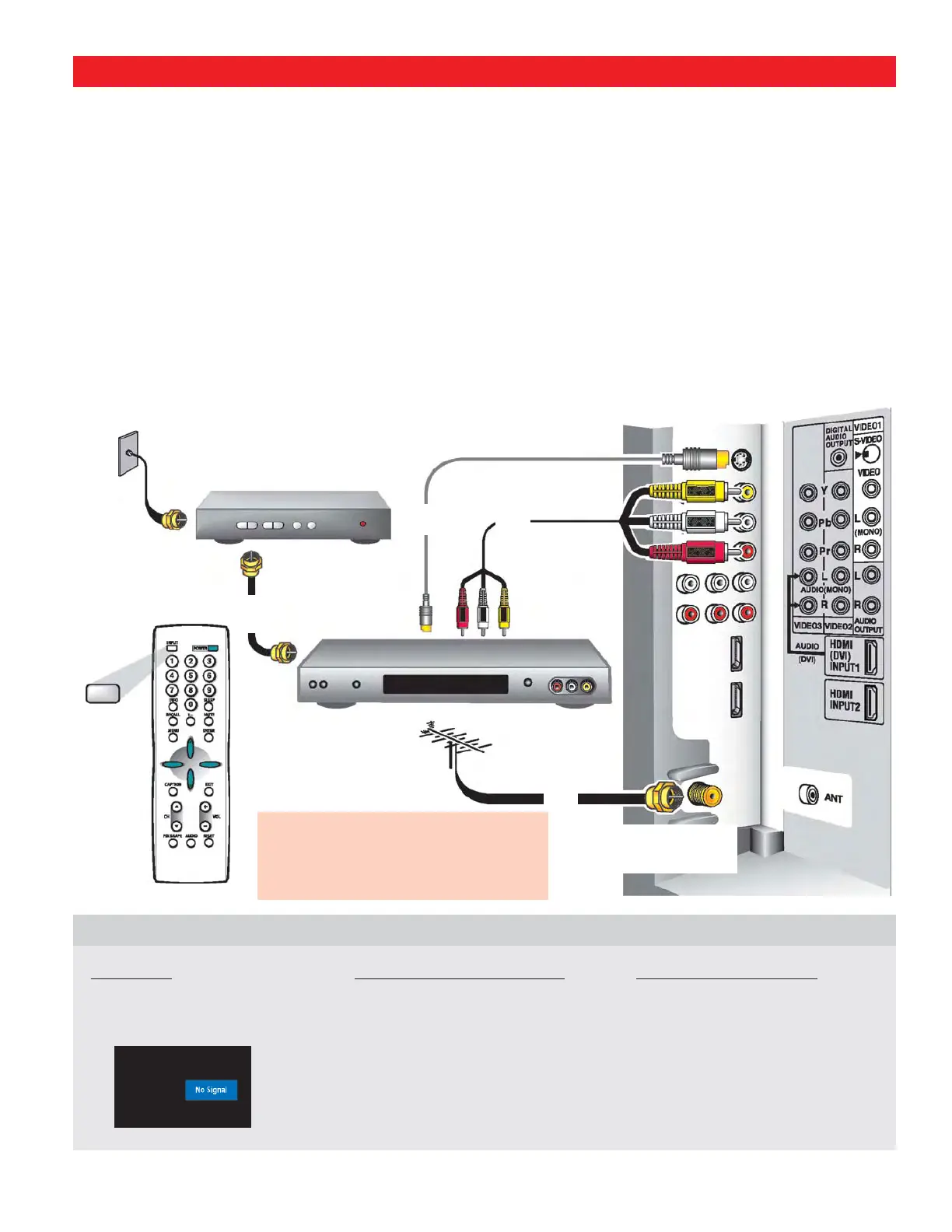

CONNECTING ANALOG CABLE, CABLE BOX, VCR, AND AN ANTENNA TO
THE DTV
VIDEO1 COMPOSITE (ANALOG) JACKS:
Connection Option 1
1
Connect Analog Cable Box “Antenna Out” to the
VCR “Antenna In.”
2
Connect the VCR AV out jacks to VIDEO1 Yellow,
White, and Red jacks.
33
OPTIONAL FOR A SUPER VHS VCR
Connect VCR to the DTV S-Video In Jack. Discon-
nect the VIDEO1 yellow connector.
4
Connect an Antenna to the DTV ANT terminal.
5
Tune VCR to channel 3 or 4 to match your Cable
Box.
6
Press INPUT to select Video 1 to watch Analog
Cable channels OR to TV channels to watch
Antenna channels.
7
Select Cable channels with the cable box remote
control. Select Antenna channels with the DTV
remote control.
IMPORTANT FACTS:
Composite jacks offer only
480i (SDTV) resolution.
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jack.
Check Audio/ Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
CABLE BOX
DTV ANALOG/DIGITAL
ANTENNA IN (ANT)
OPERATING TIP:
Refer to the owner’s manuals and user’s
guides that came with your external
equipment for connection options.
CABLE SYSTEM
(Service provider)
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
DTV VIDEO1
YELLOW,
WHITE, & RED
AV JACKS
ANTENNA
VCR
REMOTE CONTROL
INPUT
S-VIDEO JACK
(Optional)
