1
Connect DVD Player or similar digital equipment’s
Component Video Out to the DTV’s Video INPUT3
jacks.
2
Connect DVD Player or similar digital equipment’s
Audio Out to the DTV’s INPUT3 Audio jacks.
3
Press POWER to turn on the DTV, then turn on
external equipment.
4
Press INPUT to select Video3 to view the DVD
program.

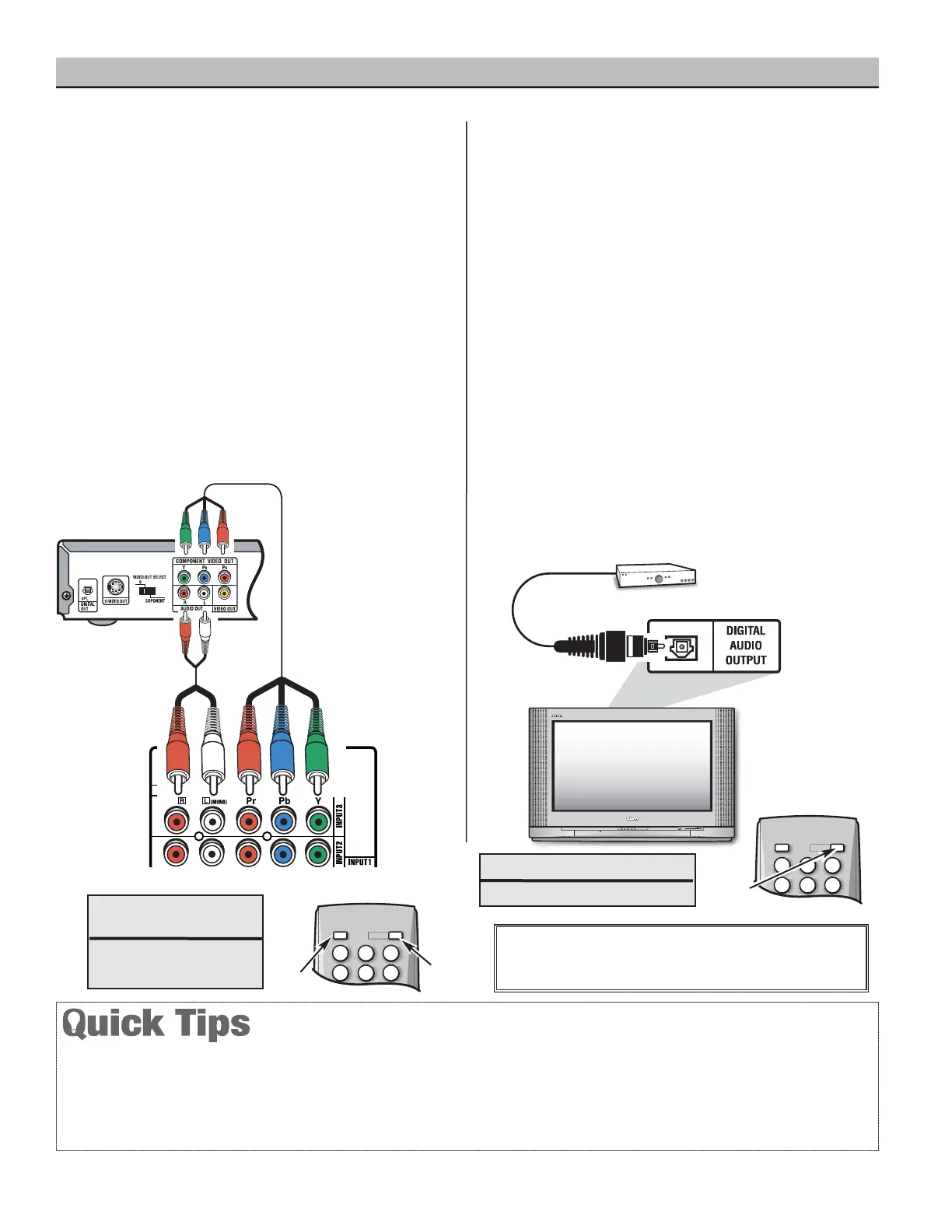

USING COMPONENT JACKS TO
CONNECT A DVD PLAYER OR OTHER
DIGITAL EQUIPMENT
The Component Video jacks will accept HDTV, EDTV, or
SDTV video content.
Switch off DTV and external equipment before connect-
ing cables. (Cables are not supplied.) Follow these steps
to easily connect your STB or DVD Player to this DTV:
DVD PLAYER
(or similar
digital device
such as a
Digital
Satellite
Receiver.)
DTV BACK
COMPONENT
JACKS
1
What you will need
for connections:
Component Video Cable – 1
Audio Cable – 1
DIGITAL AV CONNECTIONS
INPUT2 and INPUT3 jacks have identical functions. Compatible
video devices can be connected to either set of jacks.
Press the INPUT key after connecting the cables, to select the
Video2 or Video3 input signal. There is NO need to tune to a blank
channel.
“
No Signal” will appear randomly on the screen when no signal is
detected at the INPUT2 or INPUT3 inputs.
Position your DTV at least 2 feet from stereo speakers. The magnets
in the speakers may affect the picture quality.
2
CONNECTING DIGITAL AUDIO OUT
JACK TO A MULTI-CHANNEL
RECEIVER
Dolby
®
Digital Audio provides 5.1 channels of surround
sound (five full-range channels [5] and one low-frequency
effect channel [.1]). A fiber optics cable is used to carry
the 5.1 surround sound (for low-noise signal transfer).
BACK
VIEW OF
DTV
OPTICAL
DIGITAL CABLE
1
Using a Fiber Optics cable, connect the DTV’s Digital
Audio Output to the Digital Audio Input of a Multi-
Channel Receiver. (Fiber optics cable is not supplied.)
2
Press POWER to turn on the DTV, then turn on
external equipment.
NOTES:
When making the connection, do not pinch or kink the fiber
optics cable.
Red light visible at the Digital Audio Output does not nec-
essarily indicate that Dolby
®
Digital 5.1 audio is available.
Digital audio is made up of light pulses that the human eye
cannot detect. Dolby
®
Digital 5.1 audio is available at the
Digital Audio Output only when received as part of a Digital
signal.
What you will need for connections:
Optical Cable – 1
MULTI-CHANNEL
RECEIVER
1
10
