NOTES:
Don’t be fooled by the phrase
“Available in High-Definition.”
Composite jacks offer only 480i
(SDTV) resolution.
To view available High-Defini-
tion (HD) programs, you must
connect your HD equipment to
the Component or HDMI jacks.
11
Need help?
Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

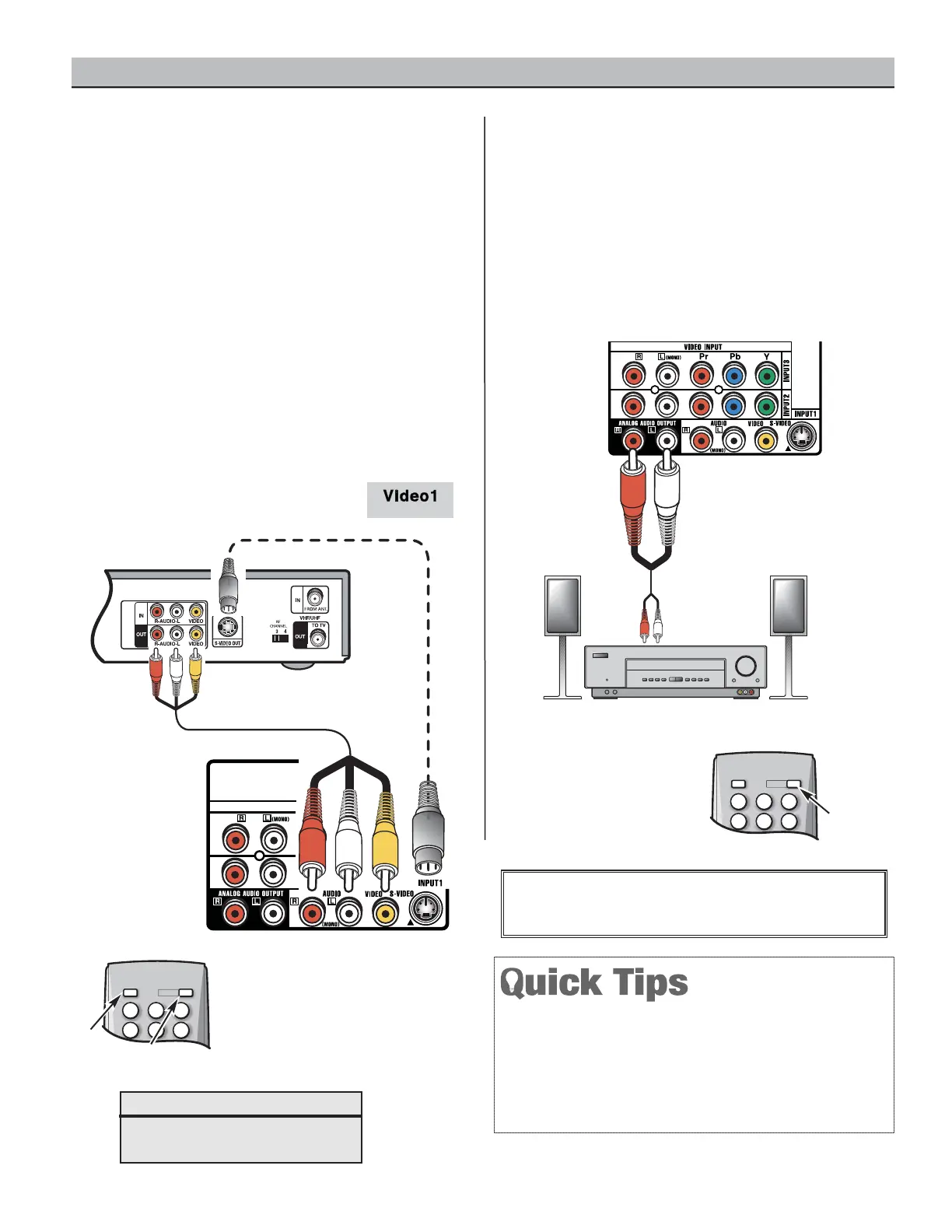

ANALOG AV CONNECTIONS
USING THE ANALOG VIDEO JACKS
TO CONNECT A VCR (OR OTHER
ANALOG DEVICE)
Switch off DTV and external equipment before connect-
ing cables. (Cables are not supplied.)
BACK VIEW OF VCR
DTV AV
INPUT
JACKS
1
Connect VCR’s Audio Video Out to the DTV’s
INPUT1 jacks.
NOTE: For Mono VCR (Single Audio Jack), connect VCR
Audio Out to DTV Audio (L) Input.
22
Optional
Connect VCR’s S-Video Out to the DTV's S-Video In
Jack.
NOTE: S-Video jack connections override INPUT1 Video
jack connection.
3
Press POWER to turn on the DTV, then turn on
external equipment.
4
Press INPUT to select Video1 to
view the VCR program.
What you will need for connections:
Audio Video Cable – 1
S-Video Cable – 1
S-VIDEO
JACK
22
1
CONNECTING ANALOG AUDIO OUT
JACKS TO A STEREO AMPLIFIER
Switch off DTV and external equipment before connect-
ing cables. (Cables are not supplied.)
STEREO AMPLIFIER
BACK VIEW
OF DTV
1
Connect the DTV Audio Out (R/L) to the Stereo
Amplifier In (R/L).
2
Press POWER to turn on the DTV, then turn on
external equipment.
NOTE:
Do not
connect external speakers directly to the DTV.
1
Press the INPUT key after connecting cables to access the Video1
input. There is NO need to tune to a blank channel.
“No Signal” will appear randomly on the screen when no signal is
detected at the INPUT1 video jack.
Position your DTV at least 2 feet from stereo speakers. The magnets
in the speakers may affect the picture quality.
