FREEZER COMPONENTS

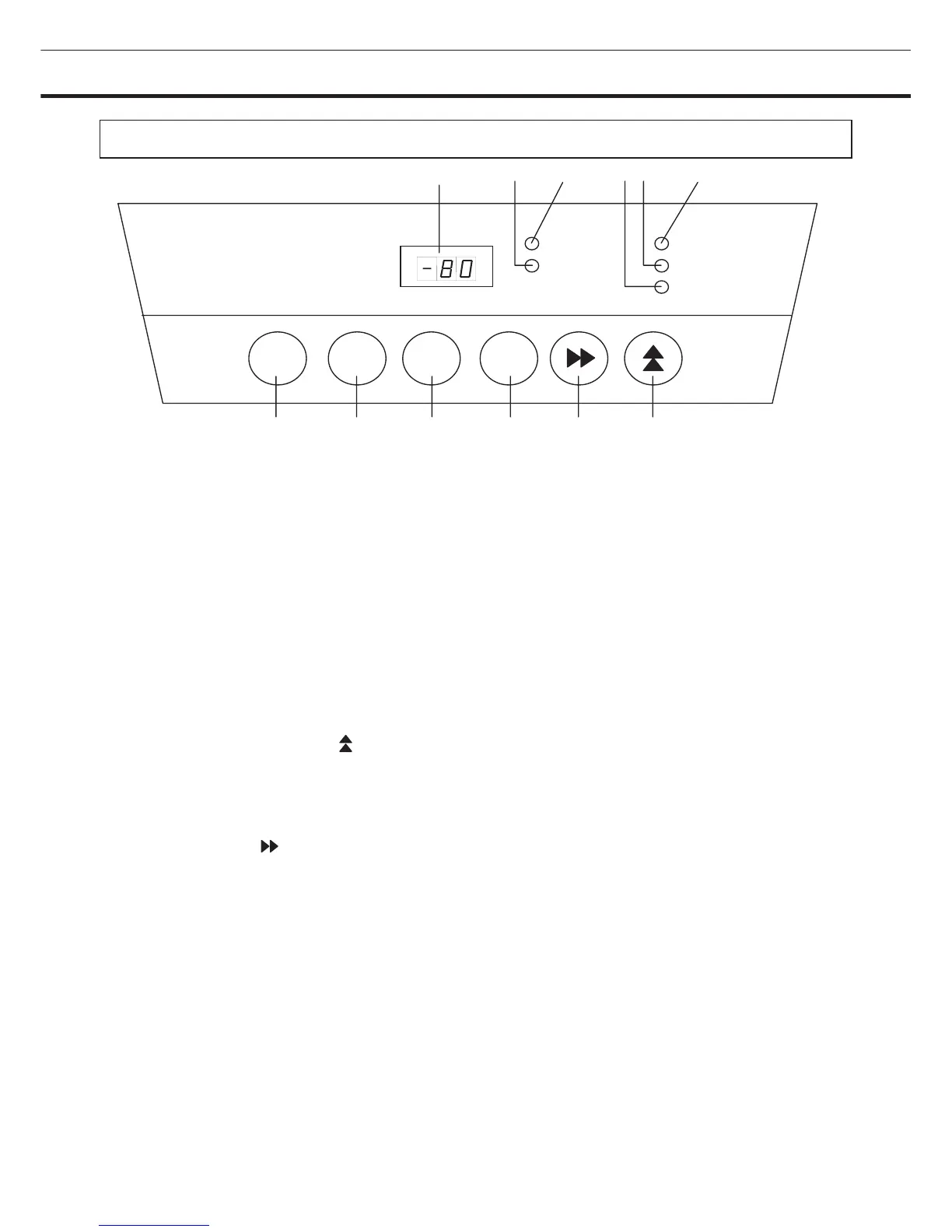

Control panel
1. Digital temperature indicator: This indicator shows the present chamber temperature or set
temperature.
2. Status monitor lamp (STATUS): This lamp lights when environmental condition or status gets worse
or the unit is out of normal operation.
3. Battery check lamp (BATTERY): This lamp lights to recommend the battery replacement. This lamp
blinks when a fan motor is maintained. For the replacement, consult Sanyo sales representative or agent.
4. Door check lamp (DOOR): This lamp lights when the door is open.
5. Alarm lamp (ALARM): This lamp is flashed during alarm condition.
6. Filter check lamp (FILTER): This lamp lights when the excessive dust is accumulated on the
condenser filter. When this lamp lights, clean the condenser filter following the procedure on page 22.
7. Numerical value shift key ( ): Pressing this key in the setting mode causes the numerical value to
shift. “ON-OFF” of key lock can be selected by pressing this key in the key lock mode. By pressing this
key for more than 5 seconds in the temperature display mode leads setting mode for alarm temperature,
alarm resume time ,compressor delay time and door alarm delay time. Refer to page 14,15,16,19 and
20 for details respectively.
8. Digit shift key ( ): Pressing this key in the setting mode causes the changeable digit to shift. Key
lock is available by pressing this key for more than 5 seconds in the temperature display mode. Refer to
page 14 for details.
9. Set key (SET): Temperature setting mode is led by pressing this key and the changeable digit is
flashed. By pressing this key again, the setting is memorized. The set mode returns to the temperature
display mode automatically when 90 seconds has passed without any key operation. Refer to page 14
for details.
10. Status key (STATUS): By pressing this key in the event of the status monitor lamp ON, the status
code is displayed on the digital temperature indicator. This key is not effective when the freezer is
running normally. See page 18 for details.
11. Alarm test key (ALARM TEST): To check the alarm system during freezer operation. Pressing
this key with the battery switch ON gets the alarm lamp to flash, the remote alarm to operate, and the
buzzer to sound.
12. Buzzer stop key (BUZZER): To silence the audible alarm under alarm condition, press this key.
The buzzer during alarm test cannot be silenced by this key.
12
ULTRA LOW
BATTERY
STATUS
FILTER
A
LARM
DOOR
TEMPERATURE
(
o
C
)
BUZZER
ALARM
TEST
STATUS SET
11 10 9 8
7
1 32 654
