- 81 -
35
MOUNTING OF LAN INTERFACE BOARD (OPTION)
By installing an LAN interface board (MTR-L03), the log data can be transmitted to a PC. The mounting
procedure is as follows:

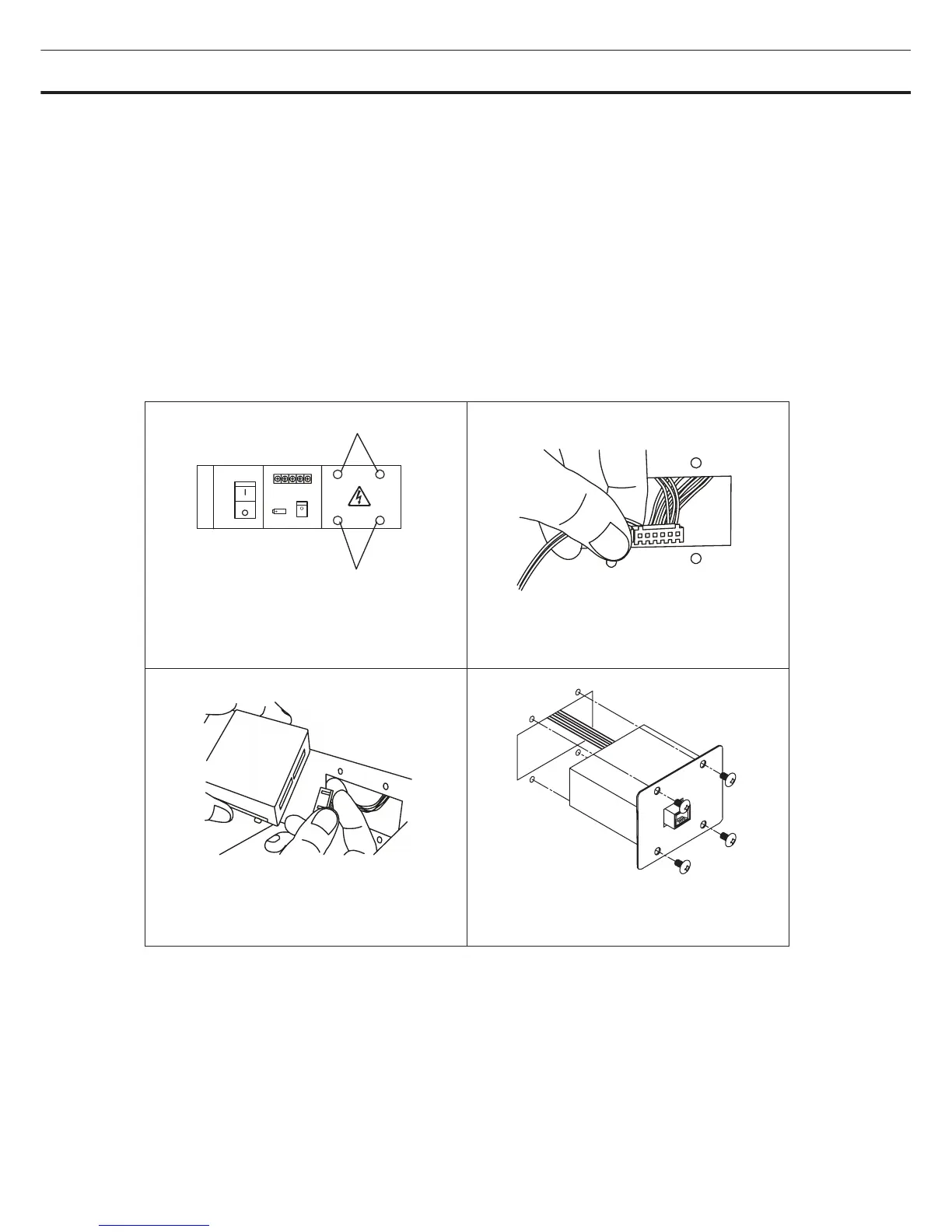

1. Remove 4 screws of the communication box hole cover in the control panel. (Fig. 1)
2. Provide an LAN interface board (MTR-L03) code from the fitting hole. (Fig. 2)
3. Connect to the connector side (the back side of the LAN interface board) of a connector cable to use
for the LAN interface board (MTR-L03). (Fig. 4 is a connection example to use) (Fig. 3 and Fig. 4)
5. Fix an LAN interface board (MTR-L03) on the control panel with 4 screws.
Note:
The connecting cable between the PC and MTR-L03 terminal is not enclosed. Provide a cross type
cable of less than 100 m length having a pin plug.
Fig. 2
Fig. 3
Fig.1
Fig. 4
Screw
Screw
ON
OFF
To Next Page
