15
Installation
Projection angle can be adjusted up to 11.8 degrees with the
adjustable feet.
Lift the front of the projector and pull upward the feet lock
latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to adjust the position and tilt.
2
To retract the adjustable feet, lift the front of the projector
and pull and undo the feet lock latches.
Keystone distortion of the projected image can be adjusted
automatically with Auto Setup function or manually with the
remote control or the menu operation. (p24, 25, and 42)
3
Adjustable Feet
✔Note:
• The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown above are approximate and may vary from the actual size.

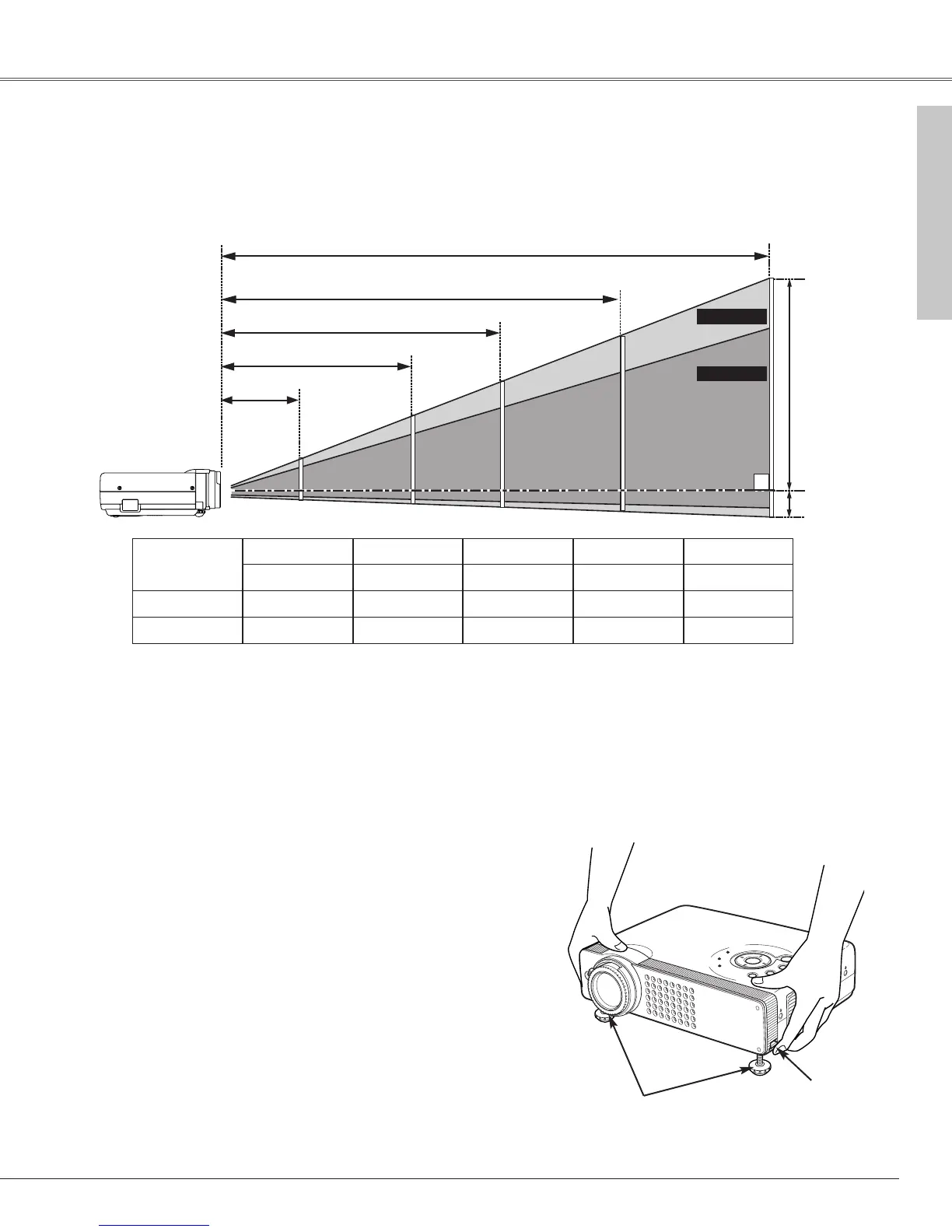

Positioning the Projector
Installation
25.3' (7.7m)
16.4' (5.0m)
12.5' (3.8m)
8.2' (2.5m)
Max. Zoom
Min. Zoom
A : B = 9 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
40”
Zoom (max)
813 x 610
4.9' (1.5m)
3.3' (1.0m)
100”
2032 x 1524
12.8' (3.9m)
8.2' (2.5m)
150”
3048 x 2286
19.3' (5.9m)
12.5' (3.8m)
195”
3962 x 2972
25.3' (7.7m)
16.4' (5.0m)
300”
6096 x 4572
––-––
25.3' (7.7m)
(Inch Diagonal)
3.3' (1.0m)
This projector is designed to project on a flat projection surface and can be focused from 3.3’(1.0m) - 25.3’(7.7m). Refer to
the figure and the table below for the screen size and the distance between the projector and the screen.
(Center)
To Next Page
