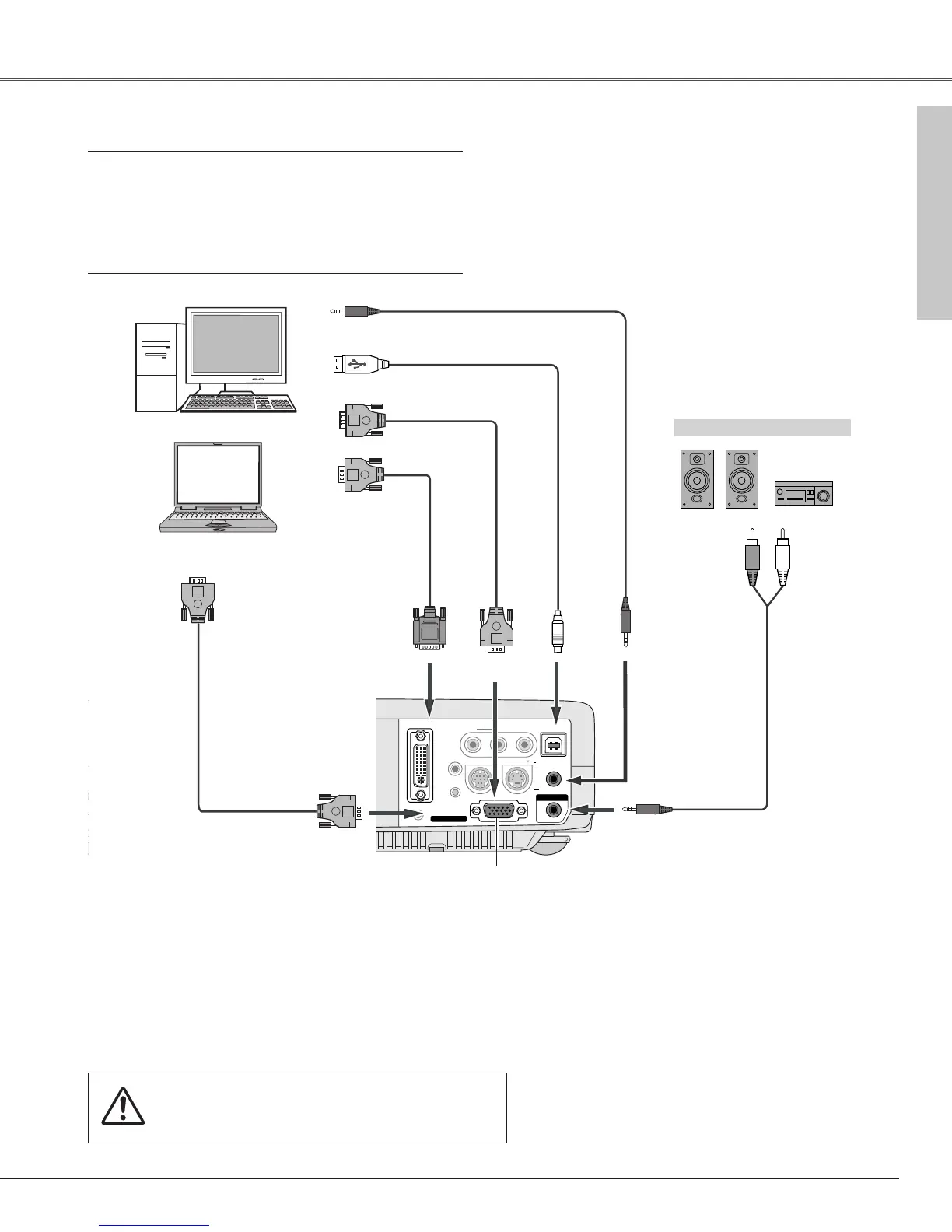

Cables used for connection
• VGA Cable (HDB 15 pin) ✽
• DVI-VGA Cable (HDB 15 pin)
• USB Cable
• Audio Cables (Mini Plug: stereo)
✽
(✽ = Not supplied with this projector.)
External Audio Equipment
VGA cable ✽
USB cable
Audio cable (stereo) ✽
Audio cable ✽
(stereo)
Monitor Output
USB port
Audio Output
COMPUTER IN 1 DVI-I
USB
COMPUTER/ COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output. (See Page 44.)
VGA cable ✽
Monitor Input
COMPUTER IN 2/ COMPONENT
IN/ MONITOR OUT
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
DVI-VGA cable
Monitor Output
COMPUTER IN 2/ COMPONENT
IN/ MONITOR OUT
