8
Bottom
Back

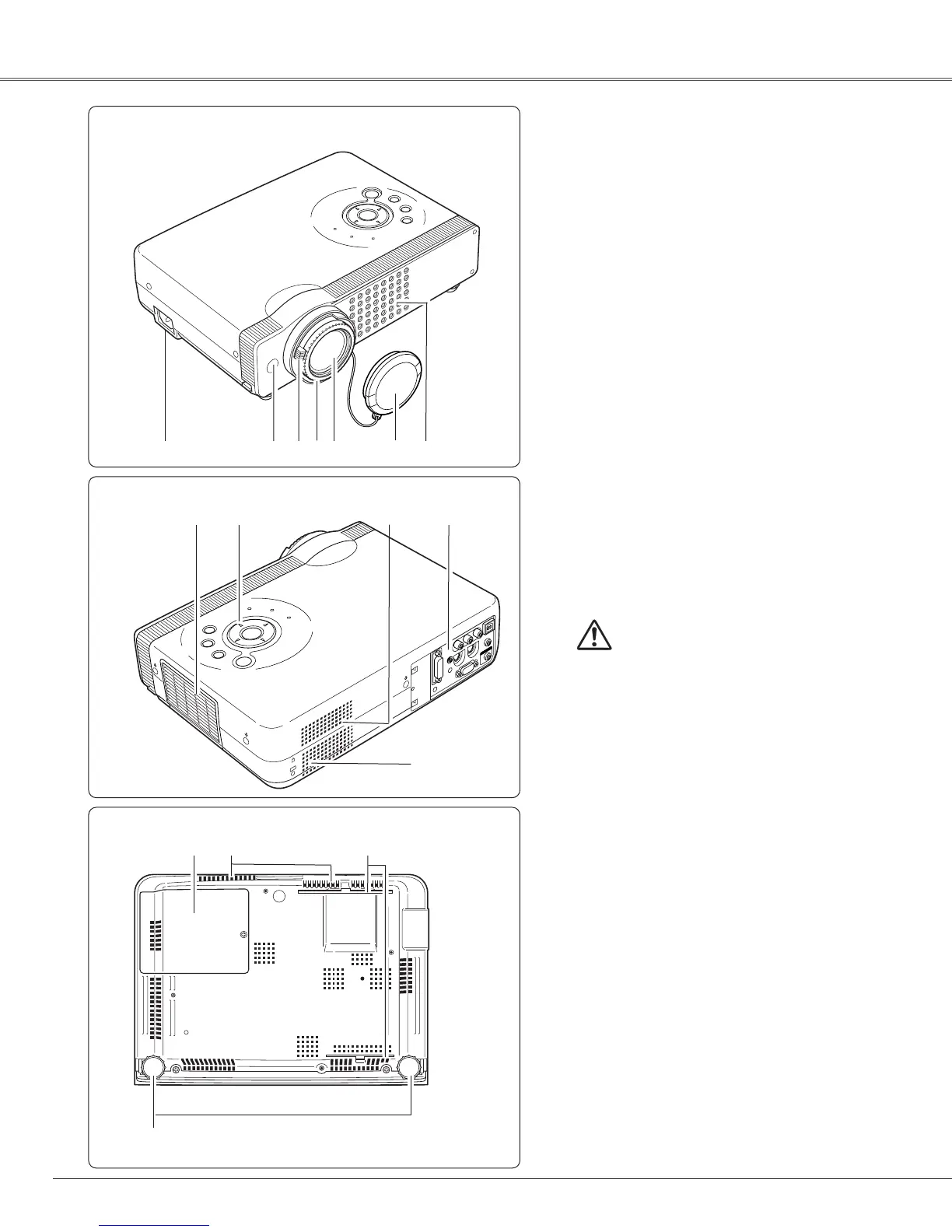

q Power Cord Connector
w Infrared Remote Receiver
e Zoom Lever
r Focus Ring
t Projection Lens
y Lens Cover (See page 50 for attaching.)
u Air Intake Vent
i Top Controls and Indicators
o Air Intake Vent
!0 Terminals and Connectors
!1 Speaker
!2 Lamp Cover
!3 Air Intake Vent (back and bottom)
!4 Air Filter
!5 Adjustable Feet
!6 Exhaust Vent
!6
i
!5
!2 !4!3
o
!1
!0
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
q w e r t y u
Front
Part Names and Functions
