- 32 -
8

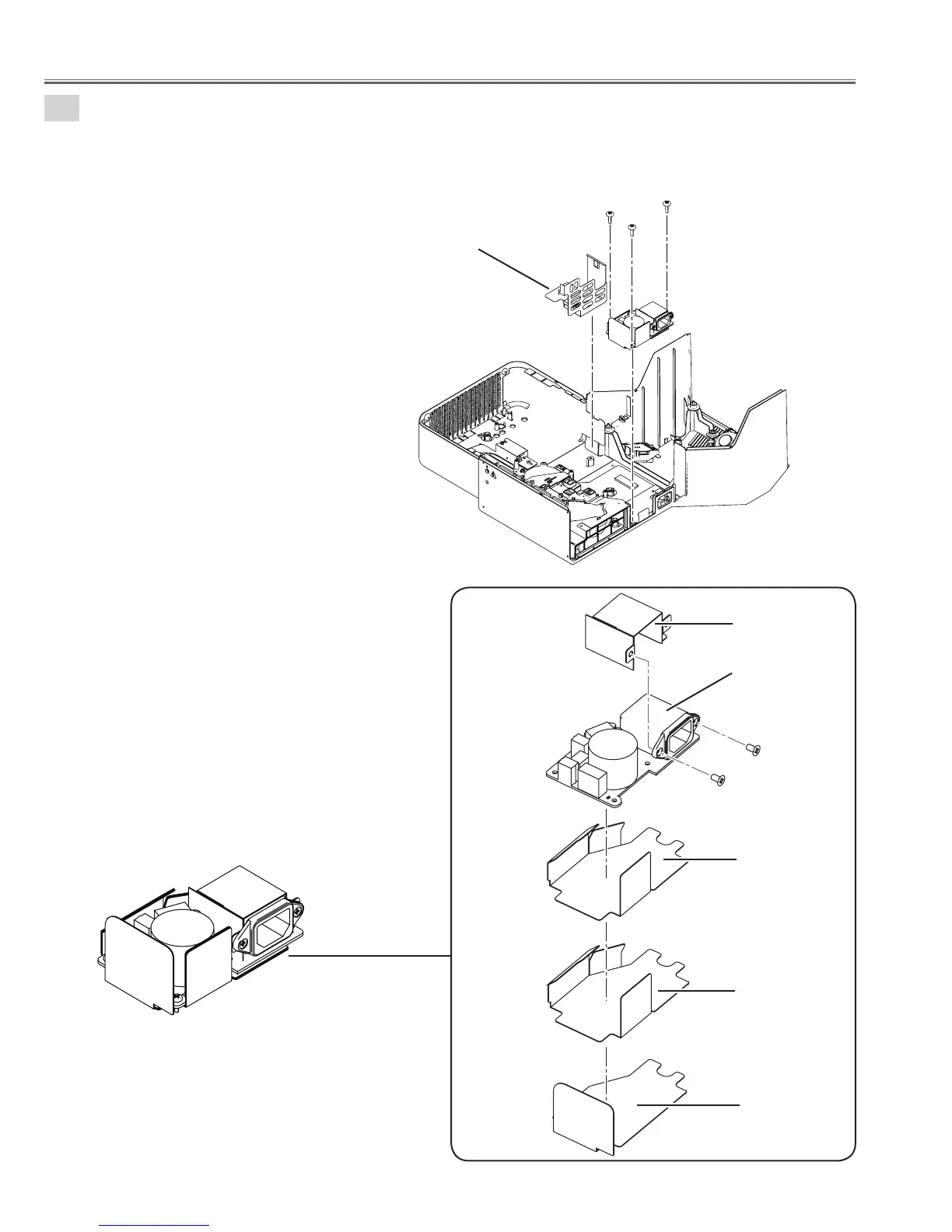

Line filter board removal.
1. Remove the 3 screws-A(T3x8) and remove the Line filter board ass'y.
2. Remove the Shield plate.
A
Line lter board ass'y
M3x6
Line lter board ass'y
Shield plate
A
A
M3x6
Holder
InsulatIion sheet
AC-A
InsulatIion sheet
AC-B
InsulatIion sheet
AC-C
Line lter board
Mechanical disassemblies
