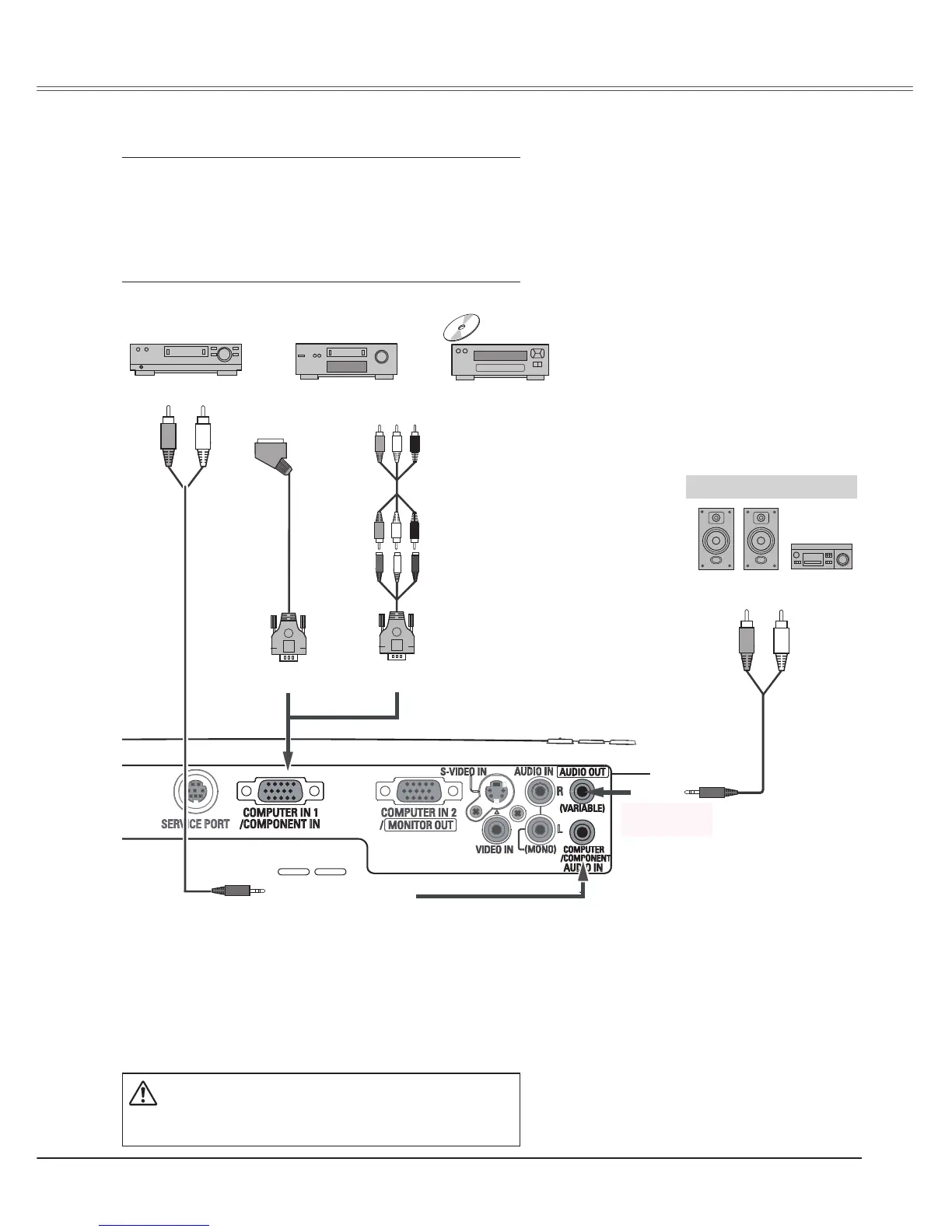

Connecting to Component Video Equipment
Cables used for connection
• Audio Cables (Mini Plug :stereo)
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
( Cables are not supplied with the projector.)
External Audio Equipment
COMPUTER IN 1/COMPONENT IN
COMPUTER/
COMPONENT
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart
21-pin Output
Audio Output
Scart-VGA
cable
Component-VGA
cable
AUDIO OUT
(stereo)
Component
cable
✔ Note:
• When connecting AUDIO OUT to external audio
equipment, the projector's built-in speaker is
disconnected.
• See page 64 for ordering optional parts.
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting cables.
