9
Part Names and Functions
Part Names and Functions

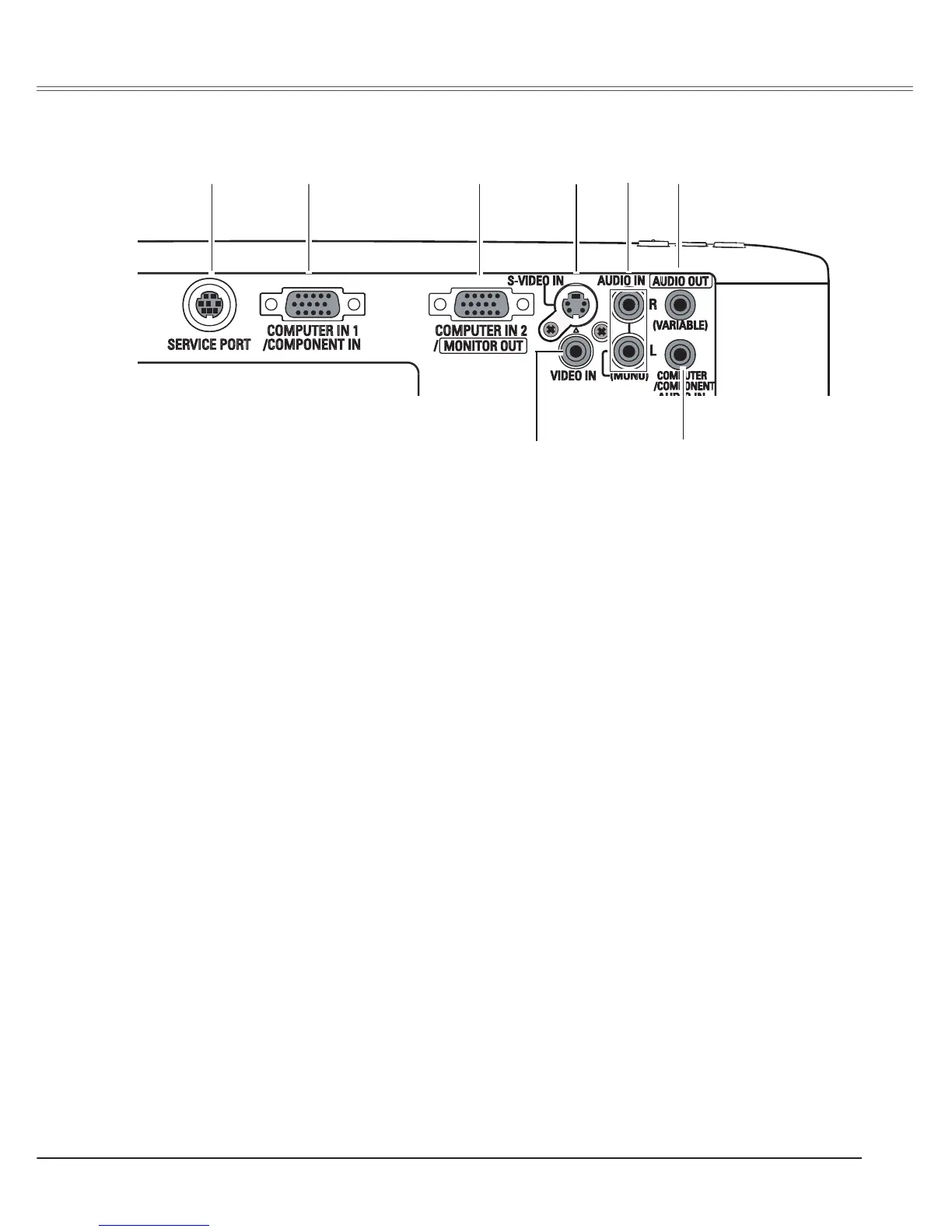

Rear Terminal
e COMPUTER IN 2 / MONITOR OUT
This terminal is switchable and can be
used for input from a computer or output
the incoming RGB analog signal from
C O M P U T E R I N 1 / C O M P O N E N T I N
terminal to the other monitor.
Set the terminal up as either Computer
input or Monitor output properly. (Used
for Monitor out, this terminal outputs only
incoming signal from COMPUTER IN 1/
COMPONENT IN terminal.) (p15, 17, 47)
q SERVICE PORT
This jack is used to service the projector.
w COMPUTER IN 1/COMPONENT IN
Connect output signal from a computer,
R G B s c a r t 2 1 - p i n v i d e o ou t p u t , o r
component video output to this terminal.
(p15, 17)
When the cable is of the longer variety, it
is advisable to use this terminal and not
COMPUTER IN 2/MONITOR OUT.
r S-VIDEO IN
Connect the S-VIDEO output from video
equipment to this jack. (p16)
t AUDIO IN
Connect the audio output from video
equipment connected to r or i to this
jack. (When the audio output is monaural,
connect it to L (MONO) jack.) (p.16)
u COMPUTER/ COMPONENT AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to
w or e to this jack. (p15, 17)
i VIDEO IN
Connect the composite video output from
video equipment to VIDEO jack. (p16)
y AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this
jack. (p15 - 17)
This terminal outputs sound from AUDIO IN
terminal (t or u).
i u
q
w e r t y
