-15-
■ Optical Parts Disassemblies
Before Taking this procedure, remove Cabinet Top and Main board following to the “Mechanical
Disassemblies”.
Disassembly requires a 2.0mm hex wrench and a screwdriver.
1.

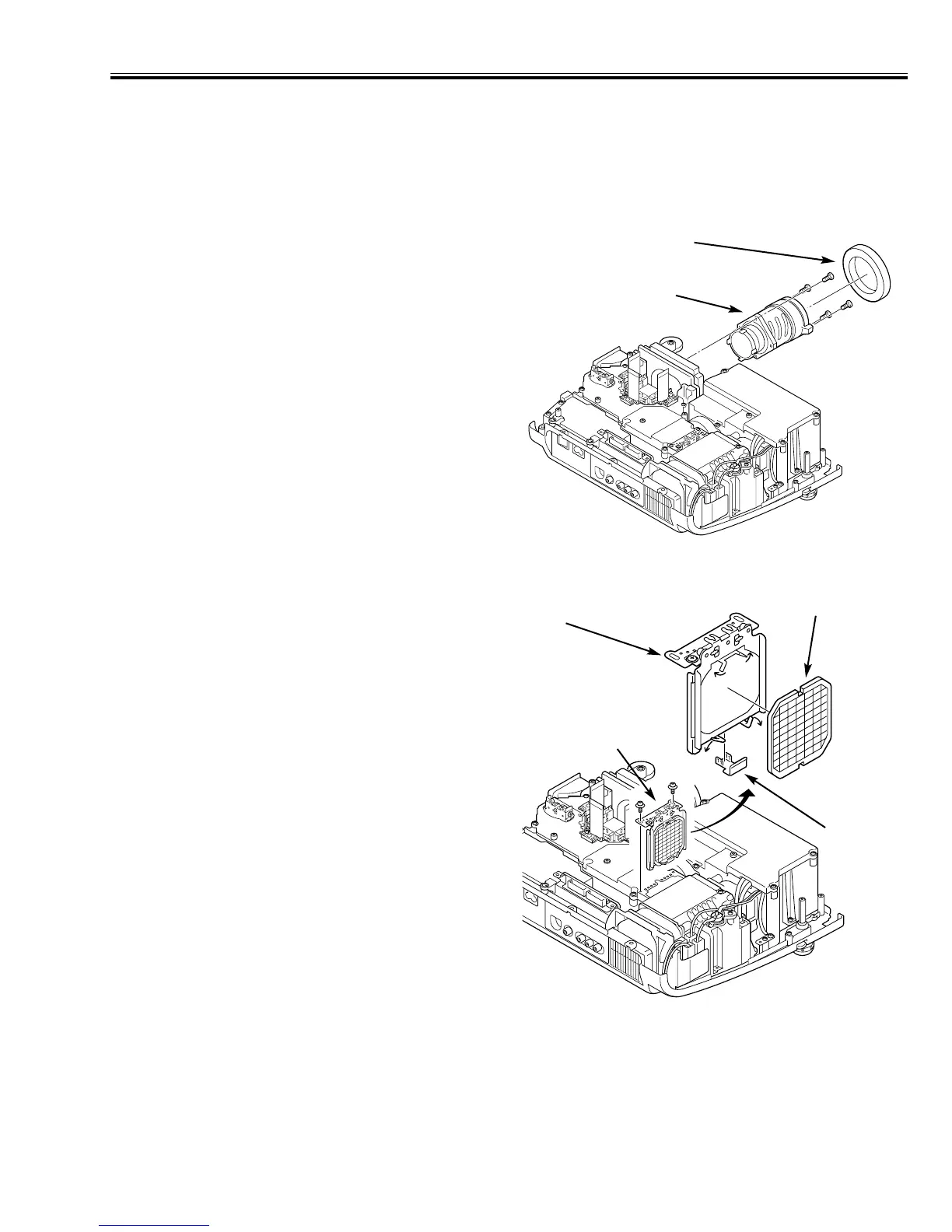

PROJECTION LENS REMOVAL
1. Remove the Cabinet Front following to “CABINET -
FRONT REMOVAL” on “Mechanical Disassemblies”.
2. Remove four screws to take the Projection Lens with
Cushion Ring off.
Fig. 1
Projection Lens
Cushion Ring
2. INTEGRATOR LENS REMOVAL
1. Remove two screws and pull the Integrator Lens Ass’y
upward.
2. Remove the Stopper and bend four hooks and then
take the Lens off from the Holder.
Integrator Lens
Stopper
Lens Holder
Fig. 2
Integrator Lens Ass’y
Note:
Should be placed the lens as the rugged surface side
of it comes to the holder side.
To Next Page
