-19-
■ Optical Adjustment
Before taking optical adjustments below, remove the Cabinet Top and Main Board following to the “Mechanical
Disassemblies”
Adjustments require a 2.0mm hex wrench and a slot screwdriver. When you adjust Integrator lens or Relay lens
adjustment, you need to disconnect some connectors and FPC cables of LCD panels on the main board.
Note:
1. Do not disconnect connectors K56M, K56N, K48K, K8E, K8H, K66A, K66B, K66C, K66D and K66F on the main
board, because the projector can not turn on or operate properly for adjustment.
2. In case of adjusting without the cabinet top, the setting for Fan Control is needed specially as shown below.
(Refer to “Electrical Adjustment” to enter the service mode and adjust.) After servicing, set to previous data.
Adjustment Item: No. 51
Adjustment Data: “0” (With Cabinet Top) ➞ “1” (Without Cabinet Top)
[Before Adjustment]
- Input a 100% of black raster signal.
[R/G/B-CONTRAST ADJUSTMENT]

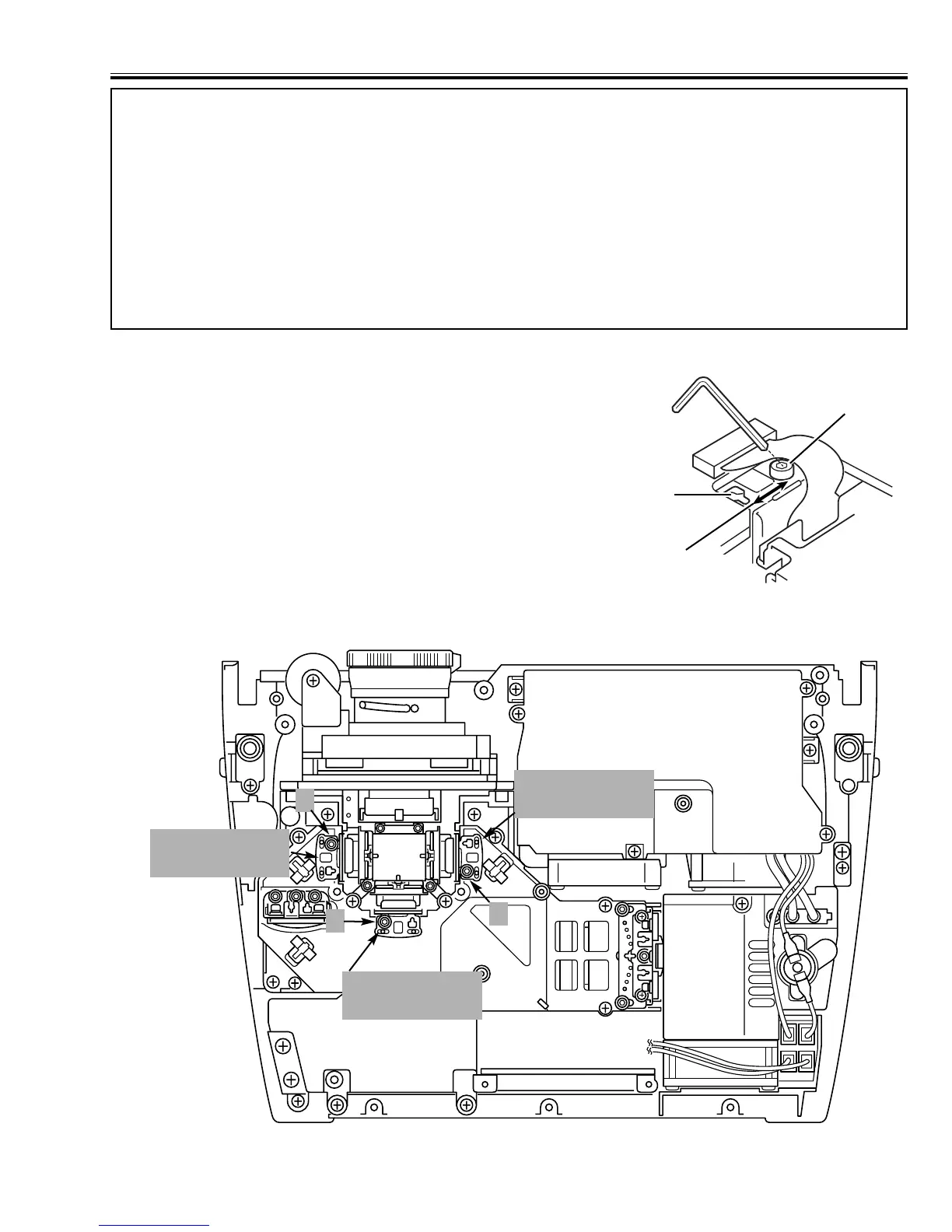

1. Loosen a screw A on the polarized glass mounting base which
you intend to adjust.
2. Turn the polarized glass mounting base as shown in Fig. 1 to
obtain the darkest brightness on the screen.
3. Tighten the screw A to fix the polarized glass mounting base.
Repeat steps 1 to 3 for remaining polarized glasses.
Slot B
Polarized Glass
Mounting Base
A
1. CONTRAST ADJUSTMENT
Fig. 1
B-Polarized Grass
Mounting Base
A
G-Polarized Grass
Mounting Base
A
R-Polarized Grass
Mounting Base
A
Fig. 2
To Next Page
