Sanyo VM-RZ2R User Manual

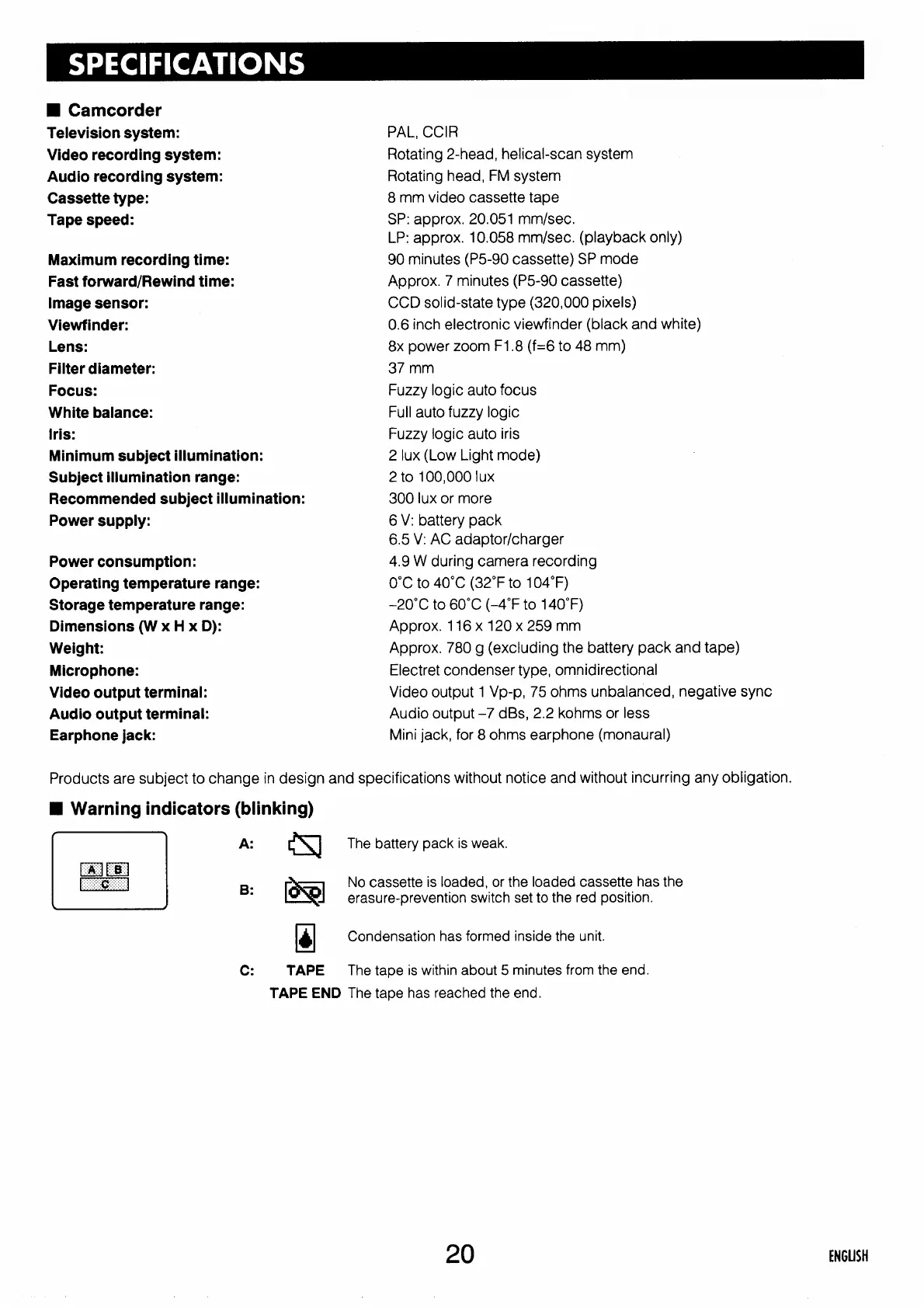

SPECIFICATIONS
E Camcorder
Television system:
Video recording system:
Audio recording system:
Cassette type:
Tape speed:
Maximum recording time:
Fast forward/Rewind time:
Image sensor:
Viewfinder:
Lens:
Filter diameter:
Focus:
White balance:
Iris:
Minimum subject illumination:
Subject illumination range:
Recommended subject illumination:
Power supply:
Power consumption:
Operating temperature range:
Storage temperature range:
Dimensions (W x H x D):
Weight:
Microphone:
Video output terminal:
Audio output terminal:
Earphone jack:
PAL, CCIR
Rotating 2-head, helical-scan system
Rotating head, FM system
8 mm video cassette tape
SP: approx. 20.051 mm/sec.
LP: approx. 10.058 mm/sec. (playback only)
90 minutes (P5-90 cassette) SP mode
Approx. 7 minutes (P5-90 cassette)
CCD solid-state type (320,000 pixels)
0.6 inch electronic viewfinder (black and white)
8x power zoom F1.8 (f=6 to 48 mm)
37 mm
Fuzzy logic auto focus
Full auto fuzzy logic
Fuzzy logic auto iris
2 lux (Low Light mode)
2 to 100,000 lux
300 lux or more
6 V: battery pack
6.5 V: AC adaptor/charger
4.9 W during camera recording
0°C to 40°C (32°F to 104°F)
~20°C to 60°C (-4°F to 140°F)
Approx. 116 x 120 x 259 mm
Approx. 780 g (excluding the battery pack and tape)
Electret condenser type, omnidirectional
Video output 1 Vp-p, 75 ohms unbalanced, negative sync
Audio output -7 dBs, 2.2 kohms or less
Mini jack, for 8 ohms earphone (monaural)
Products are subject to change in design and specifications without notice and without incurring any obligation.
E Warning indicators (blinking)
C: TAPE
The battery pack is weak.
No cassette is loaded, or the loaded cassette has the
erasure-prevention switch set to the red position.
Condensation has formed inside the unit.
The tape is within about 5 minutes from the end.
TAPE END The tape has reached the end.
20 ENGLISH
