27
AK - 44
CHASSIS
14.3.4 IF Adjustment
Select IF1, IF2, IF3 or IF4. When the blue button (14) is pressed the before selected IF register is automatically
adjusted.
14.4 Auto Programming System Set Up
1. Description
In case the TV set should be serviced, there is the possibility of returning the set with the A.P.S. (Auto Programming

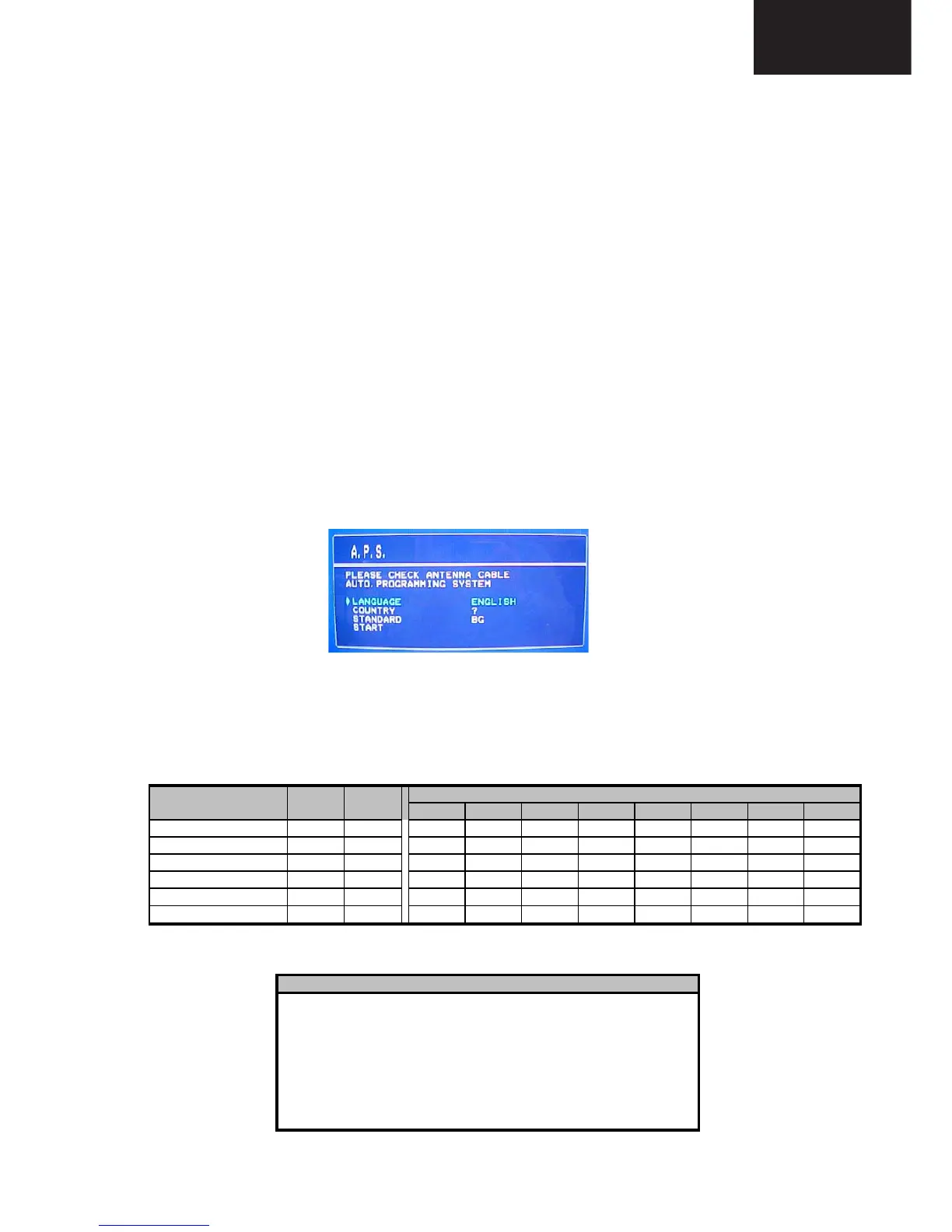

System) activated in order to make easy the first start up to the customer. See the below figure.
If this Feature is activated the Picture and Sound Menus will be automatically memorized to the default values.
2. Before start
It is necessary let the TV set in the program number that will appear for the first time, because the A.P.S does not
preset this selection.
3. Procedure
3.1 Enter the Service Mode. See Page 23.
3.2 Access to TXT1 Register by CURSOR UP / DOWN.
3.3 Press 7 button on the remote control in order to activate the Auto Programming System.
3.4 Exit the Service Mode by the Menu button (30).
3.5 Switch the TV off using the mains switch.
15. OPTION LIST
15.1 Service Registers Updating regarding the Tuner
AK30 PLL TUNER SETTINGS
VHF1-VHF3 VHF3-UHF
Frq. (Mhz) Frq. (Mhz) F1H F1L F2H F2L BS1 BS2 BS3 CB
Philips UV1316S MK3 156,25 MHz 441,25 MHz 00001100 00110010 00011110 00000010 00000001 00000010 00000100 10001110
Thomson CTT5020 114,25 MHz 401,25 MHz 00001001 10010010 00011011 10000010 00000011 00000110 10000101 10001110
Samsung TECC2949PG28B 170,25 MHz 465,25 MHz 00001101 00010010 00011111 10000010 00000001 00000010 00000100 10001110
Samsung TECC2949PG35B 170,25 MHz 449,25 MHz 00001101 00010010 00011110 10000010 00000001 00000010 00001000 10001110
Alps TEDE9X226A 142,25 MHz 425,25 MHz 00001011 01010010 00011101 00000010 00000001 00000010 00001000 10001110
Alps TEDE9-004A 149,25 MHz 424,25 MHz 00001011 11000010 00011100 11110010 00000001 00000010 00001000 10001110
AK44 SERVICE MENU ITEMS
F1H High byte of VHF1-VHF3 cross-over frequency
F1L Low byte of VHF1-VHF3 cross-over frequency
F2H High byte of VHF3-UHF cross-over frequency
F2L Low byte of VHF3-UHF cross-over frequency
BS1 Band switching byte for VHF1
BS2 Band switching byte for VHF3
BS3 Band switching byte for UHF
CB Control byte
Explanations
