LC-19LE510

LC-22LE510

LC-24LE510

9. CI INTERFACE

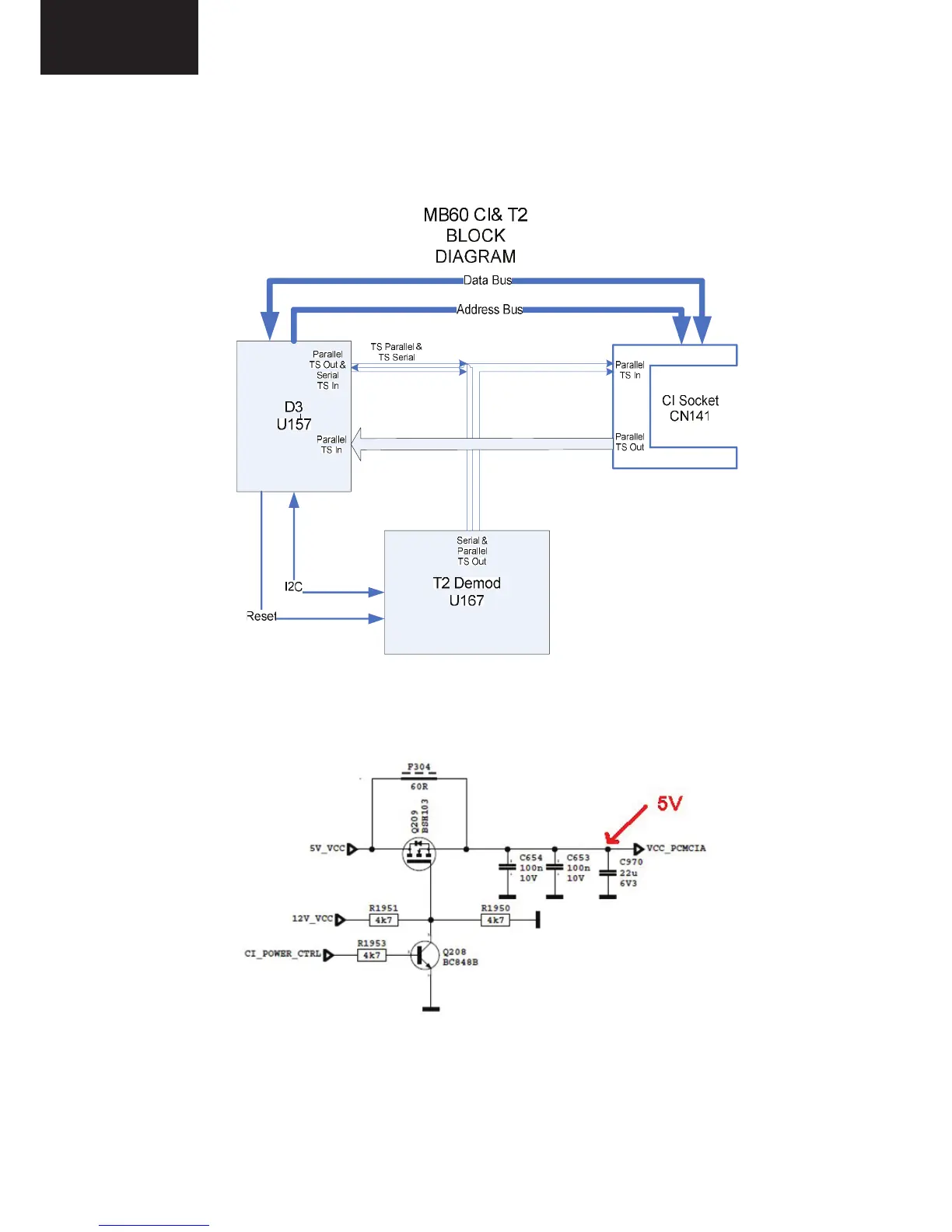

9.1 Block Diagram

9.2 CI Interface Power Switch

It is used for CI module supply, when Module is inserted (it means CI detect is low) This circuit is opened or

closed by CI_POWER_CTRL port of main μController

Default Chapter2
- Table of Contents2
- Electrical Specifications6
- Specifications6
- Important Service Safety Precautions9
- Operation Manual12
- Dimensions18
- Dimensional Drawings19
1 Introduction21
- General Block Diagram22
- MB60 Placement of Blocks23
2 Tuner(Tu102)24
- Circuit Descriptions24
- Features of DTOS403LH122X25
- General Description of Samsung DTOS403LH122X25
- Pinning26
3 SAW FILTER - Audio - Epcos K9656M(Z101)27
- Standard27
- Features27
- Pin Configuration27
- Frequency Response28
4 SAW FILTER - Video - Epcos K3958M(Z102)29
- Standard29
- Features29
- Pin Configuration29
- Frequency Response30
5 Audio Amplifier Stage with Azad2102(U163, U164)31
- General Description31
- Features31
- Absolute Ratings32
- Electrical Characteristics32
- Operating Specifications33
- Pinning34
6 Audio Amplifier Stage with Tpa3113(U168)35
- General Description35
- Features35
- Absolute Ratings35
- Electrical Characteristics35
- Operating Specifications36
- Pinning36
7 Power Stage37
- Short CCT Protection Circuit39
- Power Management40
8 Microcontroller - Mstar(U157)42
- General Description42
- General Features42
- MSTAR Block Diagram47
- Reset Circuit47
101 CI Interface48
- Block Diagram48
- CI Interface Power Switch48
10 Usb Interface49
11 Ddr2 Sdram 8M × 4 Banks × 16 Bit (W9751G6Jb) (U154, U155)50
- General Description50
- Features50
- Electrical Characteristics50
- Pinning51
12 Scaler and Lvds Sockets53
- LVDS Sockets Block Diagram53
- Panel Supply Switch Circuit53
13 Nand Flash Memory - Mx25L1005 (U158)55
- General Description55
- Features55
- Absolute Maximum Ratings55
- Pinning55
14 Nand Flash Memory - Nand512Xxa2C (U162)56
- General Description56
- Features56
- Pinning57
15 USB2.0 to Fast Ethernet - ASIX AX88X72A (U171)58
- General Description58
- Features58
- Block Diagram59
- Pinning59
16 Lm1117(U175, U180, U181)60
- General Description60
- Features60
- Applications60
- Absolute Maximum Ratings60
- Pinning60
17 Mp2012 (U176)61
- General Description61
- Features61
- Pinning61
18 Rta8283A (U23, U173)62
- General Description62
- Features62
- Pinning63
19 Mp1583 (U174)64
- General Description64
- Features64
- Pinning64
20 Fdc64265
- General Description65
- Features65
- Pinning65
21 Fdc604P66
- General Description66
- Features66
- Pinning66
22 Connectors67
- Scart (Sc1)67
- Hdmi (Cn707,Cn708)67
- Vga (Cn132)68
23 Service Menu Settings69
- Video Settings70
- Audio Settings70
- Options71
- Tuning Settings72
- Source Settings72
- Diagnostic73
- USB Operations73
24 Software Update74
25 Troubleshooting75
- No Backlight Problem75
- CI Module Problem77
- Led Blinking Problem78
- IR Problem79
- Keypad Touchpad Problems80
- USB Problems81
- No Sound Problem82
- No Sound Problem at Headphone82
- Standby On/Off Problem82
- No Signal Problem83
26 Overall Wiring Diagram85
27 Schematic Diagrams88
28 Printed Wiring Board99
29 Replacement Part List101
30 Cabinet and Mechanical Parts Listing125
- Sharp Corporation132
