59
LC-19LE510
LC-22LE510
LC-24LE510
 Supports Suspend Mode and Remote Wakeup via Link-up, Magic packet, MS wakeup frame
and external pin
 Optional PHY power down during Suspend Mode
Versatile External Media Interface
 Optional MII interface in MAC mode allows AX88172A to work with external 100BASE-FX
Ethernet PHY or HomePNA PHY
 Optional Reverse-MII or Reverse-RMII interface in PHY mode allows AX88172A to work with
external HomePlug PHY or glueless MAC-to-MAC connections
 Optional Reverse-MII interface in Dual-PHY mode allows AX88172A to act as an Ethernet
PHY or USB 2.0 PHY for external MAC device that needs Ethernet and USB in system
application
 Supports 256/512 bytes (93c56/93c66) of serial EEPROM (for storing USB Descriptors)
 Supports automatic loading of Ethernet ID, USB Descriptors and Adapter Configuration
from EEPROM after power-on initialization
 Provides optional serial interface, I2C, SPI and UART
 Integrates on-chip voltage regulator and only requires a single 3.3V power supply
 12MHz and 25Mhz clock input from either crystal or oscillator source
 Integrates on-chip power-on reset circuit

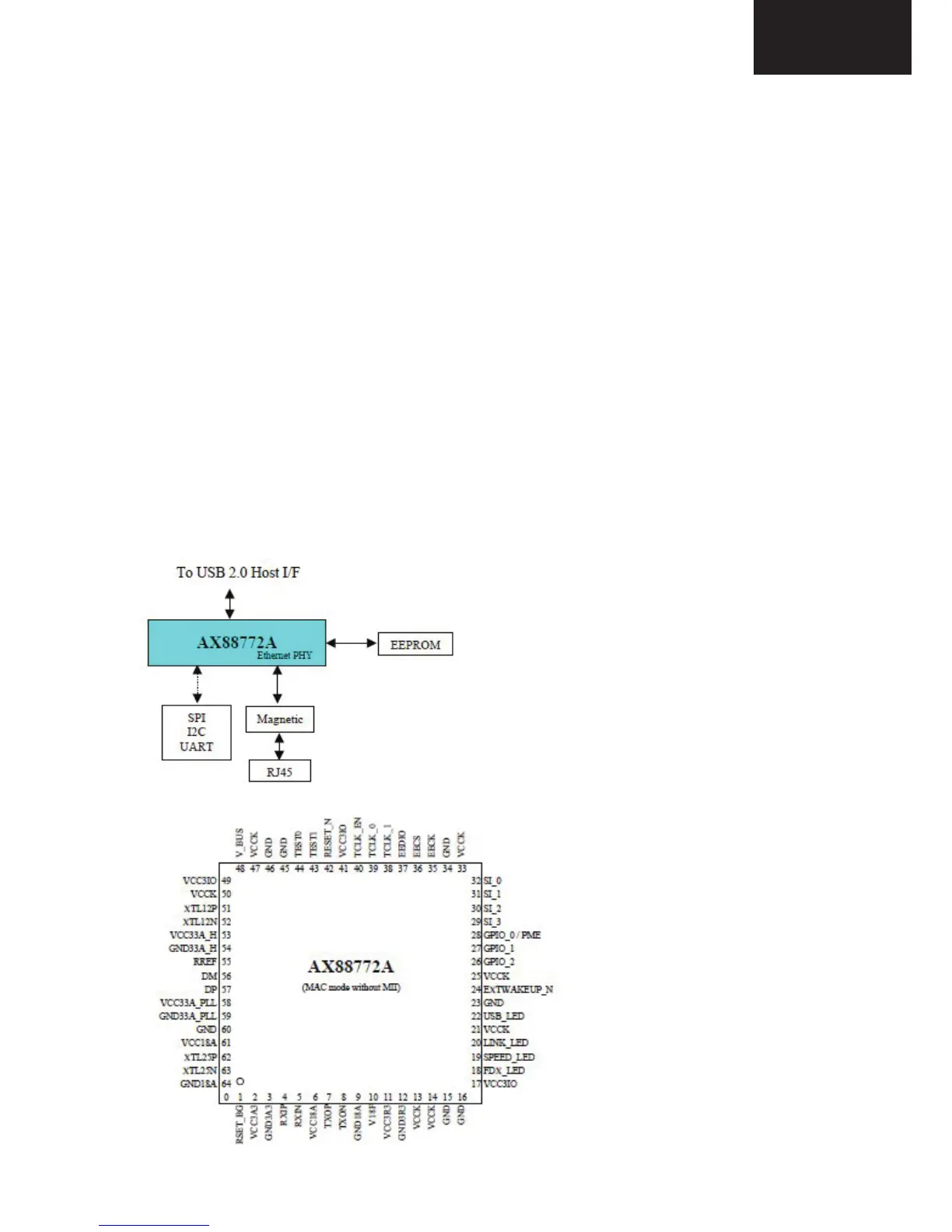

16.3. Block Diagram
16.4. Pinning
17. LM1117(U175, U180, U181)
17.1. General Description
The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It
has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117 is available in an
adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In
addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers
current limiting and thermal shutdown. Its circuit includes a zener trimmed band-gap
reference to as-sure output voltage accuracy to within ±1%. The LM1117 series is available in SOT- 223,
TO-220, and TO-252 D-PAK packages. A minimum of 10μF tantalum capacitor is required at the output to
improve the transient response and stability.
17.2. Features
 Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions
 Space Saving SOT-223 Package
 Current Limiting and Thermal Protection
 Output Current 800mA
 Line Regulation 0.2% (Max)
 Load Regulation 0.4% (Max)
 Temperature Range
 LM1117 0°C to 125°C
 LM1117I -40°C to 125°C
15.4
15.3
