17. LM1117(U175, U180, U181)
17.1. General Description
The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It
has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117 is available in an
adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In
addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers
current limiting and thermal shutdown. Its circuit includes a zener trimmed band-gap
reference to as-sure output voltage accuracy to within ±1%. The LM1117 series is available in SOT- 223,
TO-220, and TO-252 D-PAK packages. A minimum of 10μF tantalum capacitor is required at the output to
improve the transient response and stability.
17.2. Features
Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions
Space Saving SOT-223 Package
Current Limiting and Thermal Protection
Output Current 800mA
Line Regulation 0.2% (Max)
Load Regulation 0.4% (Max)
Temperature Range
LM1117 0°C to 125°C
LM1117I -40°C to 125°C
17.3. Applications
2.85V Model for SCSI-2 Active Termination
Post Regulator for Switching DC/DC Converter
High Efficiency Linear Regulators 15
32” TFT TV Service Manual 10/01/2005
Battery Charger
Battery Powered Instrumentation

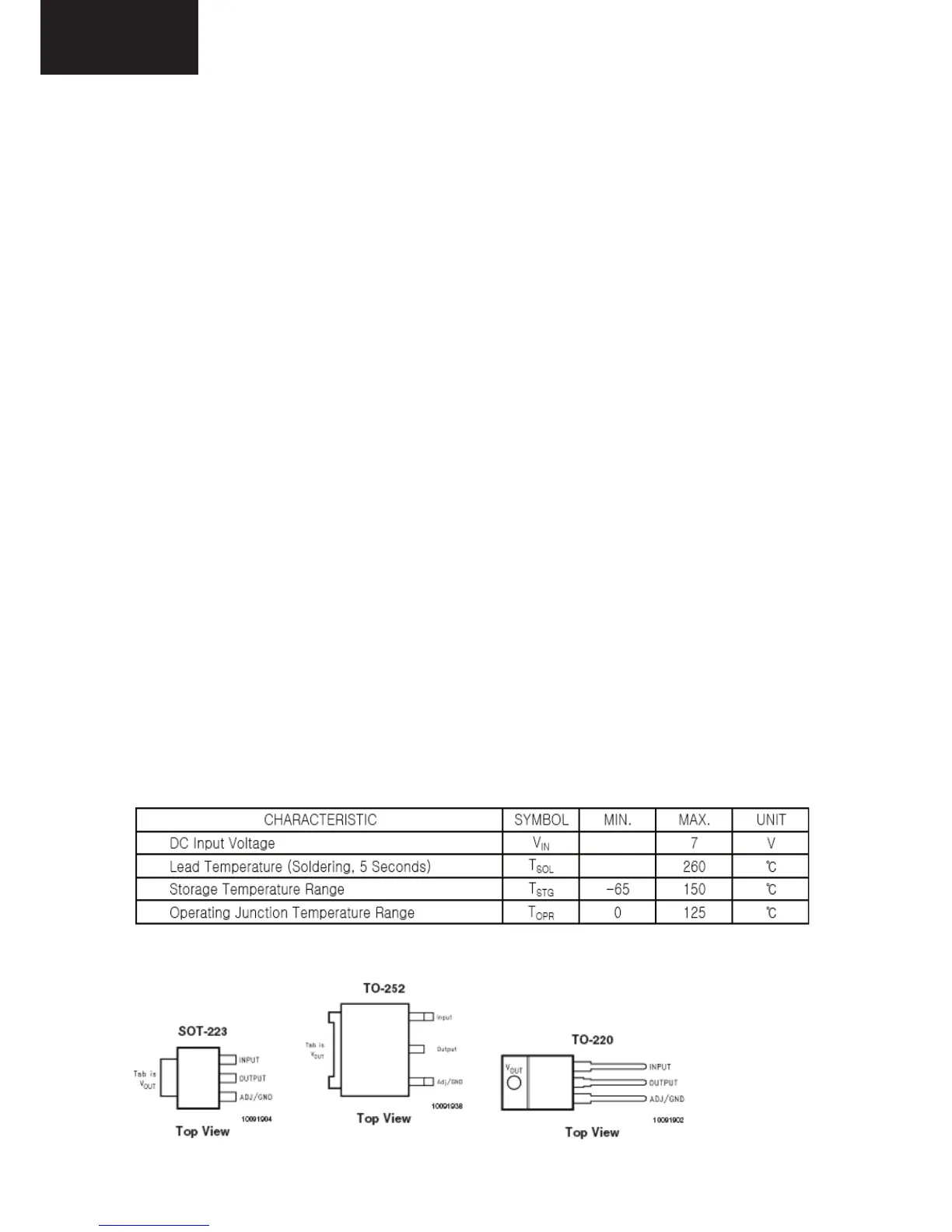

17.4. Absolute Maximum Ratings
17.5. Pinning
